Hi-Hog’s Calf Handling Alley is designed to speed up processing by guiding calves forward in a controlled, single-file flow. Once sorted into the alley, calves move ahead one at a time toward the Calf Tipping Chute for branding, tagging, vaccinating, dehorning, or castration. The alley’s narrow 18-inch width and sheeted sides help keep calves moving calmly, while intermittent tilt gates allow handlers to control the flow of animals during processing.

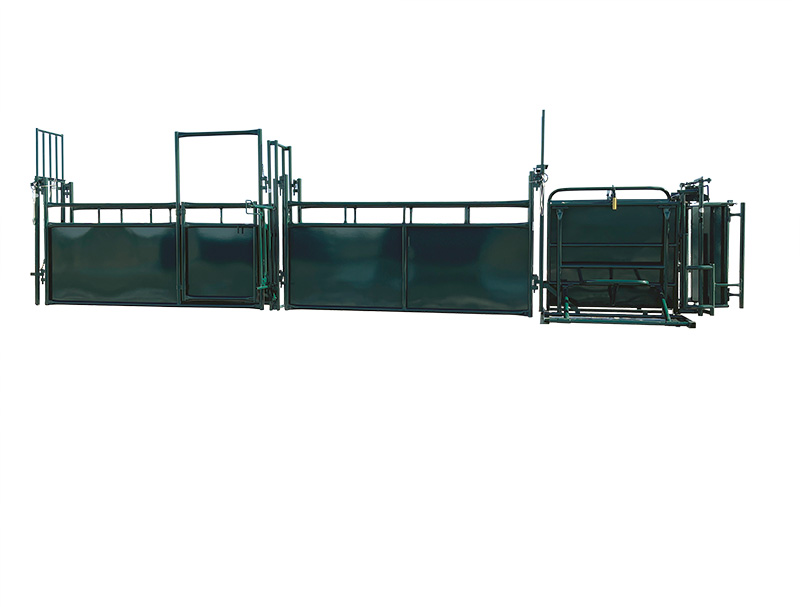

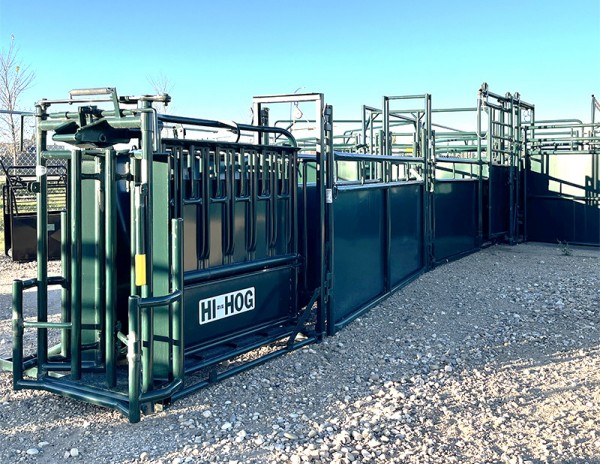

Hi-Hog Calf Alley With #55 Tipping Table
Key Design Features of the Calf Handling Alley
Narrow 18-Inch Alley Width
The 18-inch width encourages calves to move forward in a controlled single-file line, helping prevent turning or backing up during handling and branding season.
Sheeted Alley Sides
Solid sheeted sides reduce distractions and help keep calves focused on moving forward through the alley.
Intermittent Tilt Gates
Tilt gates positioned along the alley allow handlers to control the movement of calves and regulate the flow toward the processing chute.
Designed for Calf Movement
The alley is built specifically for calves, with lower panel heights than full cattle handling systems to provide appropriate control while maintaining easy access for the handler.
Compatible with Hi-Hog Handling Systems
The Calf Handling Alley connects easily with Hi-Hog system panels and alley access gates, allowing it to be incorporated into existing cattle handling layouts.

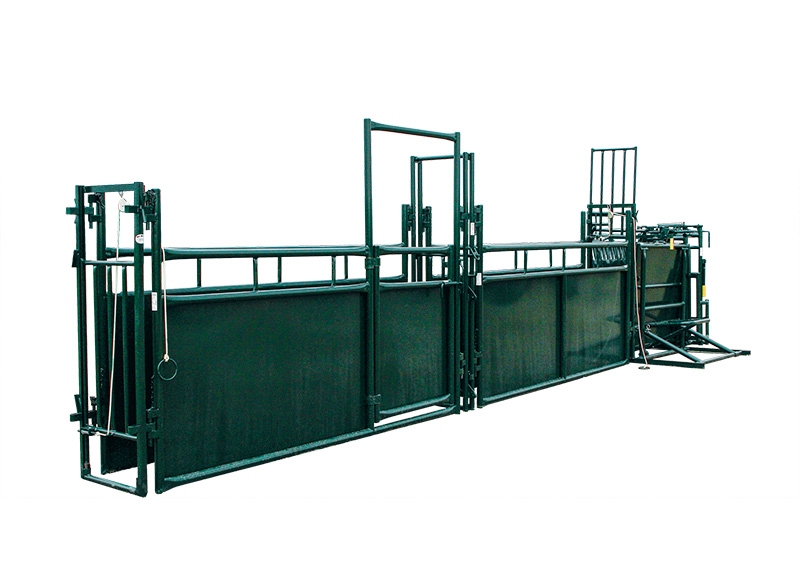

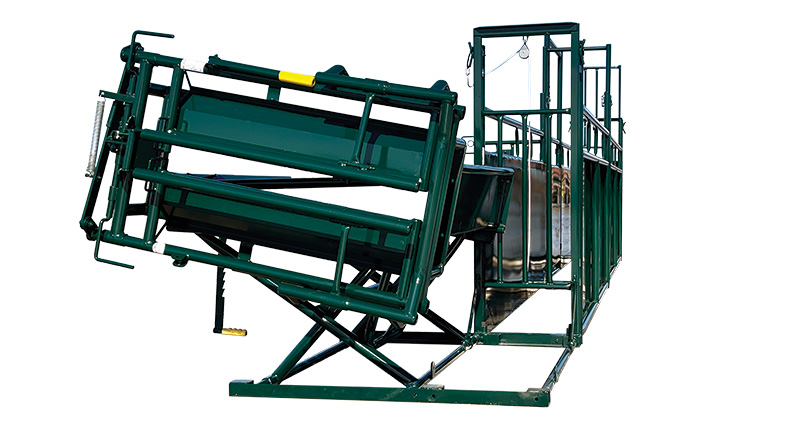

Calf Alley Panels Pin Directly to the #55 Calf Tipping Tables Fixed Rear Lift-Up Gate
Jump to our Calf Tipping Table page
Stop struggling with uncooperative calves—Hi-Hog’s Calf Tipping Table does the hard work for you. Its secure design minimizes movement, ensuring both the handler and animal stay safe during processing.

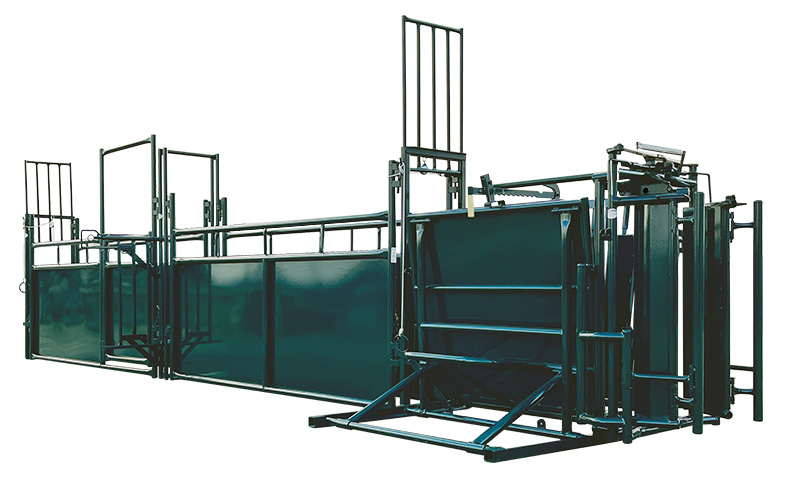

The Lift Up Rear Gate On the Tipping Table Remains Upright
The tipping motion is smooth and controlled, preventing sudden jolts that could stress the animal or handler.

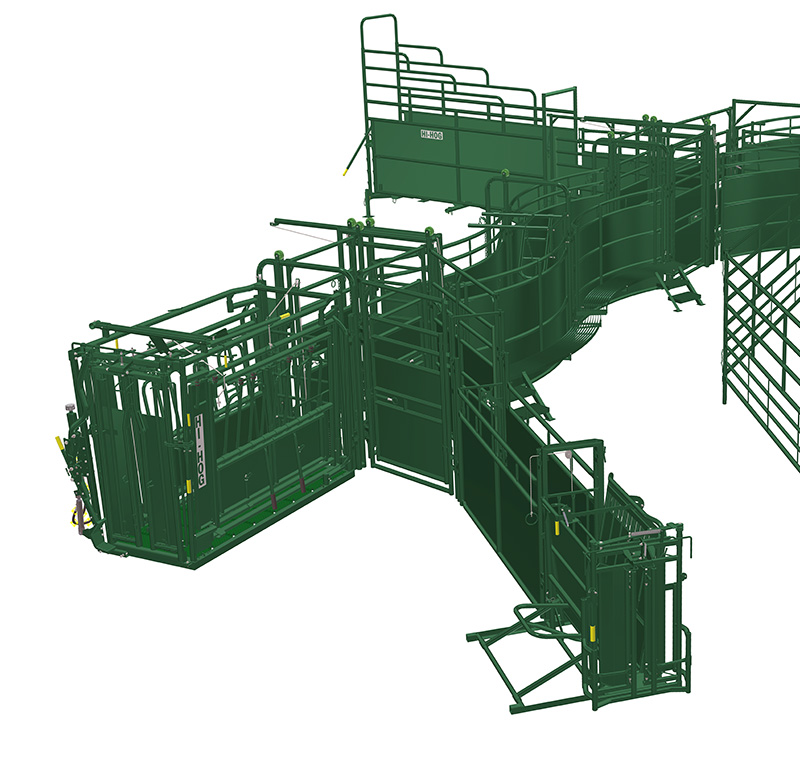

The Calf Handling Alley Connects With All Hi-Hog Systems
Calf Handling Alley Parts
Calf Alley Parts
| ITEM # | DESCRIPTION | WEIGHT (LBS) |
| 59 | 18" Non-Adjustable Calf Alley Lift Up Gate | 47 |
| 60 | 18" Non-Adjustable Calf Alley Tilt Gate | 57 |
| 3330 | 18" Non-Adjustable Calf Alley Spreader | 29 |
| 243 | 9'-3" x 4' Calf Alley Panel | 129 |
| 244 | 9'-3" x 4' Calf Alley Panel with Access Gate | 152 |
Add convenience to your calf handling with Hi-Hog's calf alley. Choose from three 18" wide calf alley spreaders.
- Calf alley spreader with lift up gate (item 59), includes a rope to operate the gate without standing beside the gate.
- Calf alley spreader with side tilt gate (item 60) provides more height for those who wish to push the calves in the alley.
- Calf alley spreader - plain (item 3330).
Plan view of a typical Hi-Hog calf alley
Time is money in the farming industry. Hi-Hog's Calf Alley and Calf Tipping Table are designed to optimize your workflow, saving you valuable time so you can focus on what matters most.
The sheeted side panels help to keep your calves focused on the path forward while keeping nose and toes safely inside. The sheeted panels are low enough for you to easily reach your calves.
Hi-Hog's Calf Alley and Calf Tipping Table are customizable to suit your specific requirements.
Our Common Connector System allows you to add a complete calf alley to any system. Get the equipment that fits your operation perfectly!
Specs

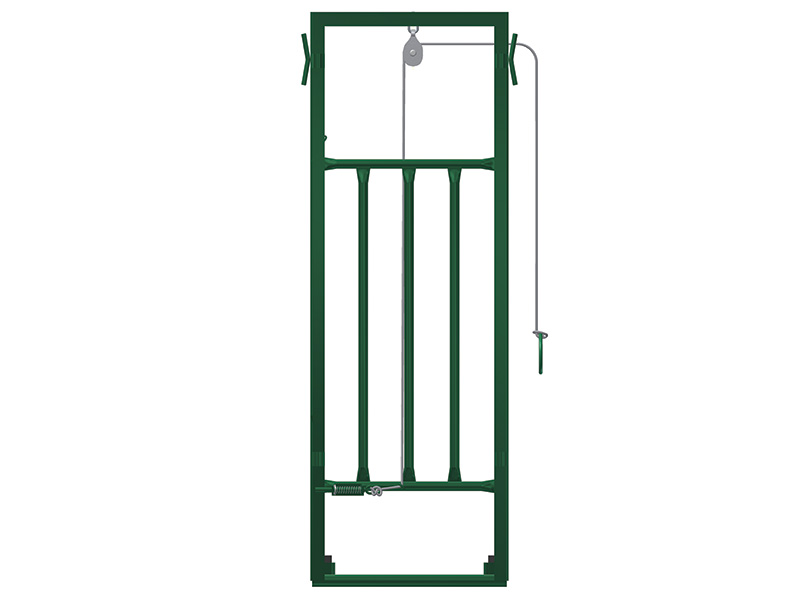

Item #59
- 47.5” interior clearance height with gate raised
- 18” wide inside
- 60” frame height with gate closed
- 83” frame height with gate raised and locked
- 90” clearance height required to raise gate
- Gate locks open and closed
#59 Calf Alley Lift-Up Gate

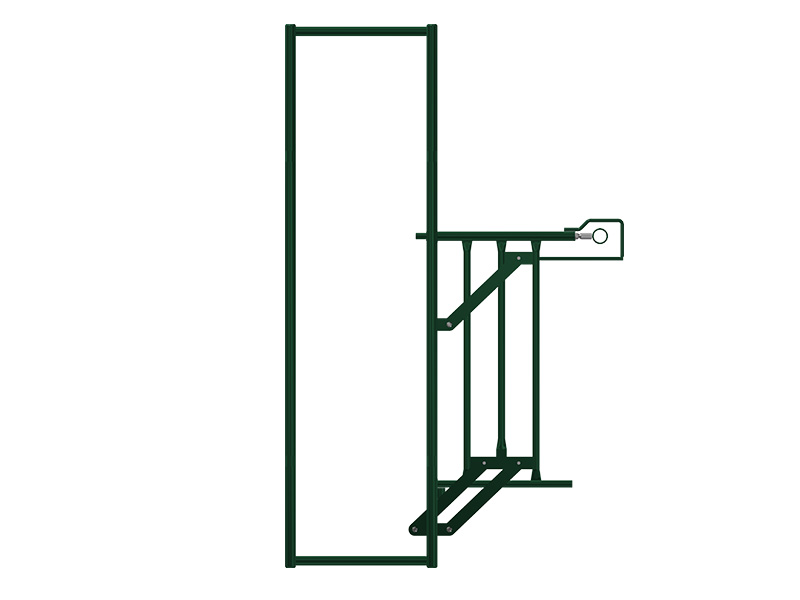

Item #60
- 70.25” interior clearance height
- 18” wide inside
- 72” frame height
- 22.5” clearance required on side of alley to open tilt gate
- Gate locks open and closed

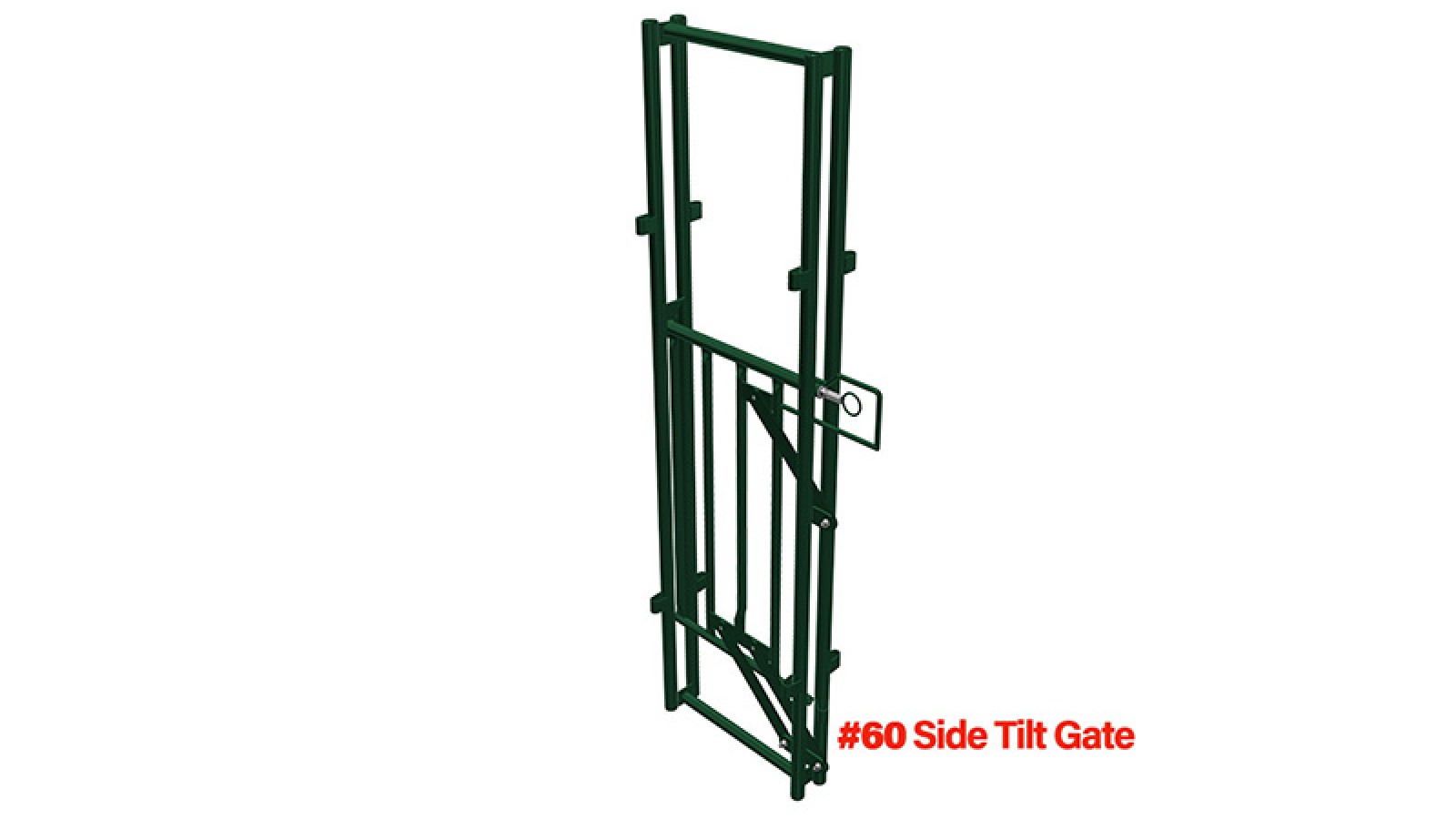

#60 Calf Alley Side-Tilt Gate
Item #3330
- 78.1” interior clearance height
- 18” wide inside
- 80” frame height

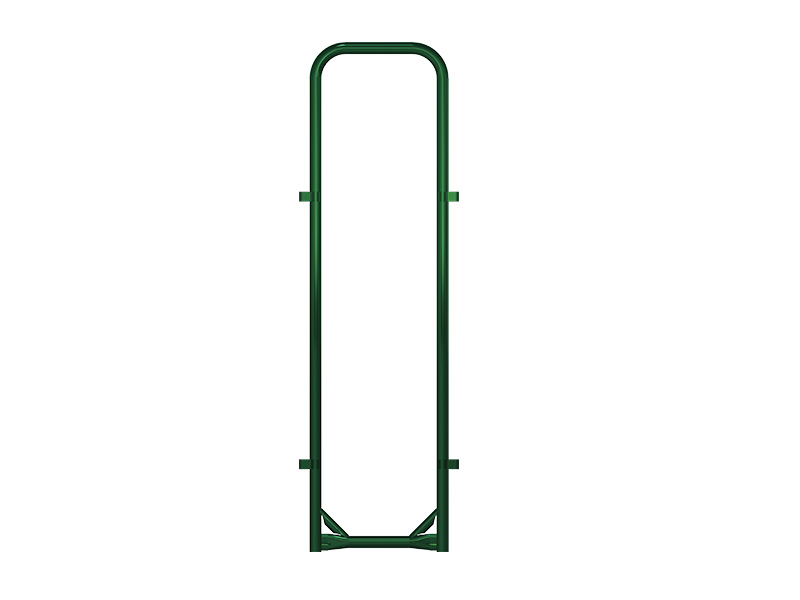

#3330 Calf Alley Interior Spreader

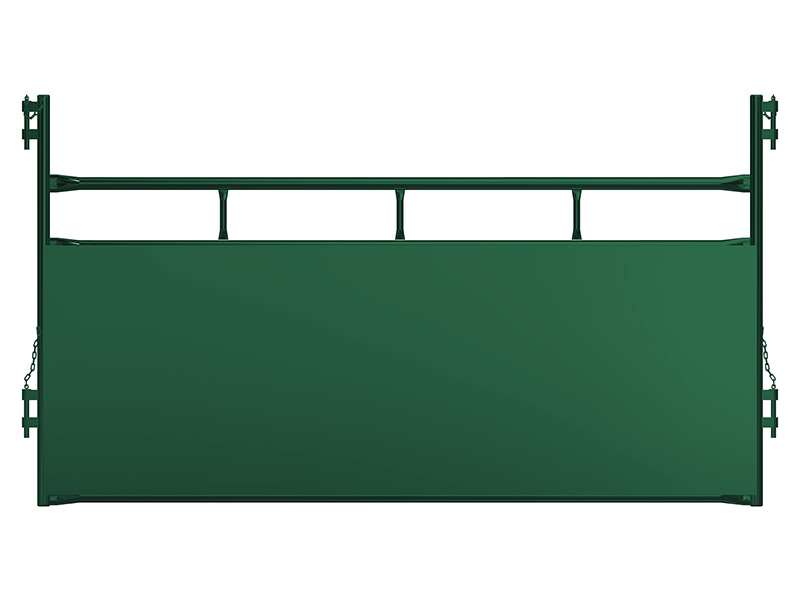

Item #243
- Calf Alley Panel
- 110" to outside of connectors
- The common connectors match up to other system panels. Perfect for Wand Preg Checking
- 48" high
#243 Sheeted Calf Alley Panel 48" High
Item 244
- Calf Alley Panel with access gate
- 110" to outside of connectors
- 48" high panel

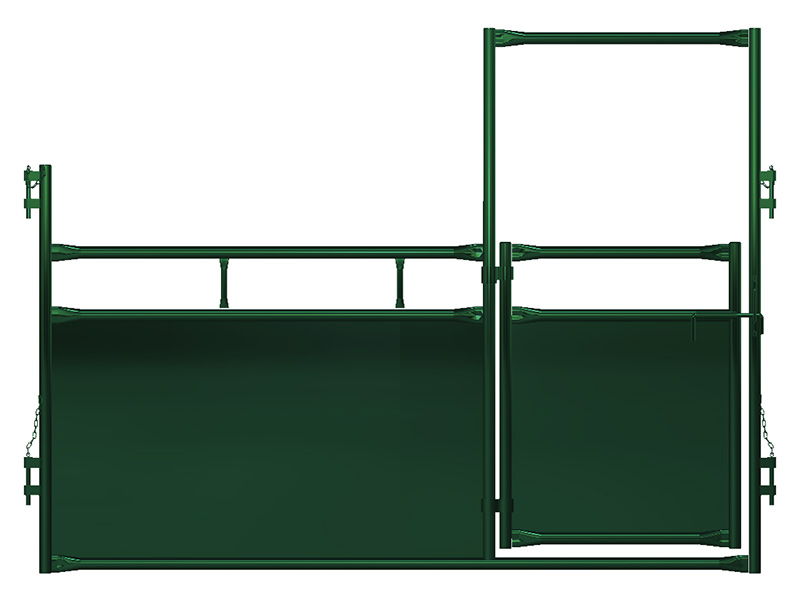

#244 Calf Alley Panel With Access Door
The calf alley is most commonly used to direct calves to a calf tipping table (item 55) or to a loading chute (item 75, or 76). This alley can also be used for other small stock like sheep and goats.

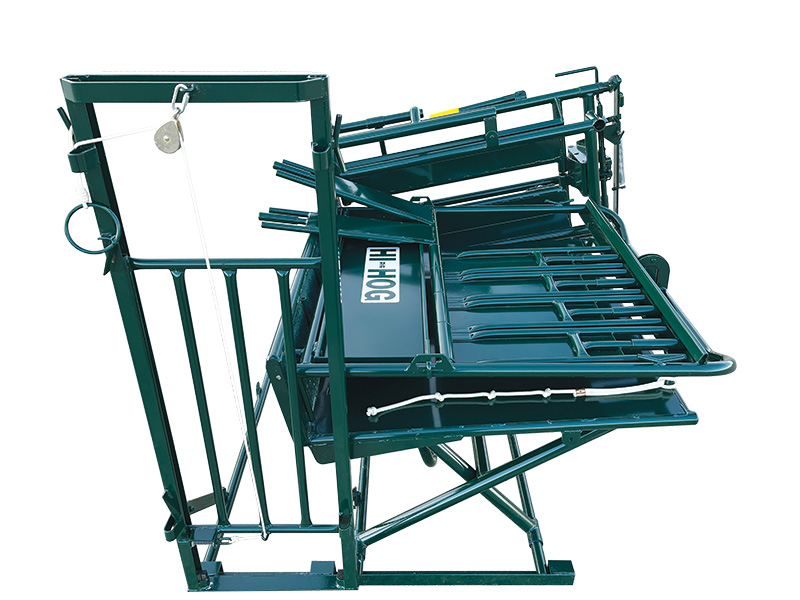

#55 Calf Tipping Table / Calf Chute
Jump to Hi-Hog's Calf Tipping Table Page
The attached Lift Up Gate on the #55 Calf Tipping Table remains in the fixed, upright position, during the tipping action.
