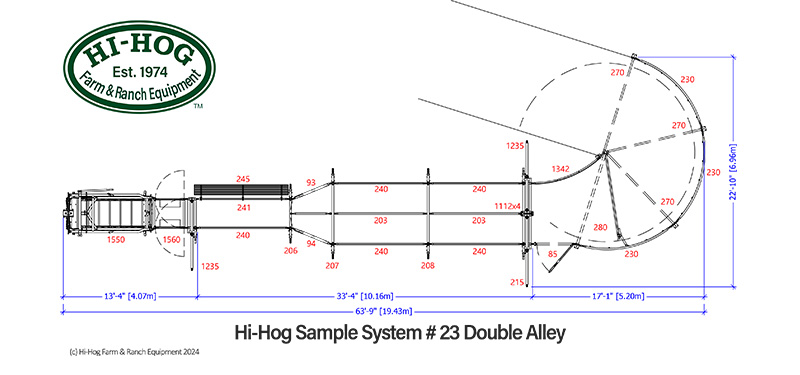

Check out Hi-Hog's collection of Sample Cattle Handling Systems for some design inspiration.

If you have any questions, or you would like Hi-Hog’s assistance to modify one of these plans, simply contact our sales office and one of our design staff will help you with your design. Toll free at 1-800-661-7002 (Monday to Friday 8:00 am to 4:30 pm MST).

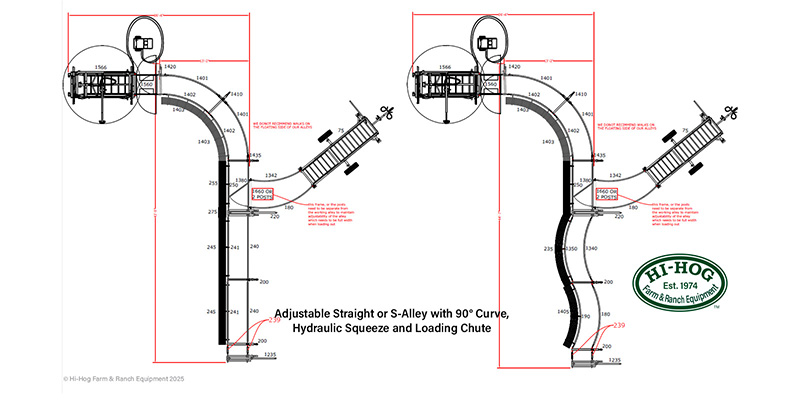

The Curved S-Alley was developed by Hi-Hog to take advantage of several natural livestock behaviours. The result is an alley that cattle will enter and flow through with less hesitation and less stress. This is Hi-Hog’s most popular cattle handling alley.

Hi-Hog’s Cattle Tubs / Sweeps provide a safe and efficient transition from your cattle corrals into your cattle handling system.

The #1560 Adjustable Palpation Cage offers the benefit of adjustable sides. The bottom of each gate includes an adjustable panel which can be swung in and quickly latched to provide a narrow interior for controlling calves. The width of the cage narrows to 14″ when both sides are set in.

A cattle handling system designed to take advantage of an animal's natural behavior.

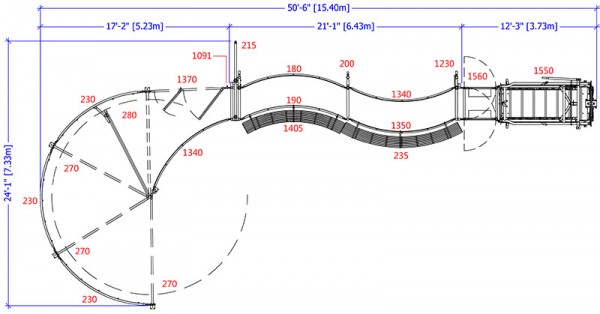

Sample Cattle Handling System 001 PDF

Hi-Hog’s #1550 Parallel Axis Cattle Squeeze Chute with self catch headgate is designed to  process your livestock as quickly and safely as possible.

Add Hi-Hog's #1536 Head Holder For #1550 PA Squeeze Chute
