BUILT FOR THE MODERN EQUINE FACILITY
All-welded strength. Clean lines. Reliable performance.
The modular stall system makes it easy to plan and install a stabling solution that will meet your needs. The solid welded construction will provide safe and reliable stalls for years to come.

The Stall Fronts and Partitions come standard in 10′ and 12′ lengths. Finished in our Signature Hi-Hog Green.
Currently available in standard sizes and Hi-Hog green finish. Custom sizes and colours are scheduled to return in 2027.

Equine Box Stall Fronts 10' RH and 12' RH are Standard

Contact us to confirm Horse Stall Availability and Pricing.

NOTE: Stall fronts and partitions are sold as frames only. Wood is not included.

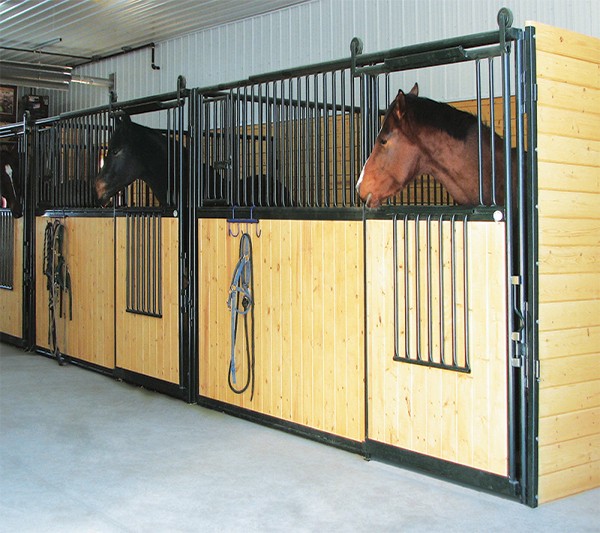

Equine Box Stall Fronts

Contact Hi-Hog to learn about wood requirements.

Hi-Hog Equine Box Stall Frame Features:

• Horse Stall Fronts and Partitions come standard in 10′ and 12′
• Box Stall Fronts are 7’-4” high (including nylon rolling wheels)
• Fully welded frames for maximum strength and long-term durability, Eliminates weak points found in bolt-together systems
• Stall Fronts come with a 4’ wide smooth ride rolling door (Left or Right)
• Box Stall Fronts include a corner feed gate for quick access to the stall from the safety of your alley
• 1-1/2” wide channel excepts standard dimensional lumber or tongue and groove. Simply slide your lumber in to the channel and secure the last board.
• Two sets of clip rings can be found inside the stall front for hanging feed and water (by the feed gate & mid stall front)

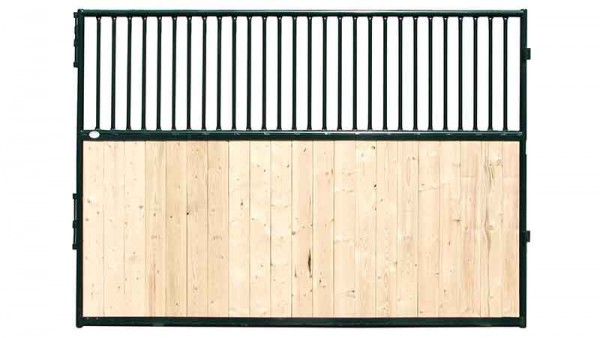

             Hi-Hog Equine Box Stall Open Top Partition - Standard 10' and 12'

Equine Box Stall - Open Top Partitions

We manufacture all of our premium Steel Horse Stalls in our shop in Calgary, Alberta. We have for 50 years!

Premium Hi-Tensile Steel

• Manufactured from North American high-quality steel tubing
• Engineered for strength without excessive weight
• Maintains structural integrity over years of use

Safe, Horse-Friendly Design

• The upper grills are made with 1” OD vertical bars set safely on 4” centres (maximum 3” opening)
• Proper bar spacing for visibility and ventilation without compromising safety
• Smooth, rounded edges to reduce risk of injury

---

We recommend an All Plank partition to separate storage and animals, or unfamiliar animals.

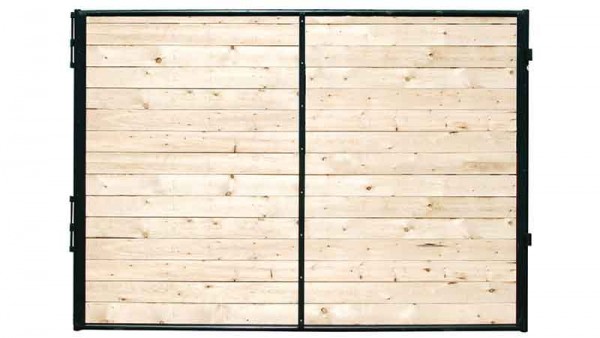

             Hi-Hog Equine Stall All Plank Partition Frame 10' and 12' Standard

Equine Box Stall - All Plank Partitions

Item#	Length	Weight (lbs)
4110	10'	94
4112	12'	114

 NOTE: If your Equine Box Stalls are set between wooden posts, you can use Hi-Hog's channel sets to create a custom length, all-plank partition.

Equine Box Stall - All Plank Partition Channel Strapping Sets

NOTE: We recommend one strapping set for partitions less than 10′ and 2 strapping sets for partitions up to 14′ in length.

Equine Box Stall - Wall Brackets

Hi-Hog has several different heavy duty wall brackets for you to choose from. Having wall bracket choices can be very helpful when you are attempting to fit your stalls into an existing barn. All brackets include a 1″dia. x 3″ pin collar mounted on a 3/16″ thick plate. The holes on all of the wall brackets have a diameter of 7/16”.

NOTE: wall fasteners are not included as the type and size of fastener you will require depends on the finish of your barn wall.

Standard Wall Brackets
Hi-Hog offers two standard wall brackets. The horizontal wall bracket (4060) is designed for general wall mounting. The bracket is 6" wide by 4" in height. Before ordering this item check the install location to ensure you have room for this bracket to be installed without interfering existing barn features such as door and window frames, electrical, etc. If you have interference you can use the vertical bracket (4061) which is 4” wide by 6” high.

Foaling Wall Brackets
The foaling bracket (Item 4062) is designed to position the pin point a little further from the wall. This allows a partition which is normally perpendicular to the wall to be rotated flat against the wall.

In some cases, such as when you are faced with an opening that is slightly larger than the standard stall dimensions you might be able to use these connectors at one end, or both ends, to fill the gap without having to order custom stall components.

Equine Box Stall - Wall Brackets and 3-way Connector Post

Hi-Hog’s Equine Box Stalls can be installed as stand-alone sets or attached directly to the walls of your barn.

The 7′ high Box Stall 3-way post is only required when you are setting up your Box Stalls independent of the wall. If this is what you plan to do you will require one 3-way post for each set of box stalls.
Stalls can be set up as a single run of stalls or as a run of back-to-back stalls.

3-way post for back-to-back horse stall installation

NOTE: if you are planning on creating a stand-alone stall set-up you will require one 3-way post (item 1635) for each stand-alone stall set. (a stand-alone stall set-up does not attach to any walls)

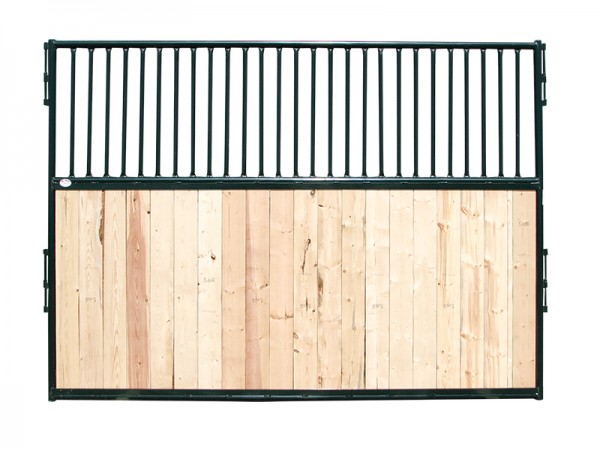

Equine Box Stall - Foaling Partition

                                      #4211 10' Open Foaling Partition

If you want to include a Foaling Partition please be aware that you will also require a foaling tele-post (the tele-post goes in between the stall fronts) and a set of foaling stall brackets (#4062 x 2) at the back wall of the stall.

The foaling tele-post (item #1638) is designed to fasten to the floor of your barn and to the underside of your barn ceiling. The top plate of the tele-post can extend from 8'-1” up to 14’.

If your barn's ceiling is higher than 14’, or if the ceiling does not offer a suitable fastening surface, you will need to add a foaling tele-post spreader (item #1639). The spreader inserts in between the two tele-post sections and travels horizontally to the back wall of your barn.

If you plan to store the partition in your foaling stall we recommend you include an extra pair of foaling wall brackets (item 4062 x 2) to ensure both ends of your foaling partition are held securely against the back wall of your barn (we do not want your foal to get trapped behind the foaling partition).

The foaling partition wall brackets extend the connector away from the back wall of your barn so you can continue to use these wall brackets to hold one end of the partition when the partition is swung flush against the back wall of your barn.

• Our open top Foaling Partitions are available in 10′ and 12′ lengths
• Partitions are 7’ high
• Heavy duty 1.9″ OD, 14-gauge steel frame provide safety and security for your horse.

Channels are built into the frame to receive your lumber. Simply slide the lumber into the partition channel and secure the last board in place. Designed for 2×6 planed dimensional lumber.

Equine Box Stall - Foaling Partition / Tele-Post / Spreader / Brackets

If you would like help laying out your Equine Box Stalls, start at our Sample Hi-Hog Horse Barn Designs page!

                  ALWAYS CONFIRM YOUR STALL LAYOUT WITH A DRAWING

The drawing process often reveals considerations that may have been overlooked. Provide us with the Interior Wall Dimensions and We will provide you with a scaled and labelled drawing showing how Hi-Hog’s Equine Box Stalls will fit into your facility.

Excellent Visibility & Airflow

• Open bar design promotes natural light and ventilation
• Keeps horses calm and aware of surroundings
• Supports healthier barn environments

We recommend an All Plank partition to separate storage and animals.

NOTE: Lumber is not included with any of Hi-Hog’s stall frames. We can however let you know how much wood you will require based on your proposed stall order.

Stall Planning Guide - Design tips for laying out your horse barn

Lumber Calculator for Hi-Hog Stalls - Find out how much lumber you'll need.

Sample Horse Barn Layouts - get inspired

FREE horse barn stall layout and design service - learn more
