While there are hundreds of possible wellhead fence enclosure plans we have selected a few designs to introduce you to the possibilities.

Hi-Hog offers a range of modular wellhead fence lengths (5', 10', 12'). This makes it easy for you to create a wellhead fence enclosure that fits your needs.  If you need to change the design of your perimeter fence you have no need to worry as the modular design as well as the wide selection of panel sizes makes it easy to expand, contract, or modify your well head fence design.

  • Sample 01 - Guy Wire Utility Enclosure:
  • Sample 02 - 6'-9" x 6'-9" Utility Enclosure:
  • Sample 03 - 6'-9" x 11'-3" Wellhead Enclosure
  • Sample 04 - 6'-9" x 13'-3" Wellhead Enclosure
  • Sample 05 - 11'-3" x 11'-3" Wellhead Enclosure:
  • Sample 06 - 11'-3" x 13'-3" Wellhead Enclosure:
  • Sample 07 - 13'-3" x 13'-3" Wellhead Enclosure:
  • Sample 08 - 11'-3" x 21' Wellhead Enclosure:
  • Sample 09 - 11' x 31' Wellhead Enclosure:
  • Sample 10 - 11' x 41' Wellhead Enclosure:
  • Sample 11 - 21' x 21' Wellhead Enclosure:
  • Sample 12 - 21' x 31' Wellhead Enclosure:
  • Sample 13 - 21' x 41' Wellhead Enclosure:
  • Sample 14 - 31' x 31' Wellhead Enclosure:
  • Sample 15 - 31' x 41' Wellhead Enclosure:
  • Sample 16 - 41' x 41' Wellhead Enclosure:
  • Sample 17 - Combination Wellhead Enclosure: - One Inside Corner
  • Sample 18 - Combination Wellhead Enclosure: Two Inside Corners




Sample 01 - Guy Wire Utility Enclosure (Open PDF):

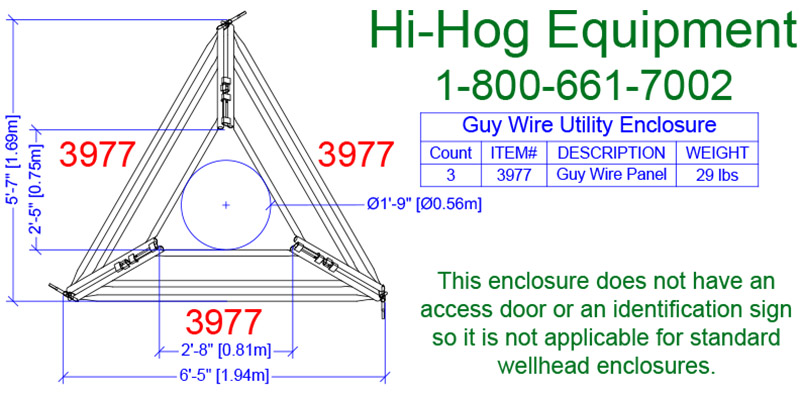

Hi-Hog sample Guy Wire Utility Fence Enclosure

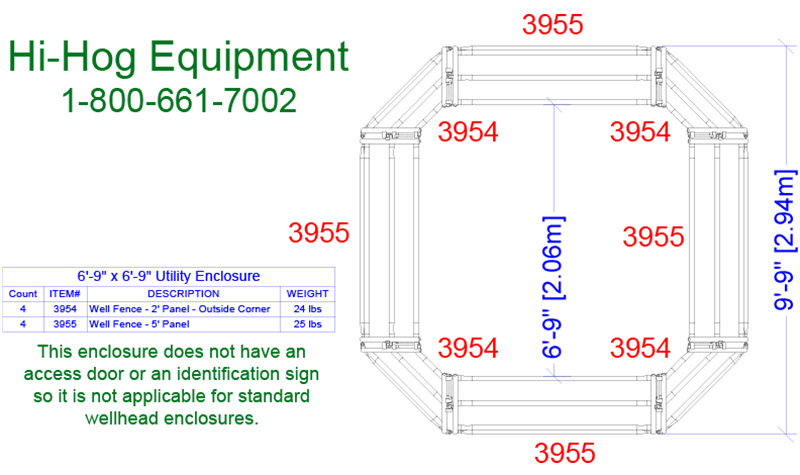

Sample 02 - 6'-9" x 6'-9" Utility Enclosure (Open PDF):

Hi-Hog Sample - 02  Utility Cattle Guard Enclosure


Sample 03 - 6'-9" x 11'-3" Wellhead Enclosure (Open PDF):

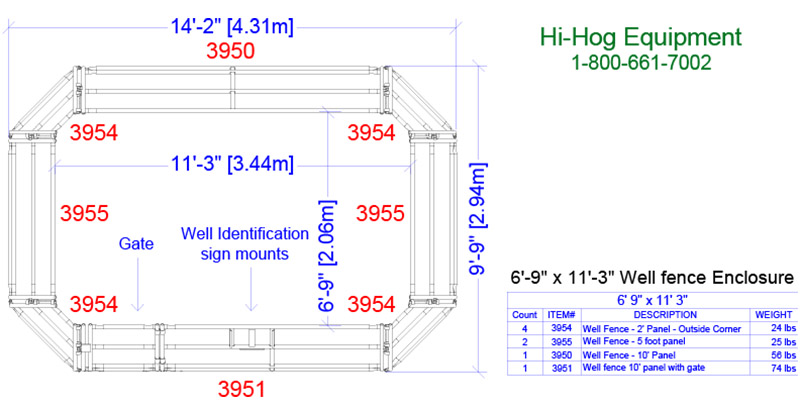

Sample 03 - 6'-9" x 11'-3" Hi-Hog Wellhead Enclosure


Sample 04 - 6'-9" x 13'-3" Wellhead Enclosure (Open PDF):

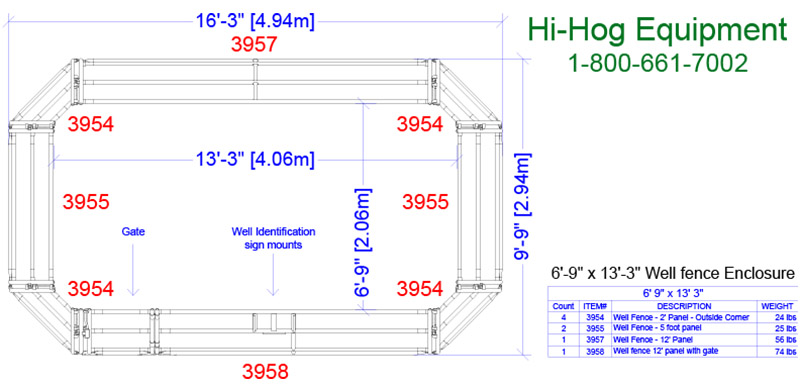

Sample 04 - 6'- 9" x 13'- 3" Hi-Hog Wellhead Enclosure 01


Sample 05 - 11'-3" x 11'-3" Wellhead Enclosure (Open PDF):

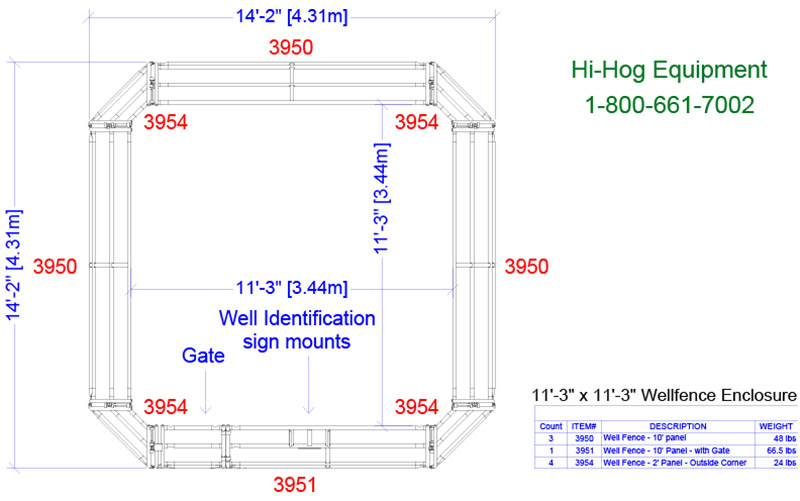

Sample 05 - 11'- 3" x 11"- 3" Hi-Hog Wellhead Enclosure


Sample 06 - 11'-3" x 13'-3" Wellhead Enclosure (Open PDF):

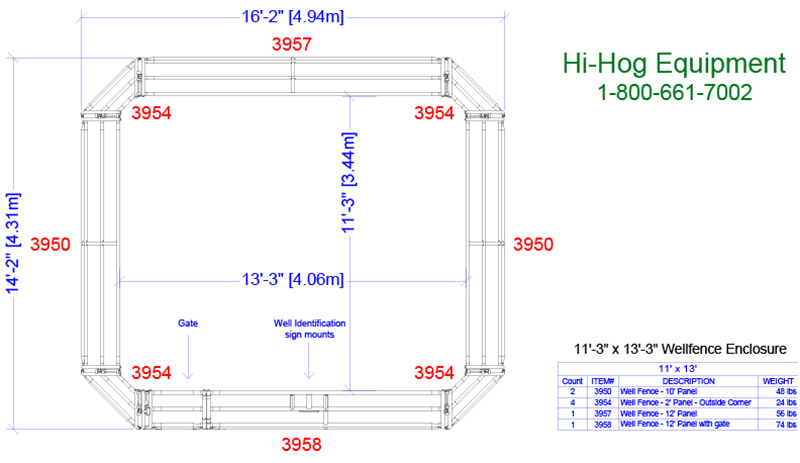

Sample 06 - 11'- 3" x 13'- 3" Hi-Hog Wellhead Enclosure


Sample 07 - 13'-3" x 13'-3" Wellhead Enclosure (Open PDF):

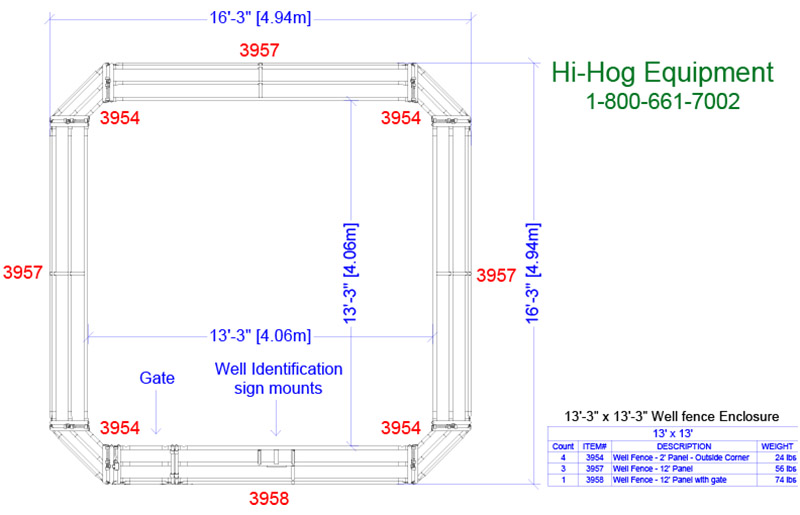

Sample 07 - 13'- 3" x 13'-3" Hi-Hog Wellhead Enclosure


Sample 08 - 11'-3" x 21' Wellhead Enclosure (Open PDF):

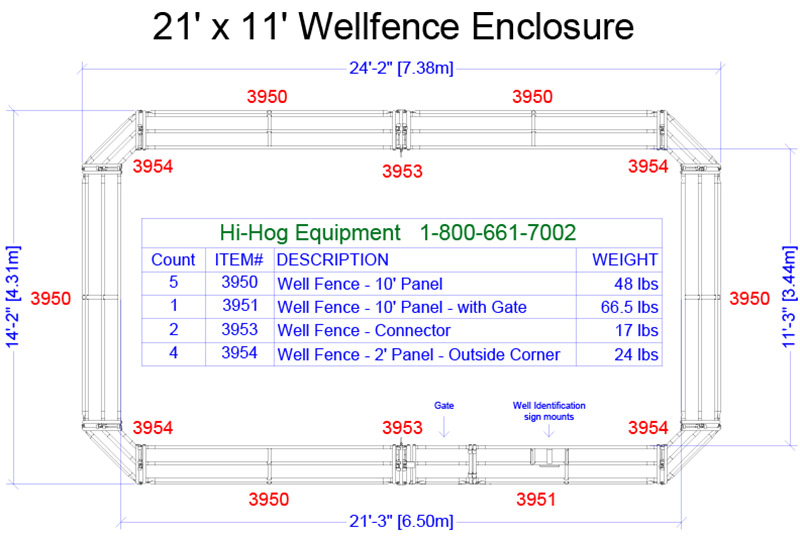

Sample 08 - 11'-3" x 21'-3" Hi-Hog Wellhead Enclosure


Sample 09 - 11' x 31' Wellhead Enclosure (Open PDF):

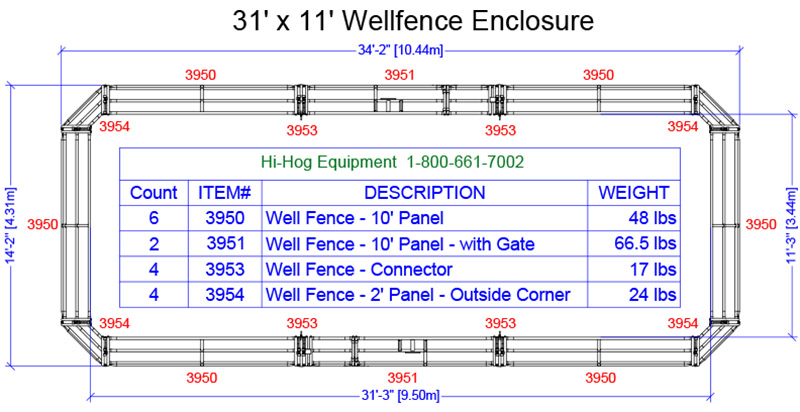

Sample 09 - 11'-3" x 31'-3" Hi-Hog Wellhead Enclosure


Sample 10 - 11' x 41' Wellhead Enclosure (Open PDF):

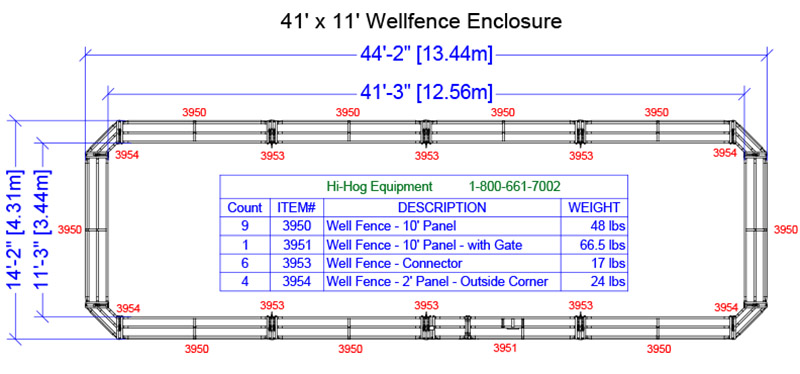

Sample 10 - 11'-3" x 41'-3" Hi-Hog Wellhead Enclosure


Sample 11 - 21' x 21' Wellhead Enclosure (Open PDF):

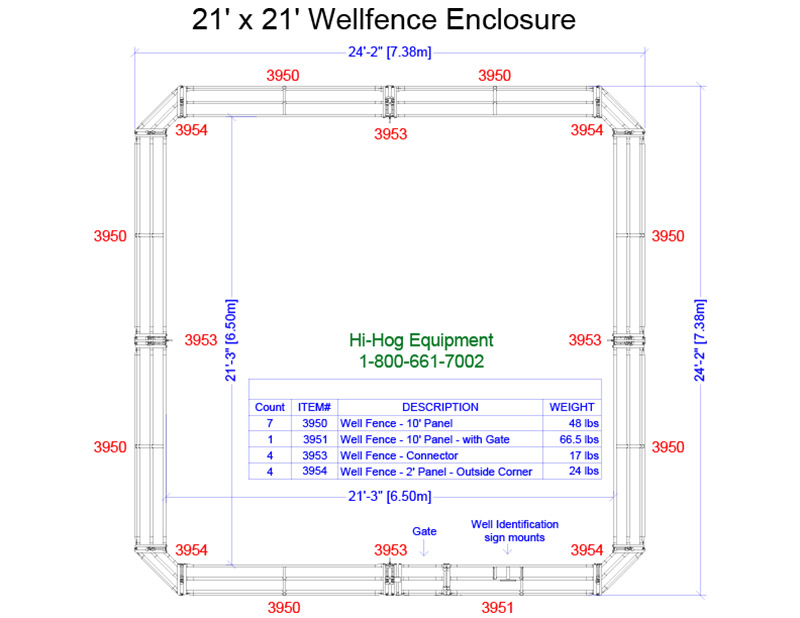

Sample 11 - 21'-3" x 21'-3" Hi-Hog Wellhead Enclosure


Sample 12 - 21' x 31' Wellhead Enclosure (Open PDF):

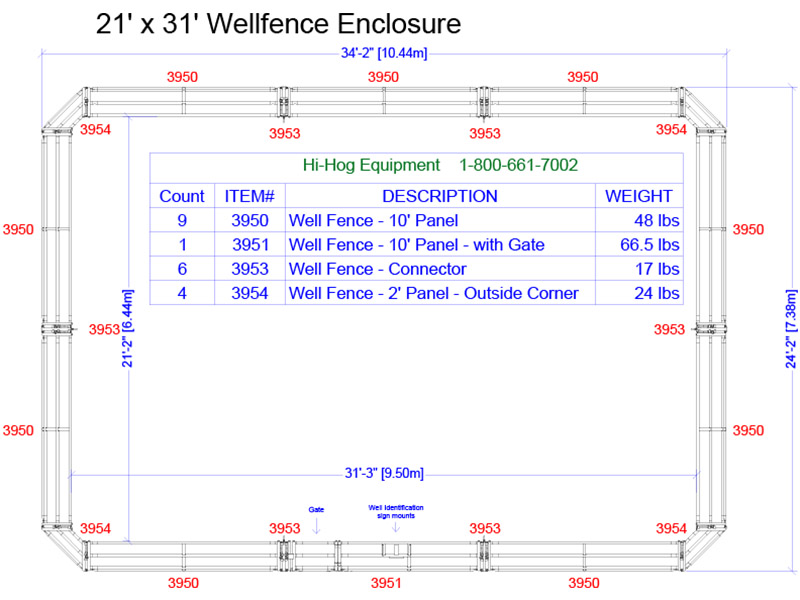

Sample 12 - 21'-3" x 31'-3" Wellhead Enclosure


Sample 13 - 21' x 41' Wellhead Enclosure (Open PDF):

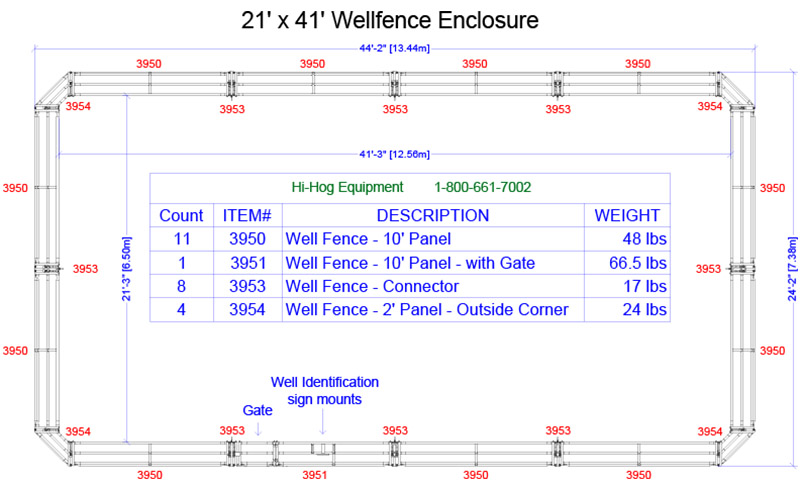

Sample 13 - 21'-3" x 41'-3" Hi-Hog Wellhead Enclosure


Sample 14 - 31' x 31' Wellhead Enclosure (Open PDF):

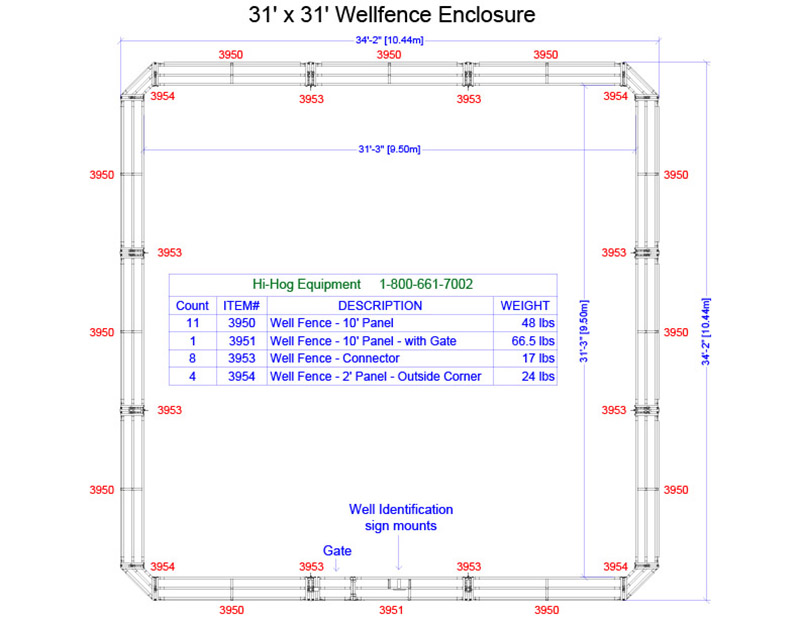

Sample 14 - 31'-3" x 31'-3" Hi-Hog Wellhead Enclosure


Sample 15 - 31' x 41' Wellhead Enclosure (Open PDF):

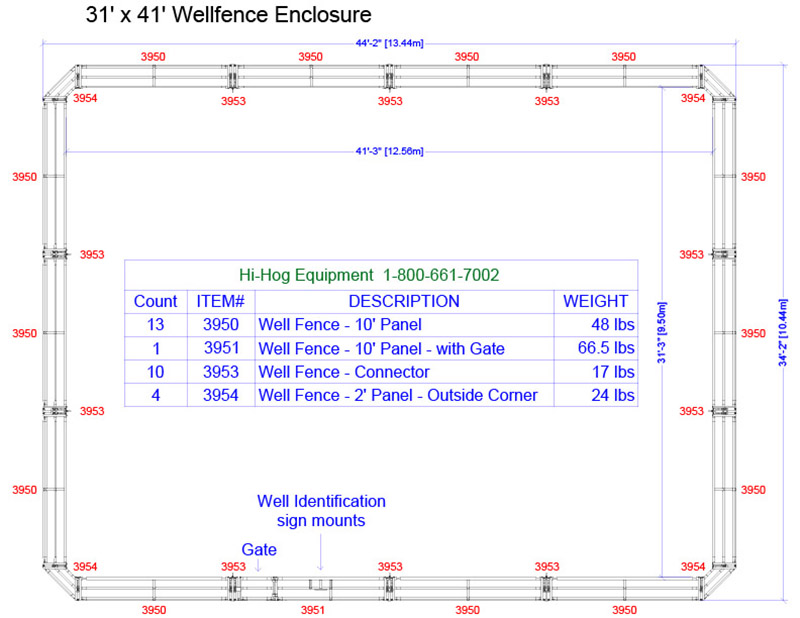

Sample 15 - 31'-3" x 41'-3" Hi-Hog Wellhead Enclosure

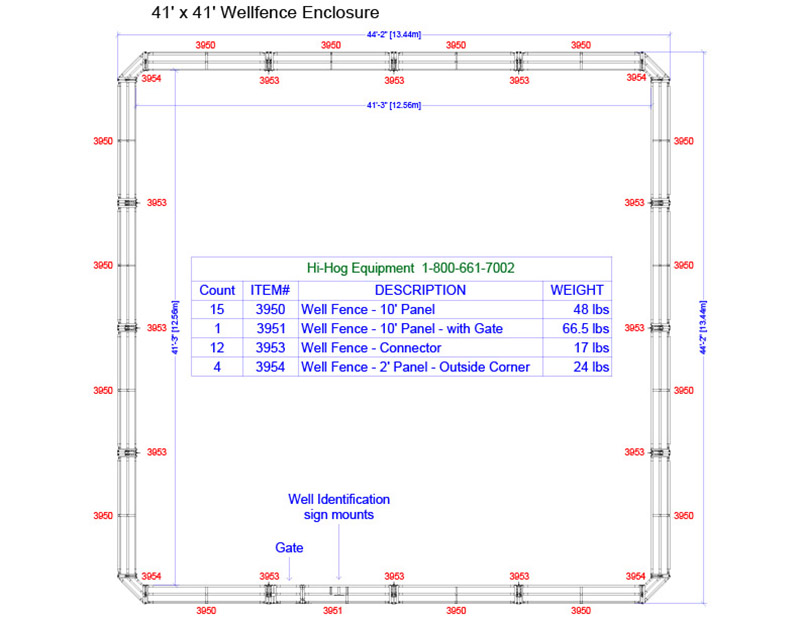

Sample 16 - 41' x 41' Wellhead Enclosure (Open PDF):

Sample 16 - 41'-3" x 41'-3" Hi-Hog Wellhead Enclosure


Sample 17 - Combination Wellhead Enclosure: - One Inside Corner (Open PDF):

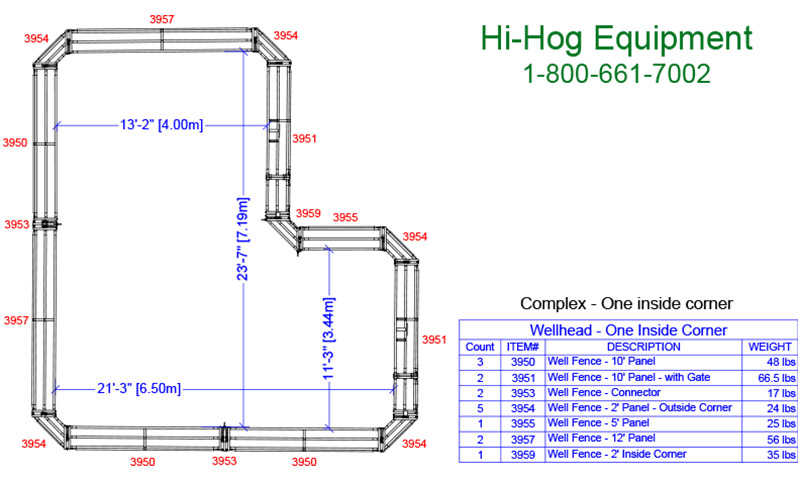

Sample 17 - Complex Hi-Hog Wellhead Enclosure With Inside Corner


Sample 18 - Combination Wellhead Enclosure: Two Inside Corners (Open PDF):

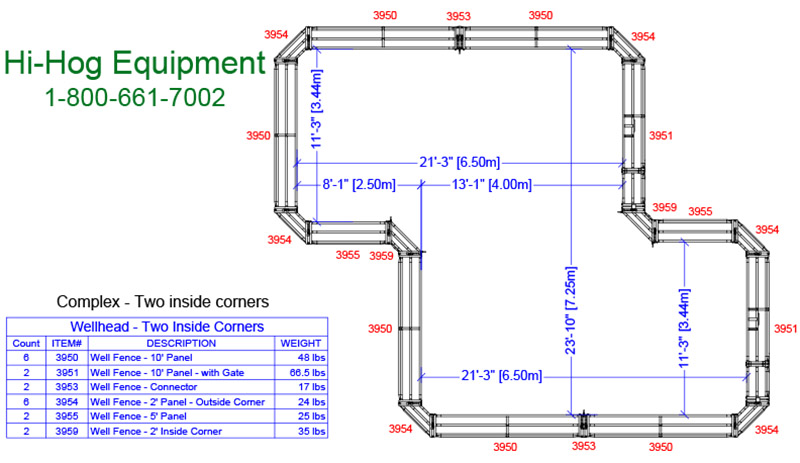

Sample 18 - Complex Hi-Hog Wellhead Enclosure With Two Inside Corners



Do you need a plan that we don't show here? Contact Hi-Hog and let us know the size of the enclosure you need (inside dimension) and let us know how many panels with man gates you need, and we will prepare an itemized drawing for you, complete with dimensions (this is a free service).
