Item Number: Bud Box Style Crowding Tub

This tub combines the standard Crowding Tub with the animal movement of a Bud Box.

Bud Box style cattle crowding tub

Return Crowding Tub - Option One

A Crowding tub that operates similarly to a Bud Box

Return Crowding Tub - Option Two

Ask a question about Hi-Hog's Bud Box style Crowding Tub

Operating Instructions

Fill The Return Tub with livestock as you would in a standard crowding tub. When the cattle circle around the tub and find no exit they will want to return to where they came from. When they head back towards the entrance they will find the open path into the working chute and readily enter it.

To help with livestock movement the operator moves in the opposite direction of the stock. As the operator moves from the working alley entrance towards the back of The Return Tub the livestock will turn and move in the opposite direction to attempt to get behind the operator.

If the operator still has stock hesitating in the tub they can use the pivot gate to encourage the livestock forward. If possible, avoid pushing or overcrowding the stock in the tub.

Hi-Hog's Bud box style cattle sweep

Bud Box style cattle tub

Ask a question about Hi-Hog's Bud Box style Crowding Tub

Handler Safety

Traditional Bud Boxes often require the handler to be in the pen with the animals. This can present an unpredictable situation which can place the operator at risk. By using the tub and pivot gate we benefit from the safety of working the animals from the outside. Do not overfill the tub with livestock as this will only make it difficult for your livestock to locate the exit.

Hi-Hog’s products are designed to work together which allows you to create designs that fit your needs with standard stock products. All of the parts used in The Return Tub are standard items that are already used in our standard crowding tubs and handling systems. Here are two ways you can combine Hi-Hog’s components to create a Return Tub:

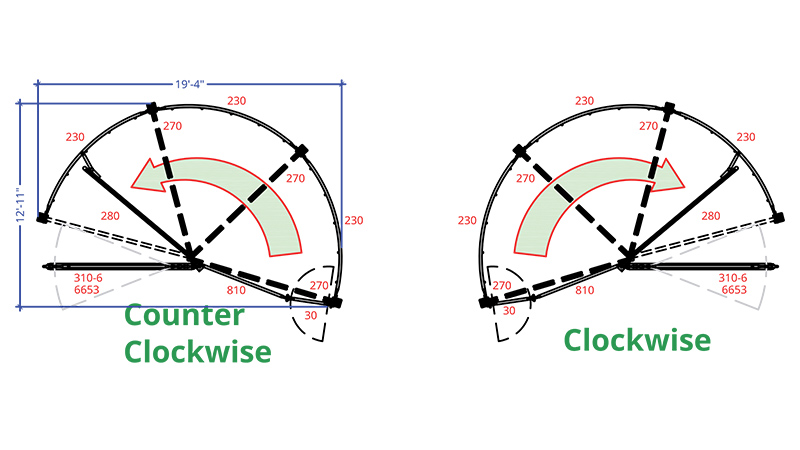

Option One: utilizes a three section crowding tub.

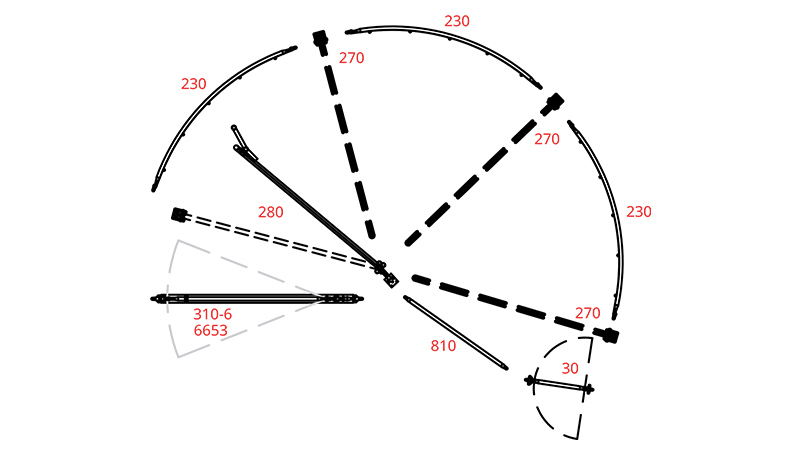

Exploded plan view of Reverse Tub - Option One

Return Tub - Option One - Exploded view

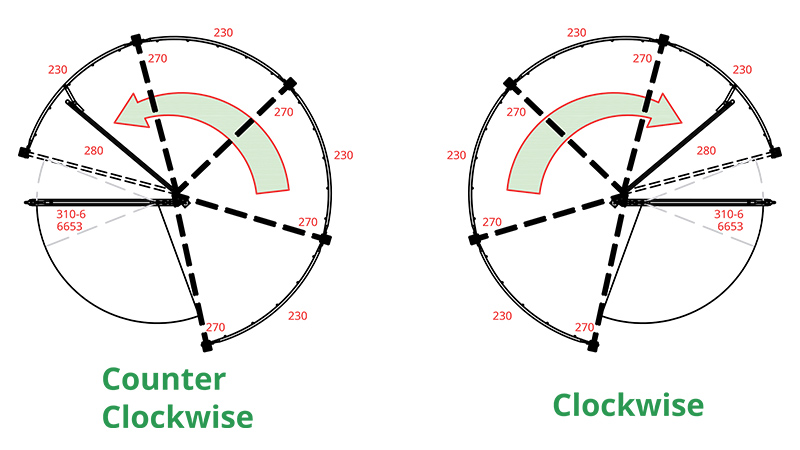

Option Two: utilizes a four section crowding tub

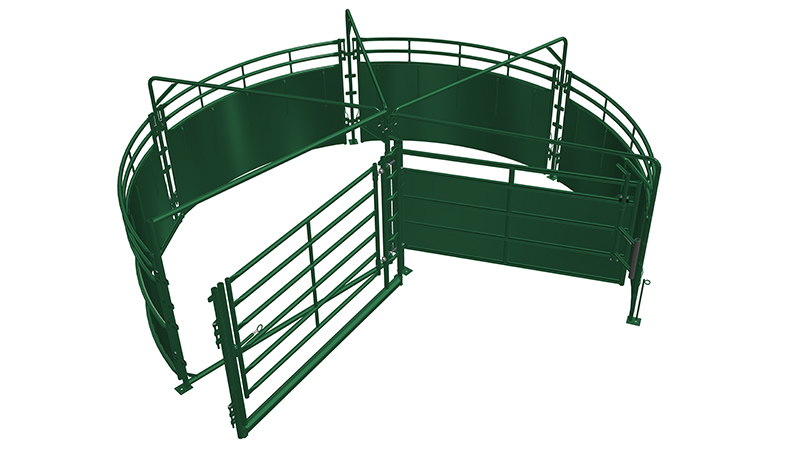

Hi-Hog's Reverse tub Bud Box cattle sweep - option two

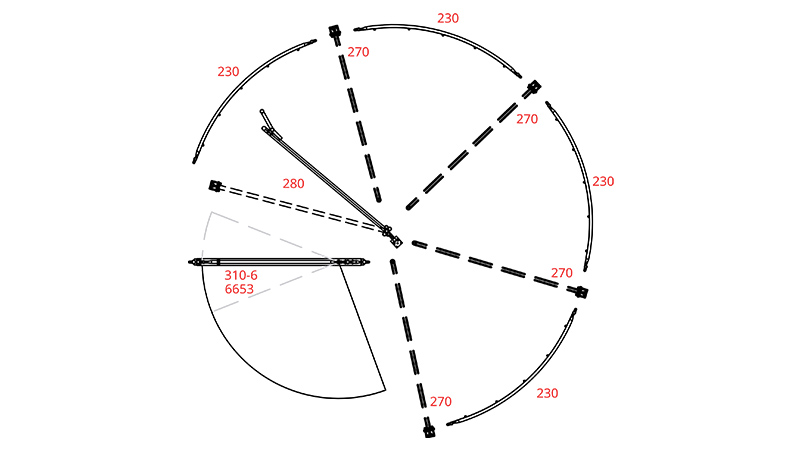

Return Crowding Tub - option two - exploded view

Item # Description Weight (lbs)
230 10' Curved Tub Section  208
270 Overhead Tub Spreader  46
280 Pivot Gate with Tub Spreader  442
310-6 10' x 6' U-Frame 267
6653 8' x 5' Heavy Duty Gate with 7/8" Horseback Latch 116
810 6' x 5' Heavy Duty Panel 69
30 32" Non-Adjustable Alley Spreader with swing-gate 79
