Item Number: Timed Event Box

Hi-Hog’s complete timed event box provides a safe starting point for your riders, horses and stock. The two stage roping chute, designed to handle both calves and steers, is manufactured using minimum 60,000 psi, high tensile steel tubing. Built to PRCA and CPRA specifications.

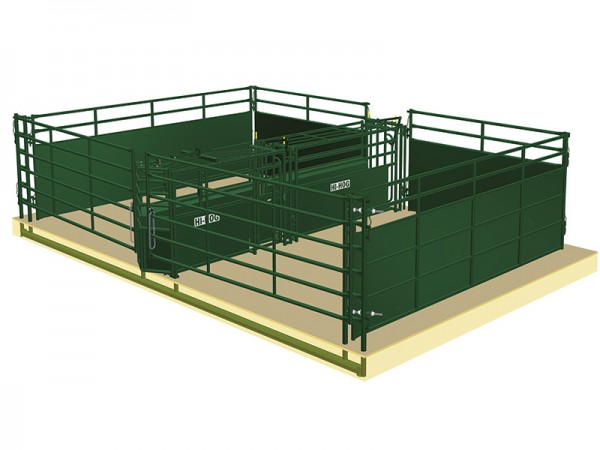

Hi-Hog Timed Event Roping Box

Hi-Hog's complete timed event box provides your riders, horses and stock with a safe start.

The front of the timed event box utilizes a single U-frame to:
  • align and anchor the roping chute
  • support the two sheeted 16' side panels
  • and support the two 12'w x 5'h heavy duty gates (mounted at 6' height)
The gate hinges are offset to allow the gates to open fully and lay flat against the arena interior. The top of the bottom U-frame tubing is buried 7.5" below grade.  The interior of the box panels are sheeted to a height of 48". The sheeted side panels include anchor points for controlling the barrier.

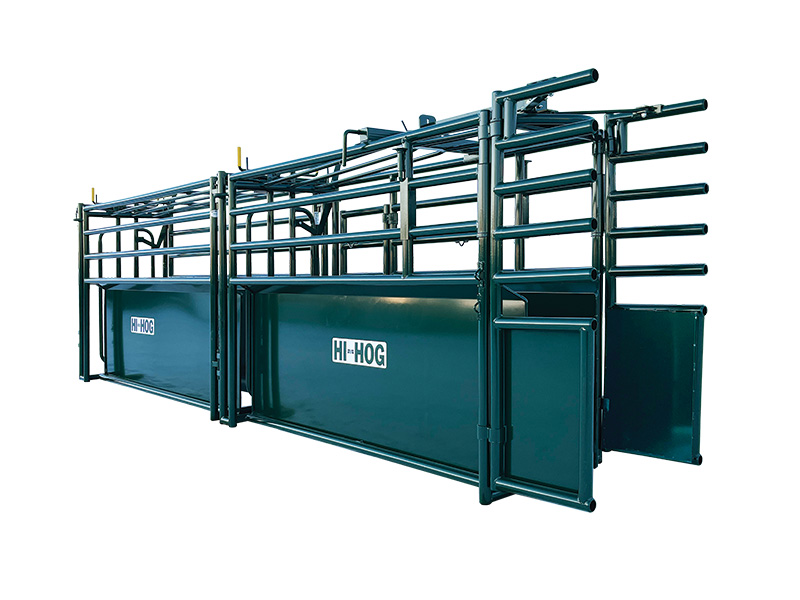

Hi Hog Timed Event Rodeo Box and Chutes

Hi-Hog's complete timed event box provides your riders, horses and stock with a safe start.

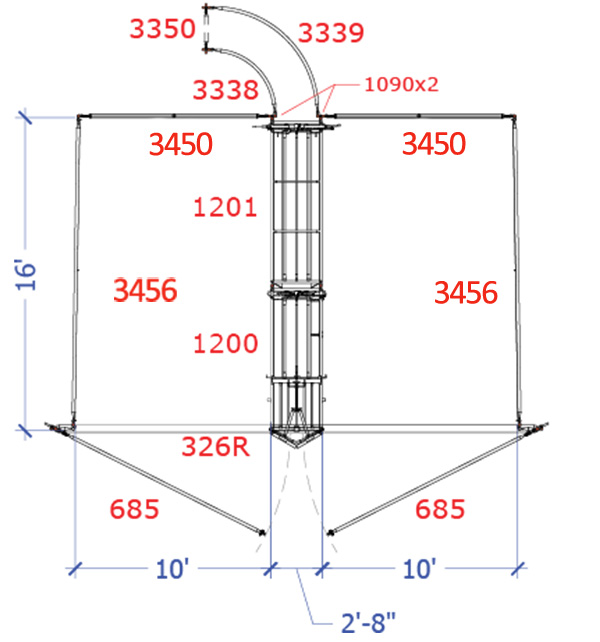

Description Item # Weight LBS
First Stage Roping Chute 1200 568

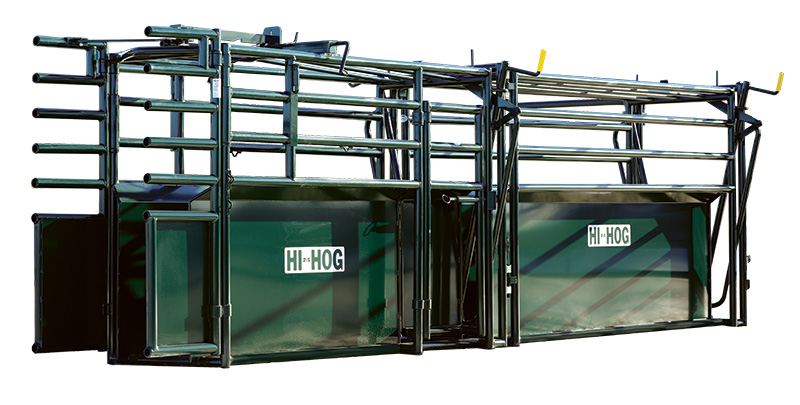

Second Stage Roping Chute 1201 425
Roping Box - Front U-Frame 326-R 538
12' x 5'  Heavy Duty Gate 685 147
16' x 5' Panel - Sheeted 48" High 3432 329
10' x 5' Panel - Sheeted 48" high 3426 202
Curved Entry Alley - 38" radius 3338 70
Curved Entry Alley - 64" radius 3339 103
24" wide Steer Alley Spreader 3350 39

Hi-Hog's complete timed event box provides your riders, horses and stock with a safe start.

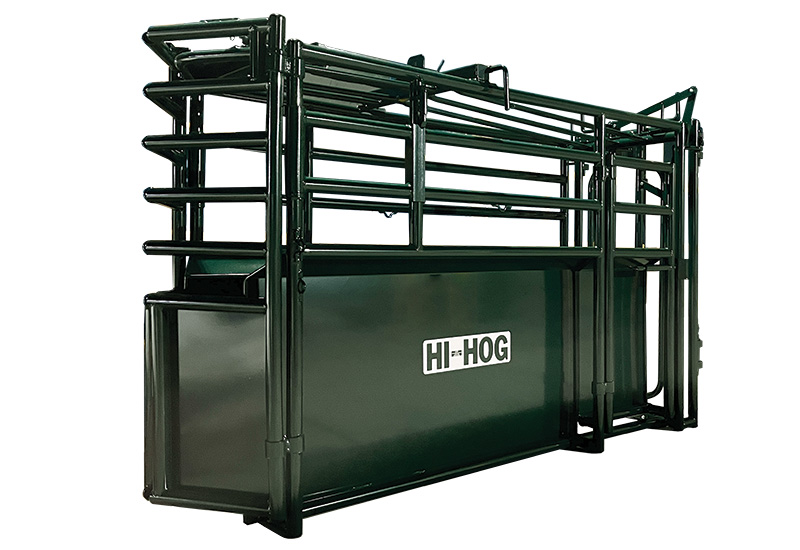

Hi-Hog Roping Chute - Stage One

Hi-Hog's complete timed event box provides your riders, horses and stock with a safe start.

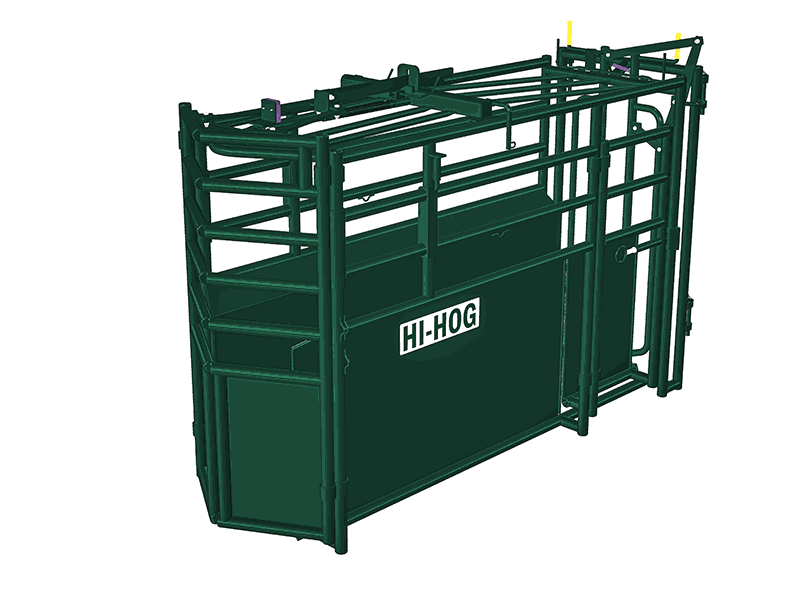

The spring-loaded release gate on Hi-Hog's roping chute can be quickly and easily released.

Ask an expert about Hi-Hog's Roping Chutes

Stage One Roping Chute Specifications

  • Outside width: 34.75"
  • Outside width with tailgate open: 54"
  • Width to pin centers: 30”
  • Interior width below 35" height: 18"
  • Interior width above 35" height: 28"
  • Length: 100.5”
  • Outside height: 67"
  • Interior clearance height: 56.5"
  • Weight: 568 lbs
  • Item number: 1200

The release gate springs open and locks securely. This prevents the release gate from swinging back and adversely spooking your calf or steer.

The bottom half of the release gate is sheeted to keep feet contained. The top half of the release gate comes with open horizontal rails to keep your stock focused and facing down the arena.

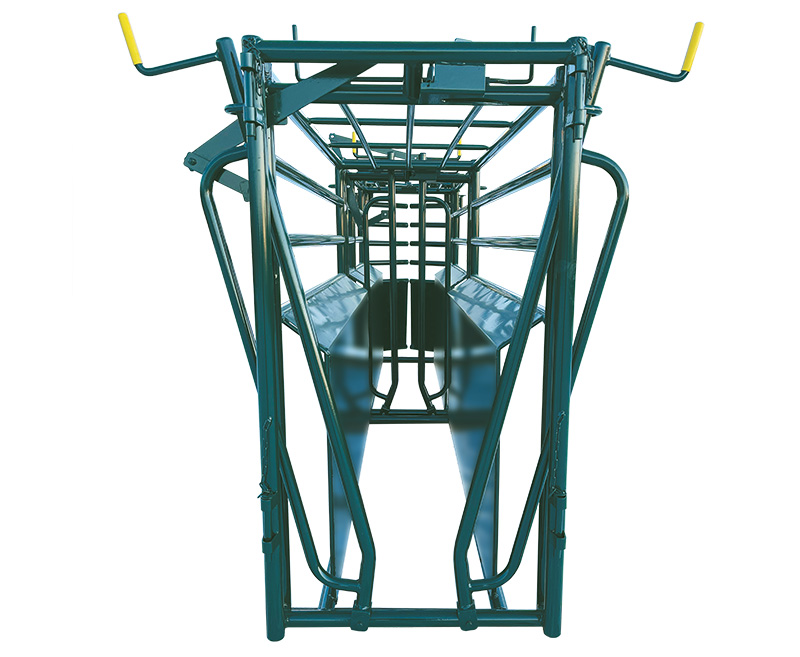

Similarly, the contoured sheeting used on the bottom 35″ of both sides of the roping chute keep your stock facing forward with their legs and feet safely within the chute.

This chute comes equipped with quick access barrier gates on both sides of the roping chute. These quick access gates provide excellent access for attaching neck ropes or horn wraps. The simple but solid gravity locks insure that you can work efficiently and still be confident that your animals are securely contained.

The chute also includes a side man-gate which allows quick access for a stock pusher.

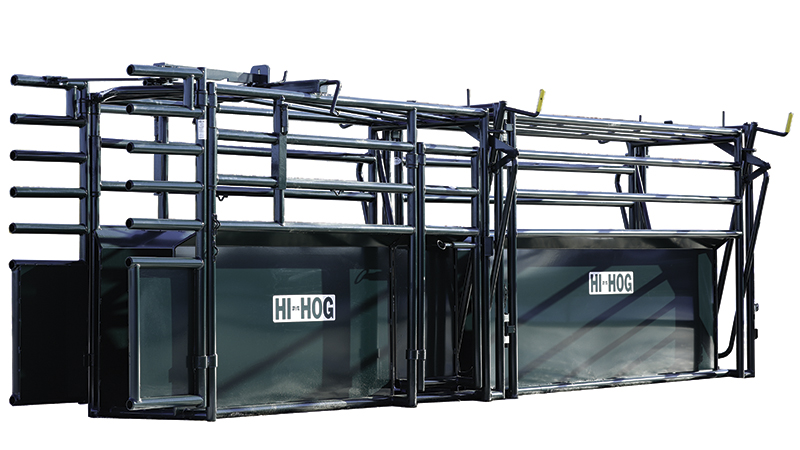

Hi Hog Rodeo timed event Roping Chutes

Roping Chute with 8' long, sheeted lead-up alley

Ask an expert about Hi-Hog's Roping Chutes

If you're on a budget you can create a simple lead-up alley by adding two, 8′ long x 5′ high,  Corral Panels (item #760) or two, 8’ long x 5’ high, Heavy Duty Panels (item 820). A 24″ wide Alley Spreader with a Gate (item #3360) will hold the panels in position at the back of the roping box. Similarly, you can create the sides of the box with Hi-Hog's 10' and 16' Corral Panels or Heavy Duty Panels. Please note that these budget solutions do not meet PRCA or CPRA specifications.



Resources:

Alternate Terms:
Roping Chute: Dogging Chute, team Roping
