Item Number: Adjustable Straight Alley Parts

In addition to Hi-Hog’s S-Alley and U-Alley you can also consider one of three straight alley sections. The straight sections are most commonly used as part of a combination alley to create a custom alley made from standard stock products.

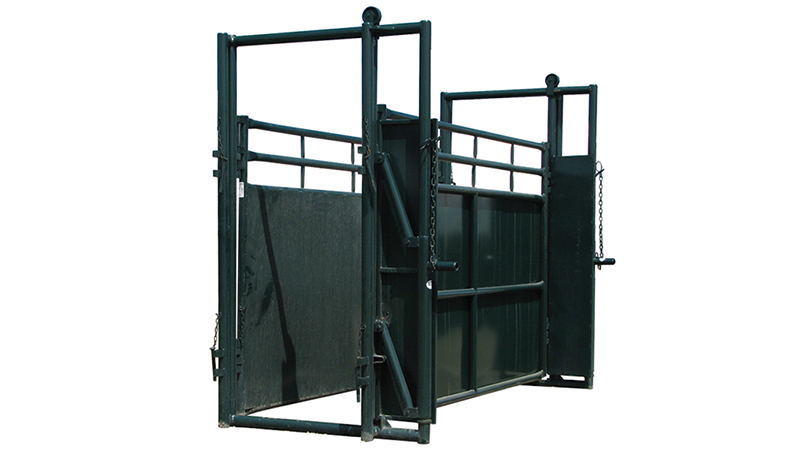

Photo of Hi-Hog Adjustable Straight Alley for cattle handling

Adjustable Straight Cattle Handling Alley

Ask an expert about Hi-Hog's adjustable straight alley.

Three lengths to choose from

The three standard straight alley sections are 4’-6” long, 7’ long and 9’-3” long. All of these panels can be hung on any of our adjustable alley spreaders (except the U-Alley spreaders).

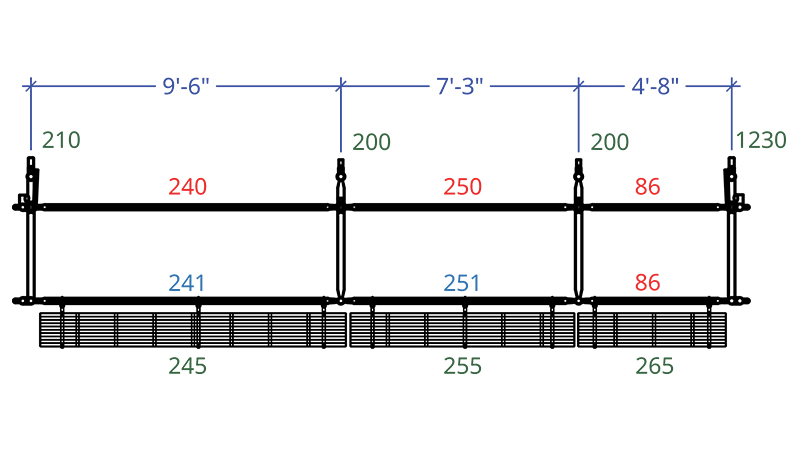

Plan view of three types of Hi-Hog's adjustable straight alley

Three adjustable straight alley options

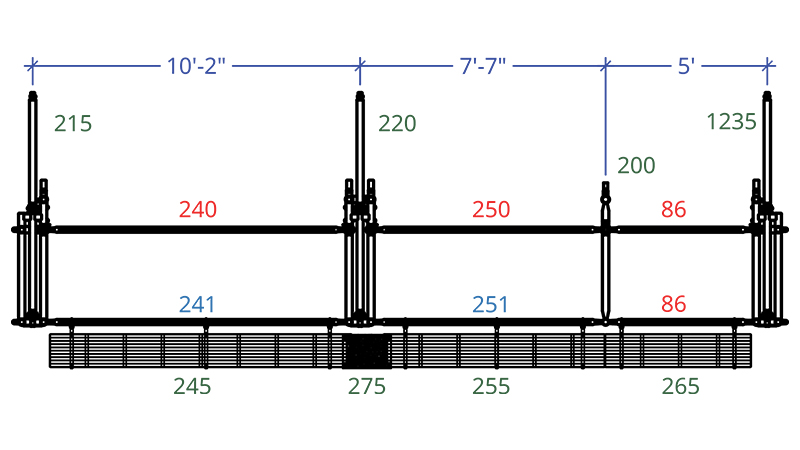

Hi-Hog's three optional straight cattle handling alley sections, with doors

All adjustable alley spreaders can be order with a rolling door




Ask an expert about Hi-Hog's adjustable straight alley.



4'-6" Straight Alley

This is the shortest of the three straight cattle handling alleys.

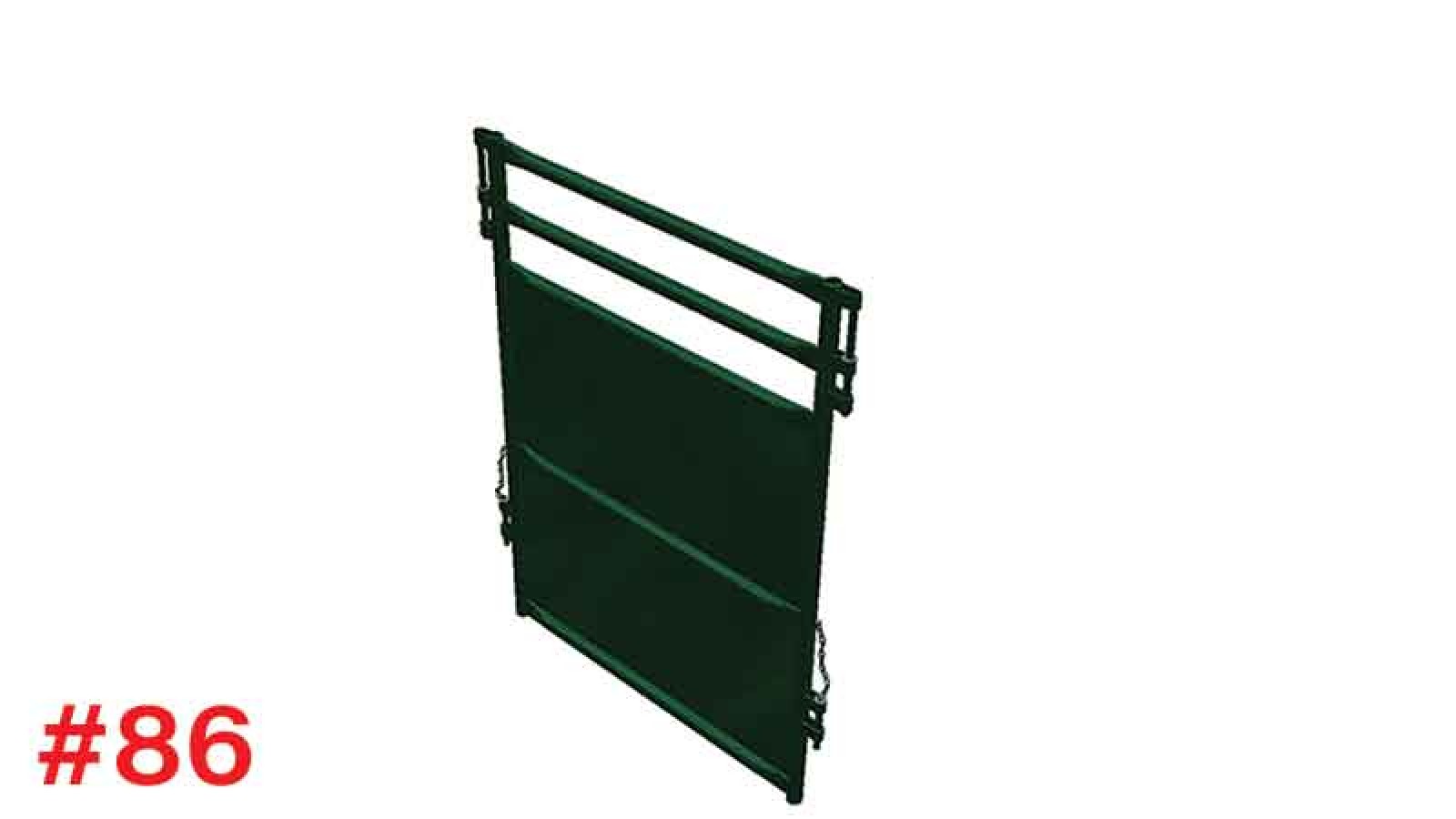

Item #86 is a 4' long sheeted panel and it is available only in the 66" height. The livestock panel will connect with our stationary alley spreaders, our adjustable S-Alley spreaders or the 'S' side of our U-to-S Alley spreaders.

To turn this alley section into a 4' sorting section, or a palpation cage, replace one or more of the #86 with an item #85.

7' Straight Alley

This is the middle length of the three straight cattle handling alleys available.

The 7′ long panels are available in two heights. Item #250 is 66” high while item #251 is 60” high. These panels will connect with our stationary alley spreaders, our adjustable S-Alley spreaders or the ‘S’ side of our U-to-S Alley spreaders.

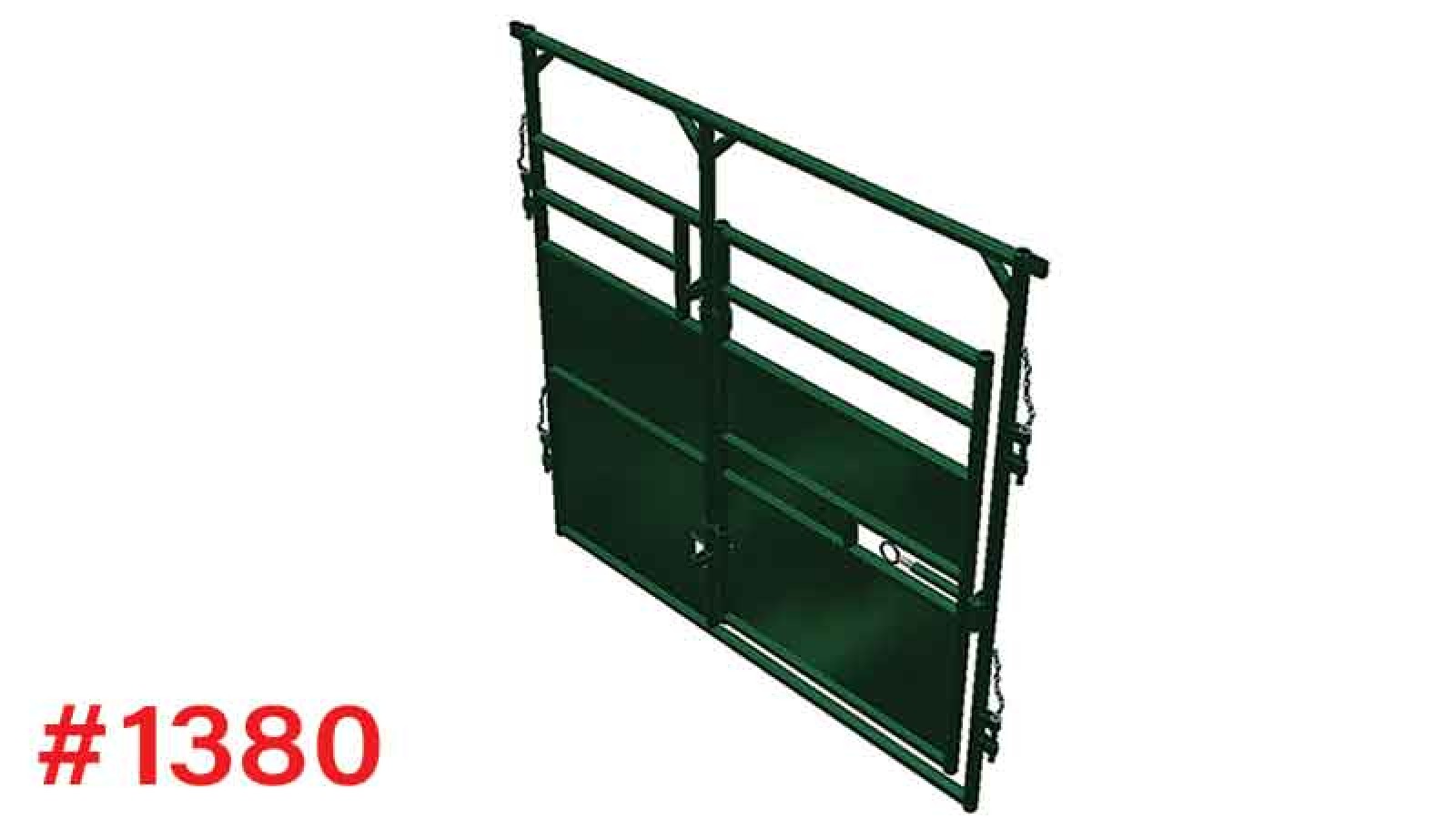

If you wish to sort livestock out of this section replace item #250 or #251 with item #1380 or #1375.


9′-3″ Straight Alley
This is the longest length of the three straight cattle handling alleys available. The 9′-3″ long panels are available in two heights. Item #240 is 66” high while item #241 is 60” high. These panels will connect with our stationary alley spreaders, our adjustable S-Alley spreaders or the ‘S’ side of our U-to-S Alley spreaders.


Ask an expert about Hi-Hog's adjustable straight alley.



Review the table below for the complete list of standard straight alley panels:

Item # Description Panel Height Weight (lbs)

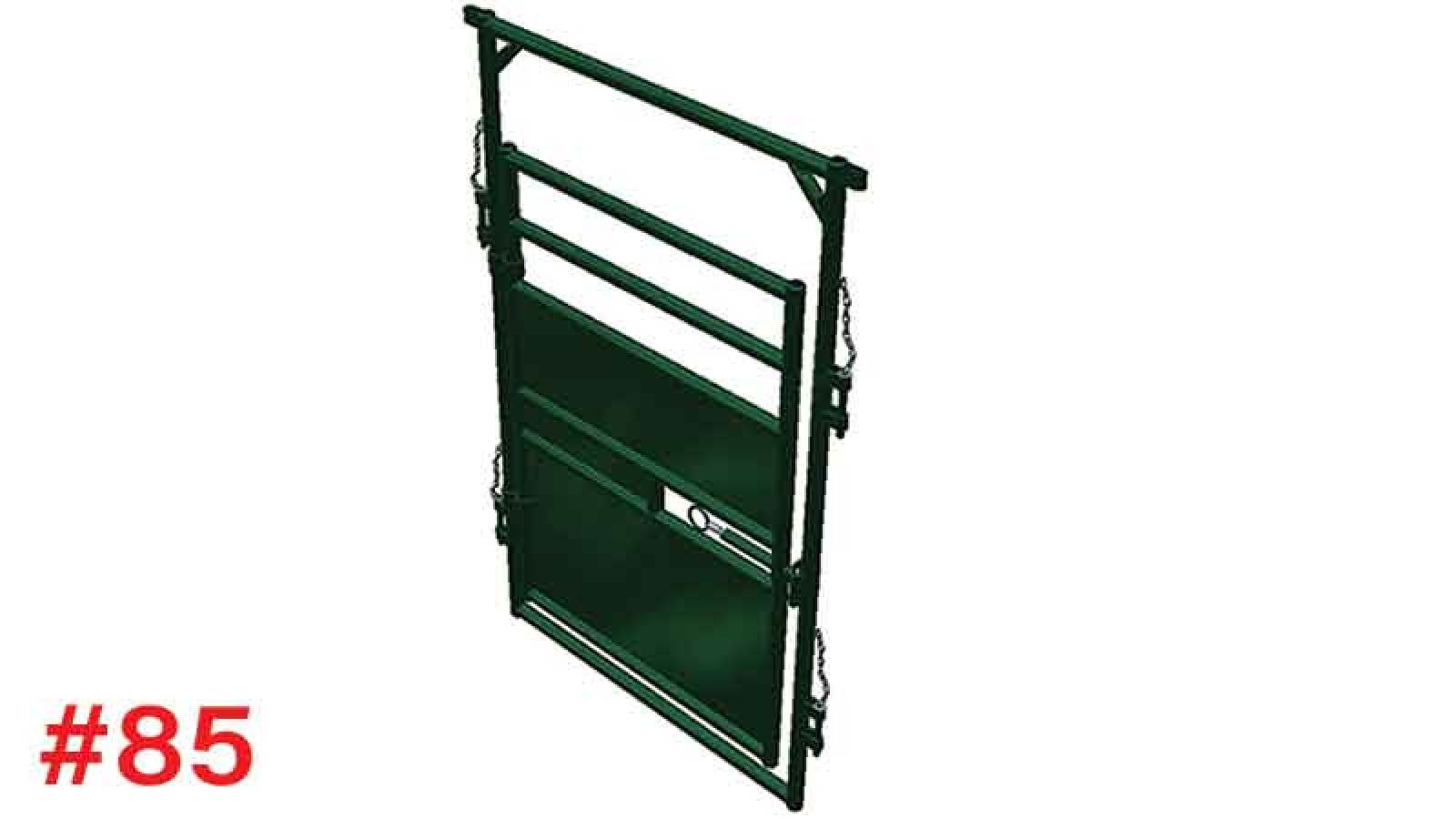

85 4'-6" sheeted PASS Gate 66" 122
86 4'-6" sheeted PASS Panel 66" 95

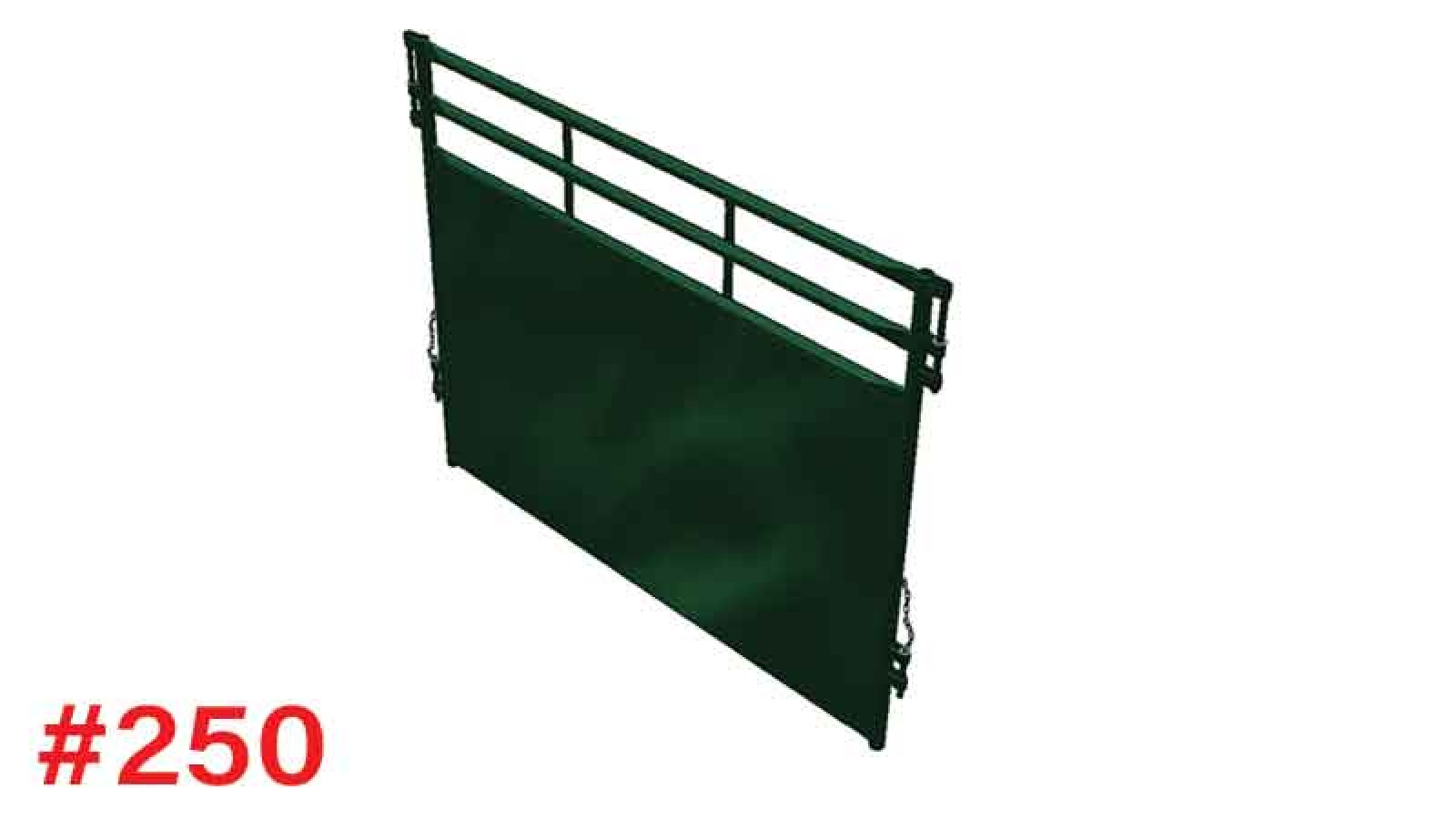

250 7' sheeted Alley Panel 66" 146

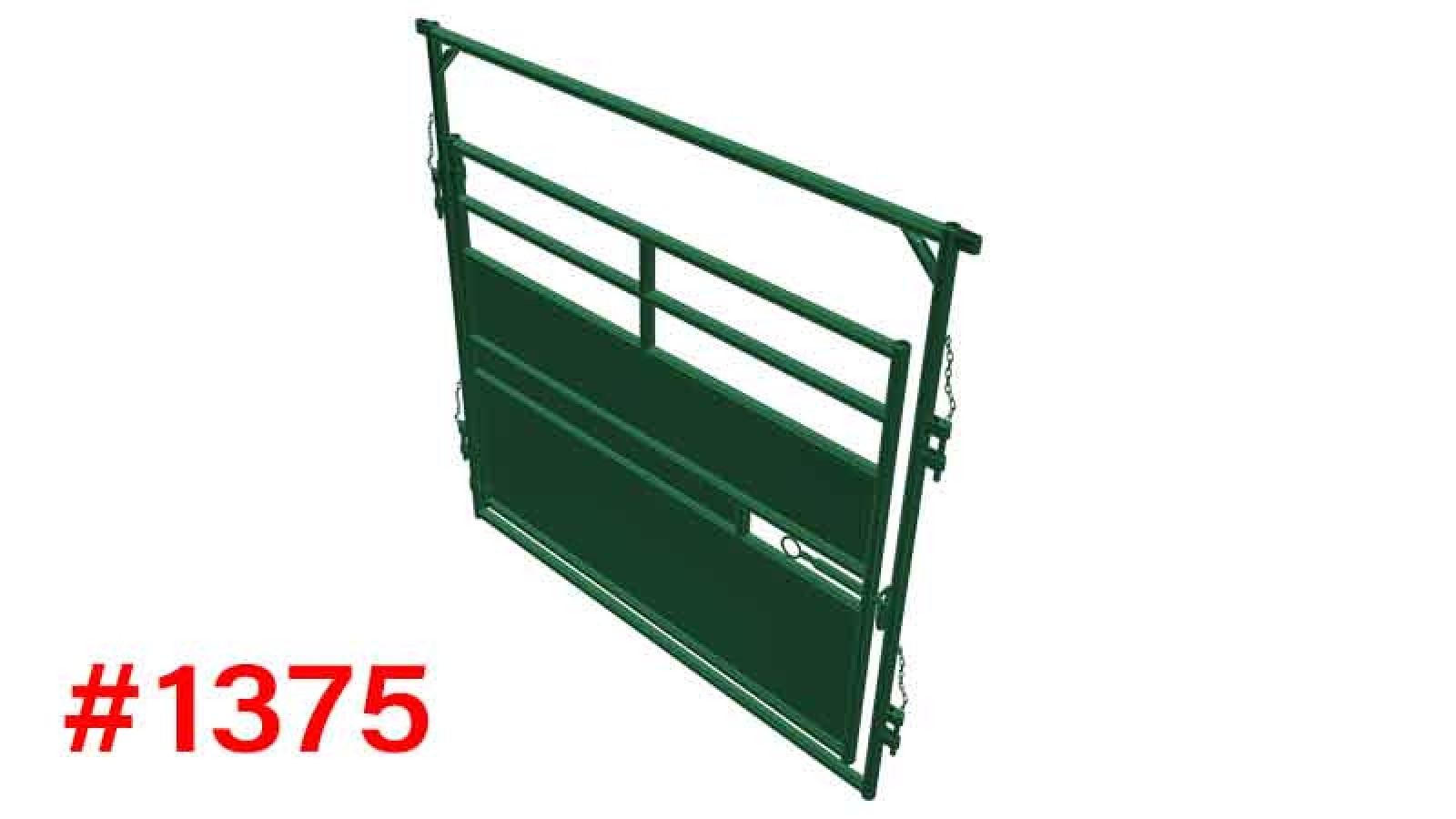

1375 7' sheeted Alley Frame with Gate 66" 208
1380 7' sheeted Alley Panel with Sort Gate 66" 209

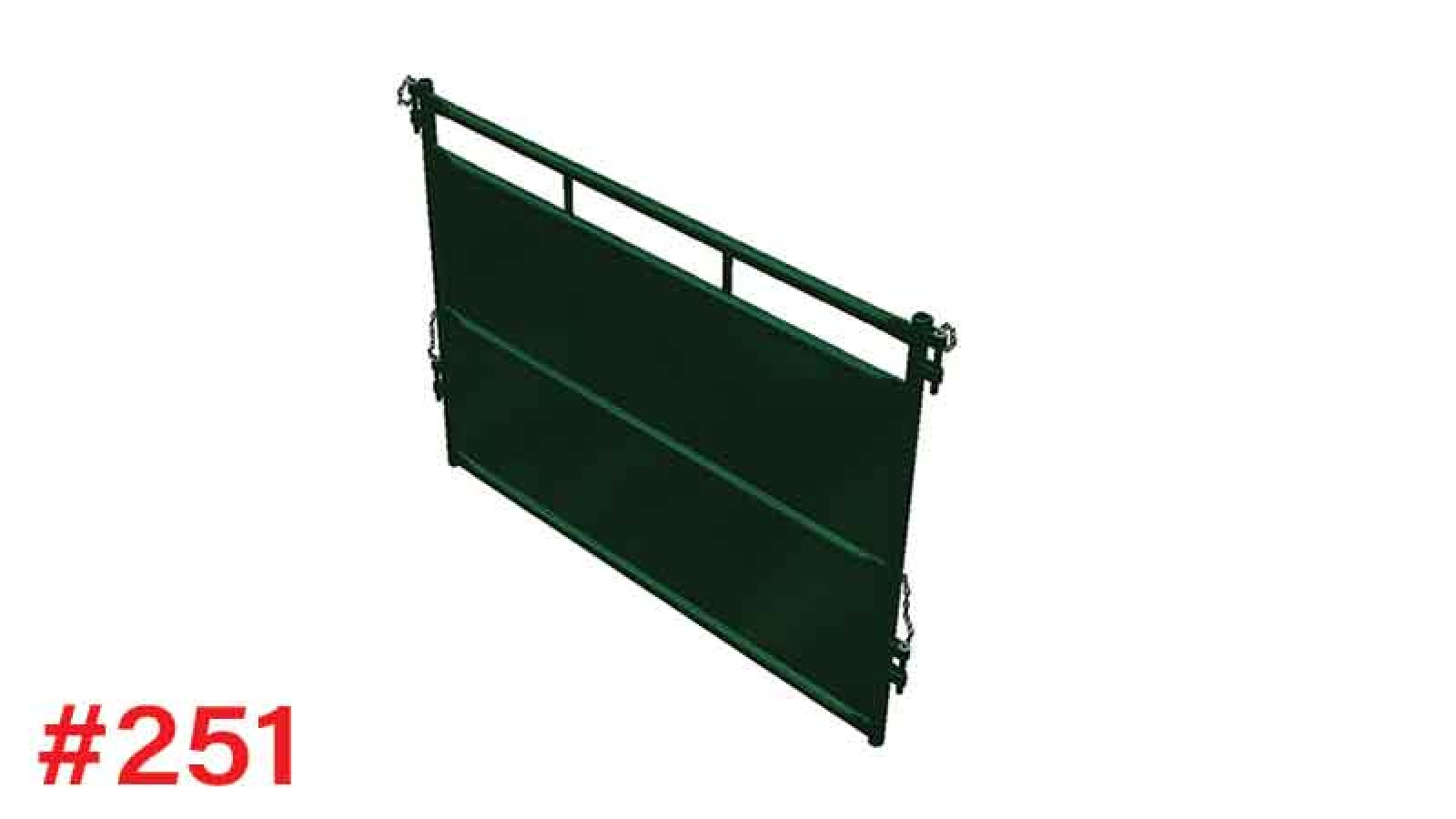

251 7' sheeted Alley Panel 60" 128

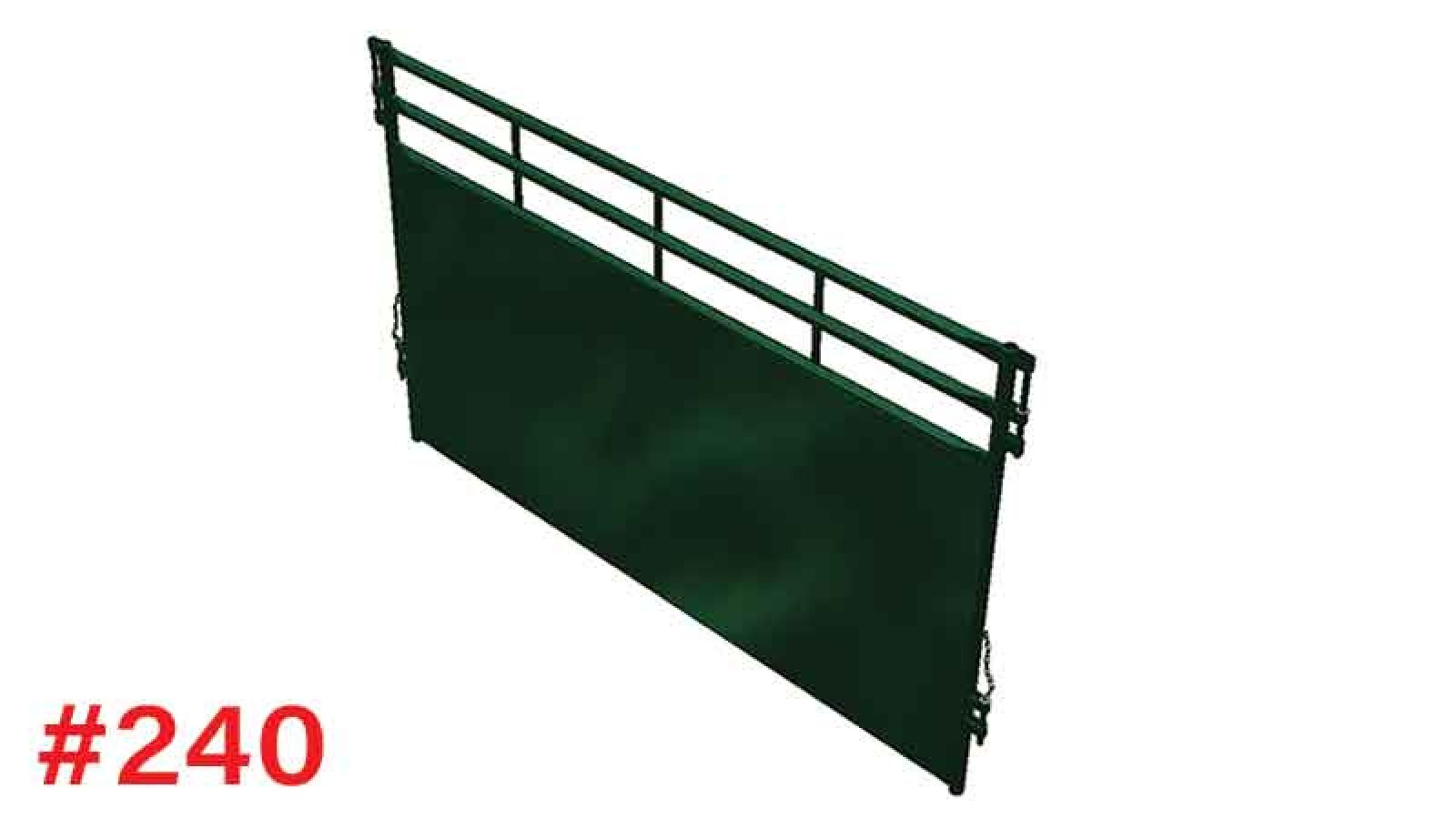

240 9'-3" sheeted Alley Panel 66" 194

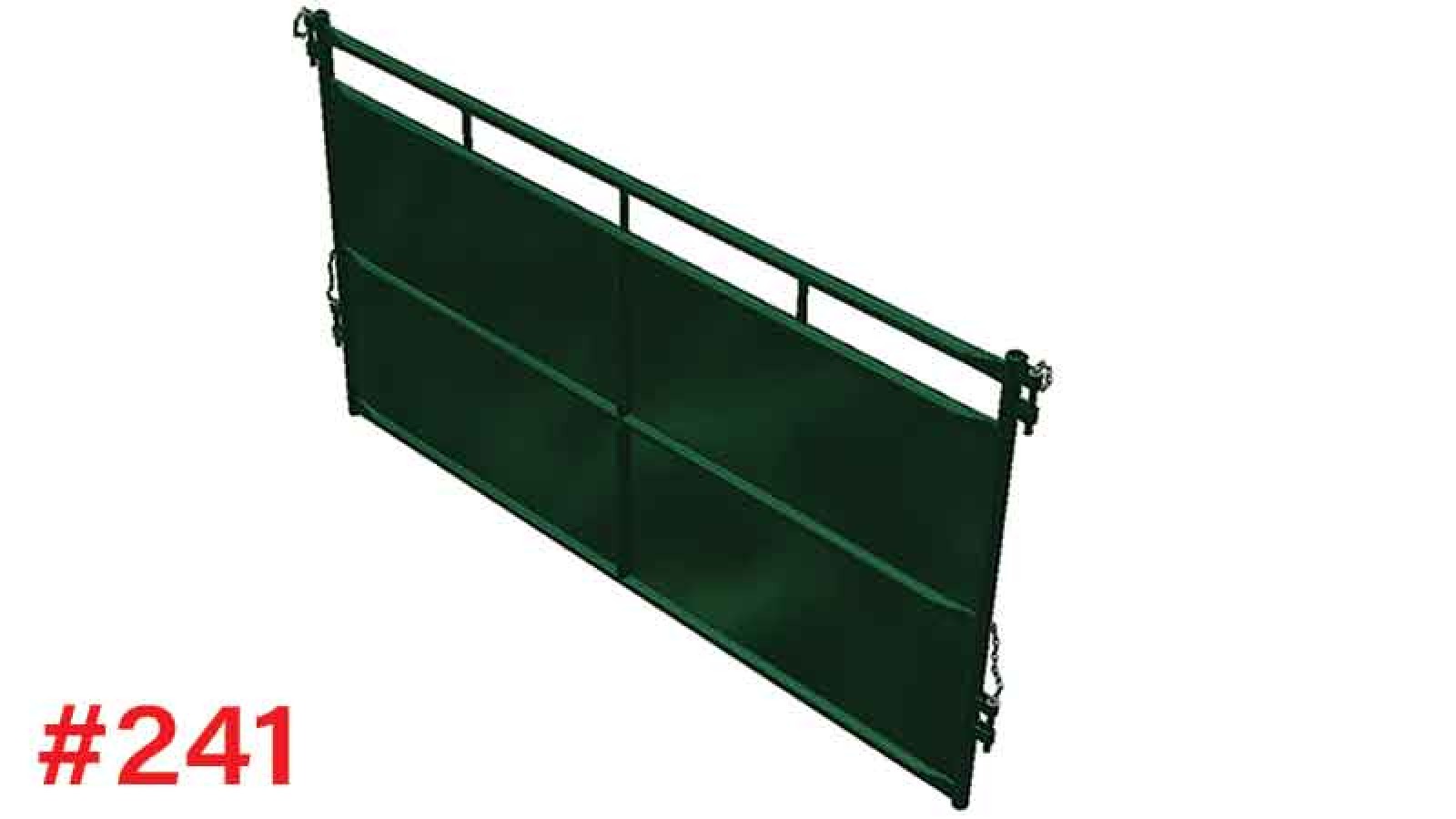

241 9'-3" sheeted Alley Panel 60" 177

In most situations, where an alley travels in a straight line, the S-Alley would be preferred over a straight sided alley. There are situations, however, where the introduction of a section of adjustable width straight alley can add value to your system. Because Hi-Hog’s alley components are based on a common connector system you are free to combine alley types to get the alley you require.

Below are four examples of situations where adding an adjustable straight alley section can improve your cattle handling system.

Ask an expert about Hi-Hog's adjustable straight alley.



 Improve animal site lines

Hi-Hog cattle handling system with straight alley section for better sight lines

Improve sight lines into the cattle working alley

Sometimes the introduction of a straight section of alley between the crowding tub and working alley can provide your livestock with a more welcoming view into the alley. Introducing the straight section in these cases will improve cattle flow and handling efficiency.


Add sorting to your alley

Straight alley section allows for sorting out of the cattle working alley

Add a straight alley section and sort out of your cattle working alley

Two of Hi-Hog’s straight alley options include a panel with a sorting gate. This will allow you to introduce a sorting section into your alley. Often used to sort out to a calf table or loading chute


Ask an expert about Hi-Hog's adjustable straight alley.

Adjust the alley length

Add a short straight section to your alley to avoid site obstructions

A short straight alley section can shift your alley to avoid obstacles

If you have specific measurements that your alley has to fit, then adding a straight alley section may help you reach your target or avoid obstacles.


Improve Cattle Flow

When combining S-Alleys with U-Alleys, transition with a straight alley section

Improve cattle flow with a straight alley transition

When you combine an S-Alley with a U-Alley you can improve flow by adding an adjustable straight alley section between the two curved alleys.




 Ask an expert about Hi-Hog's adjustable straight alley.

Alternate terms:
Working Alley: Cattle Race, cattle run, cattle chute,
Cattle Handling: Animal Husbandry
Cattle Squeeze: Cattle Crush
Calf Alley: Calf race
Calf Table: Tipping Table, Calf Cradle
