Item Number: Calf Alley Parts #59, 60, 243

Hi-Hog offers two 18" wide, fixed width alley spreaders, and a sheeted calf alley panel to create an alley specifically for handling calves or small livestock.

ITEM # DESCRIPTION WEIGHT (LBS)
59 18" Non-Adjustable Calf Alley Spreader with lift-up gate 47
60 18" Non-Adjustable Calf Alley Spreader with side-tilt gate 56
3330 18" Non-Adjustable Calf Alley Spreader 29
243 110 3/16" x 60" Calf Alley Panel 129
244 110 3/16" x 60" Calf Alley Panel with man gate 152

Add convenience to your calf handling with Hi-Hog's calf alley. Choose from three 18" wide calf alley spreaders.

  • Calf alley spreader with lift up gate (item 59), includes a rope to operate the gate without standing beside the gate.
  • Calf alley spreader with side tilt gate (item 60) provides more height for those who wish to push the calves in the alley.
  • Calf alley spreader - plain (item 3330).

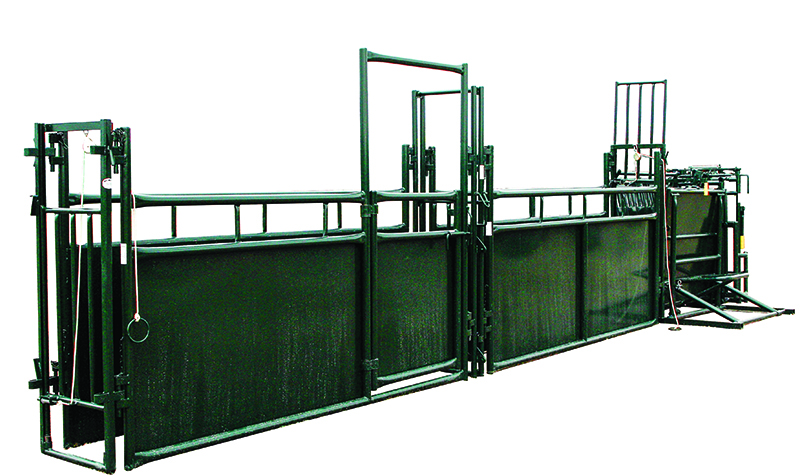

Hi-Hog calf alley

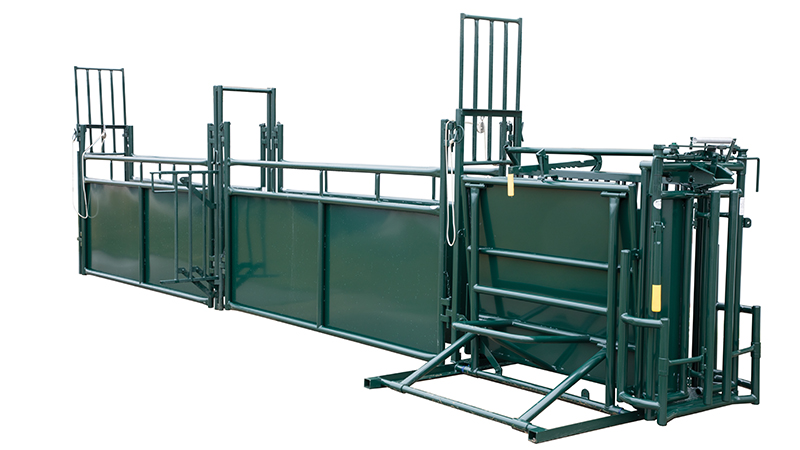

Sample calf alley

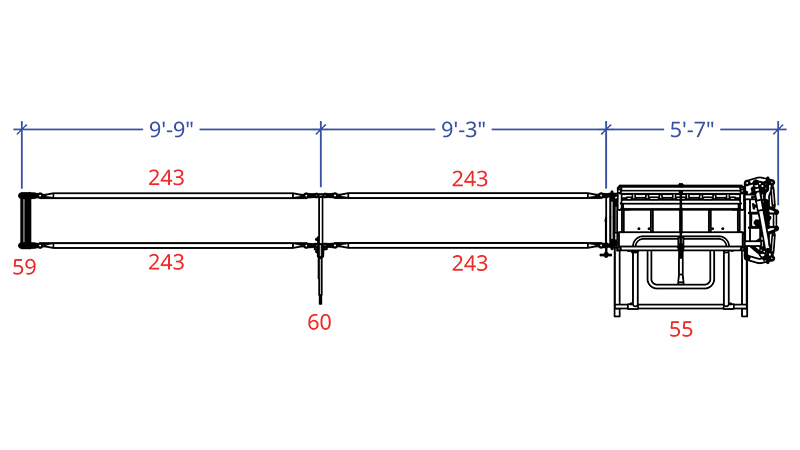

Calf alley plan view

Plan view of a typical Hi-Hog calf alley

The sheeted side panels help to keep your calves focused on the path forward while keeping nose and toes safely inside. The sheeted panels are low enough for you to easily reach your calves.

Hi-Hog calf working alleySpecs

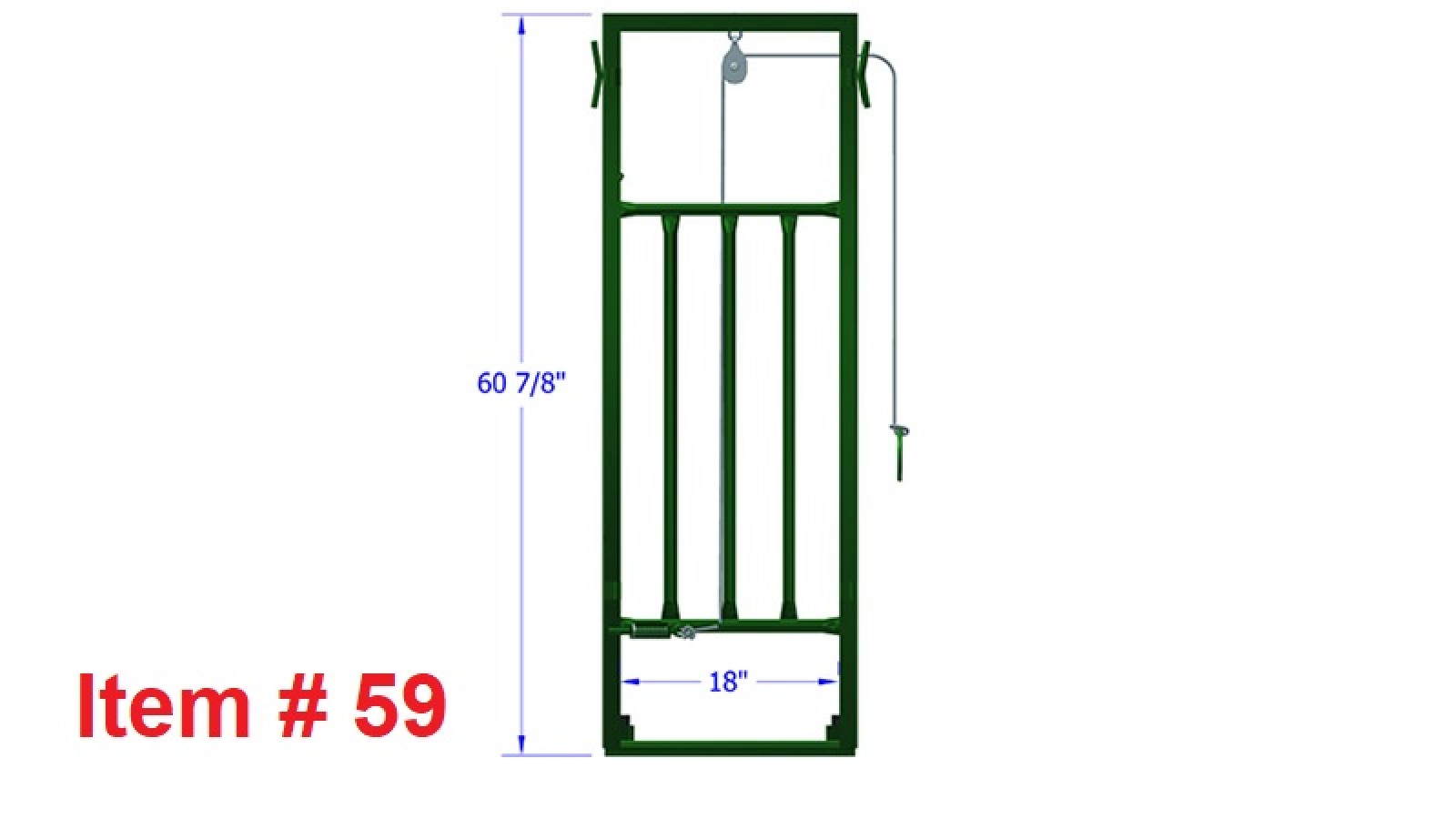

Item 59

  • 47.5” interior clearance height with gate raised
  • 18” wide inside
  • 60” frame height with gate closed
  • 83” frame height with gate raised and locked
  • 90” clearance height required to raise gate
  • Gate locks open and closed

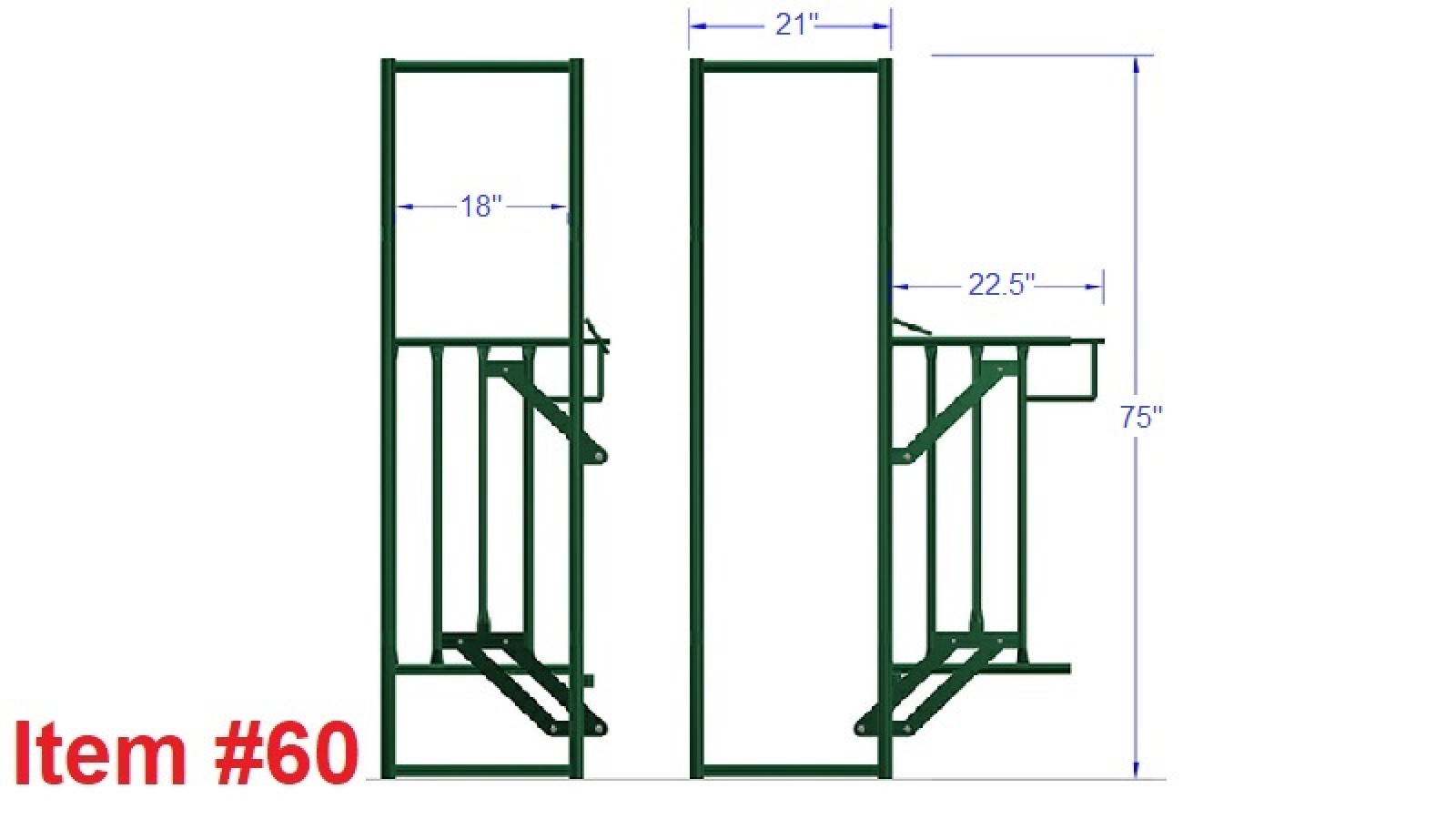

Item 60

  • 70.25” interior clearance height
  • 18” wide inside
  • 72” frame height
  • 22.5” clearance required on side of alley to open tilt gate
  • Gate locks open and closed

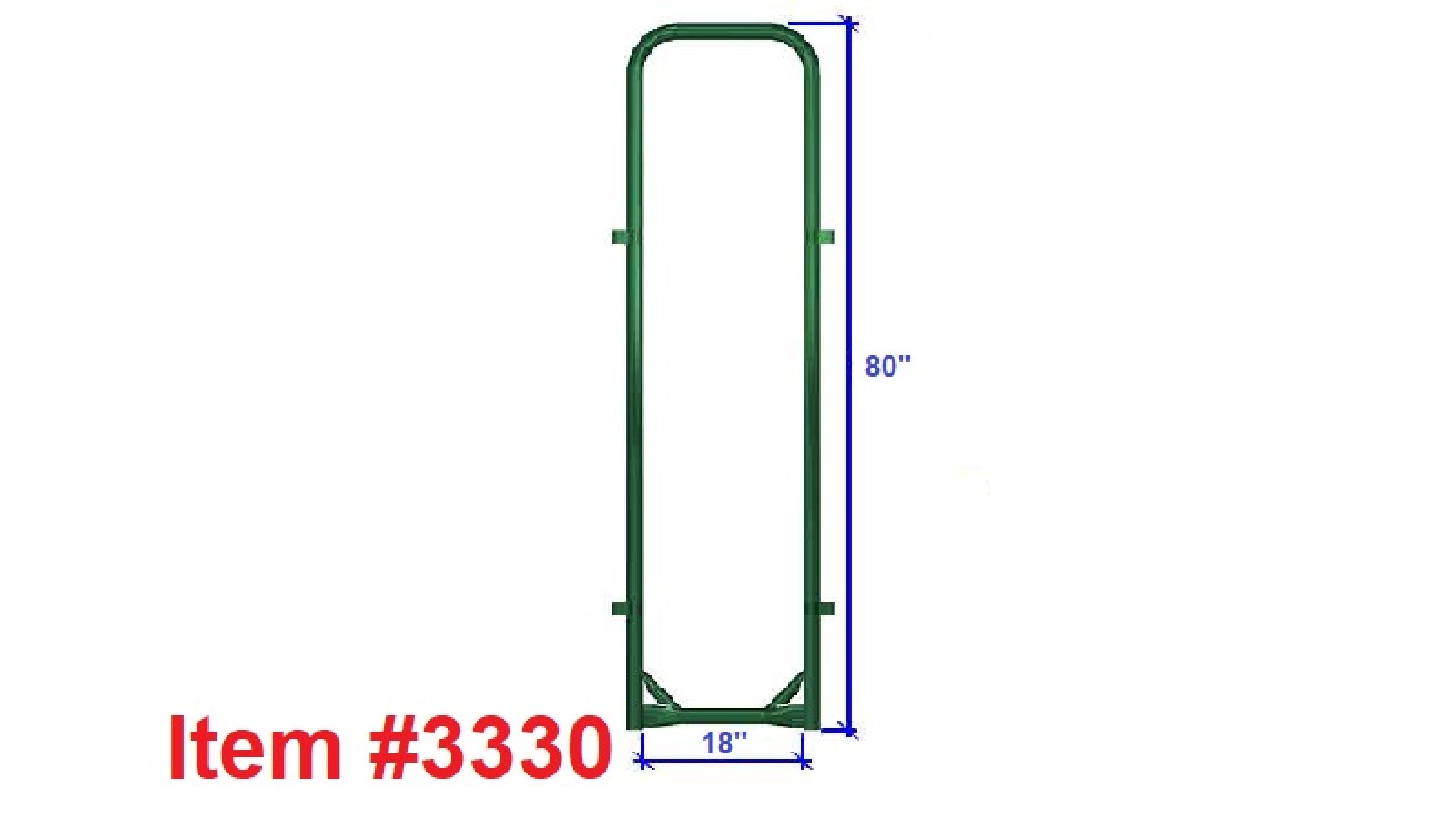

Item 3330

  • 78.1” interior clearance height
  • 18” wide inside
  • 80” frame height

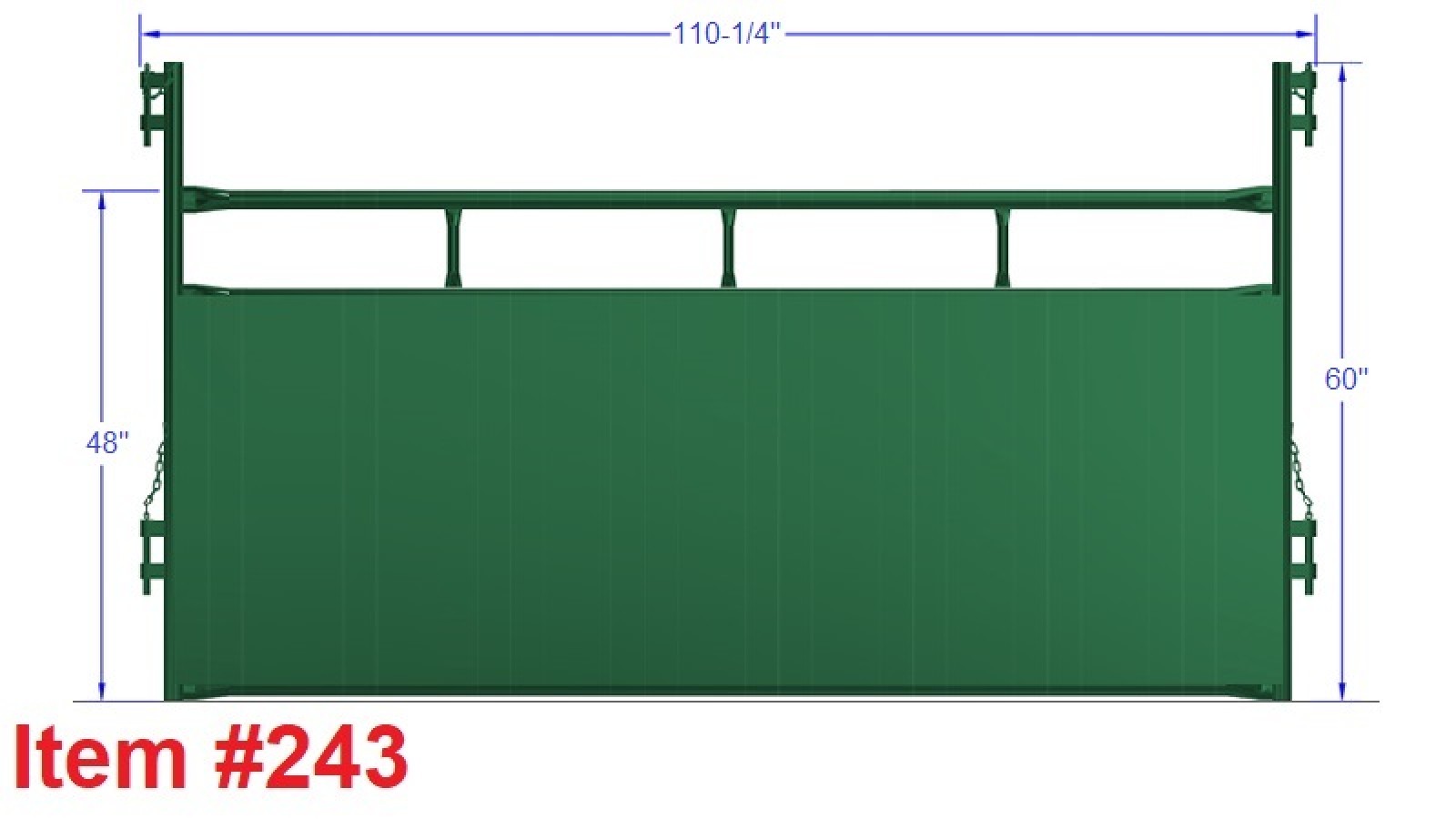

Item 243

  • Calf Alley Panel
  • 110" to outside of connectors
  • 48" high

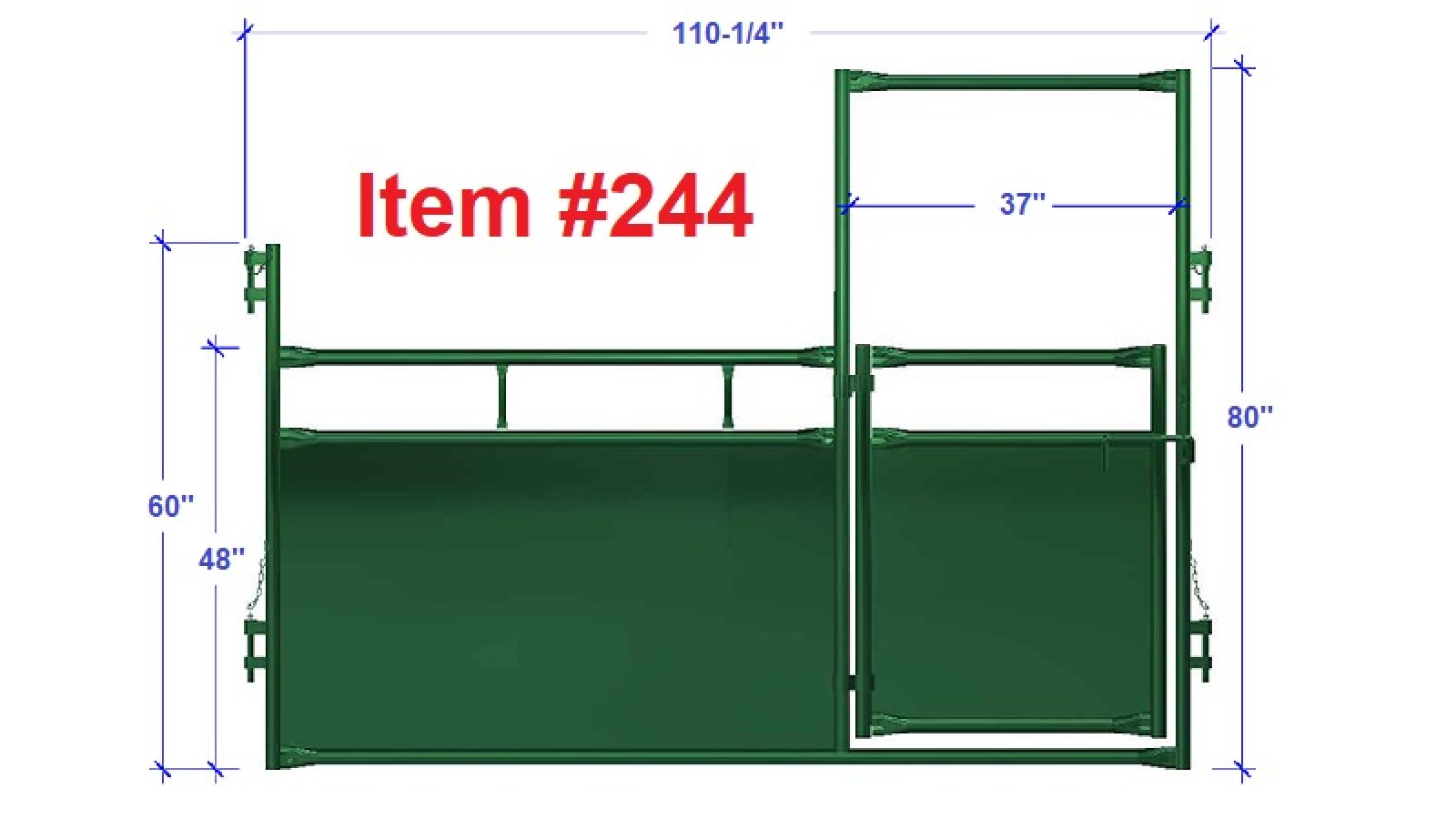

Item 244

  • Calf Alley Panel with access gate
  • 110" to outside of connectors
  • 48" high panel

The calf alley is most commonly used to direct calves to a calf tipping table (item 55) or to a loading chute (item 75, or 76). This alley can also be used for other small stock like sheep and goats.
