Item Number: Calving Trimming Chute #125 (Calving Chute)

The versatile #125 Calving / Trimming Chute is very popular with
Vet Clinics, 4-H’ers, and Ranchers.

an enclosure for birthing calves and grooming cows

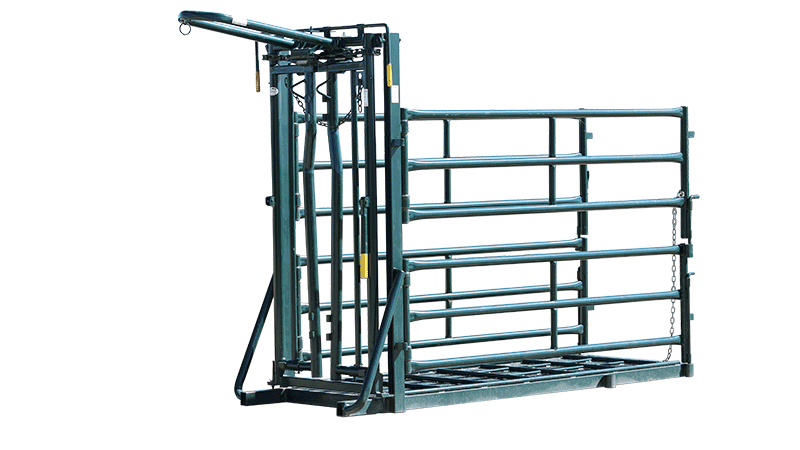

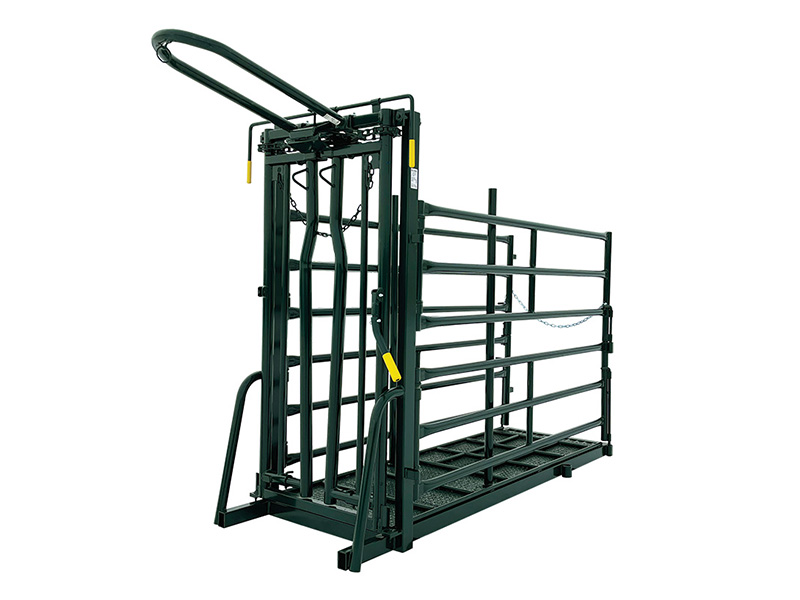

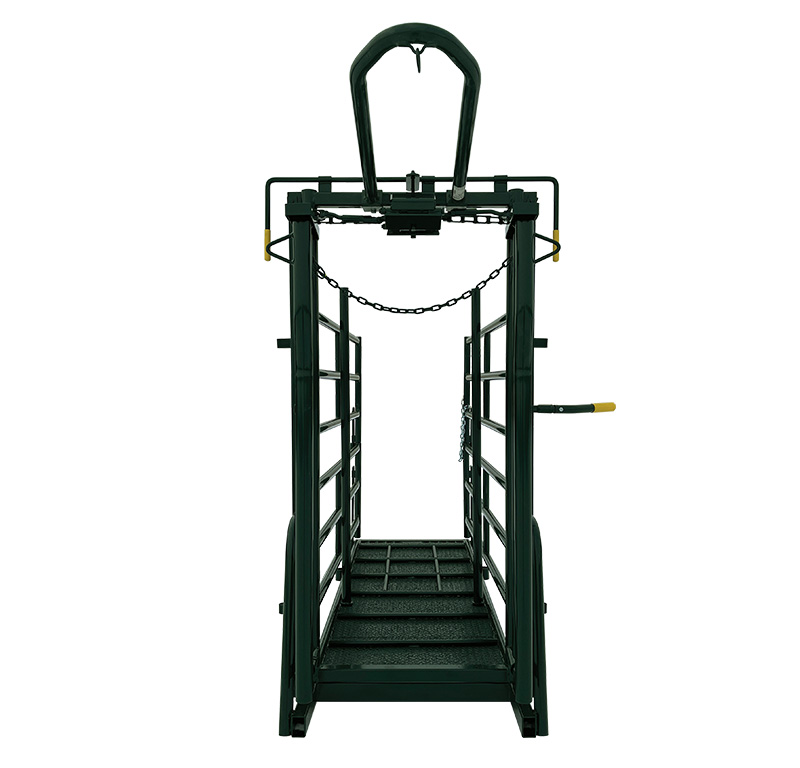

#125 Calving / Trimming Chute with Self Catching Headgate

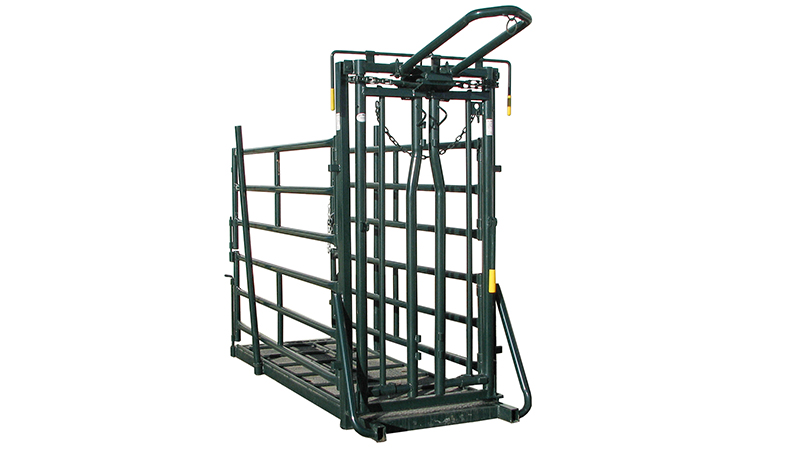

Calving Chute / Trimming Chute

Item # Description Weight (lbs)
125 Calving / Trimming Chute - complete


Ask an expert about Hi-Hog's #125 Calving / Trimming Chute

Ideal for calving heifers, grooming show cattle, or performing general treatments such as pregnancy tests, semen checks, embryo transfers, C-Sections, starting calves, milking out cows, treating utters, or treating feet.

The #125 Calving Chute includes all the core features of our larger #1130 Calving Enclosure. Like the calving enclosure the #125 Calving Chute provides full access to both sides of your animal. The included connectors make it easy to integrate this chute with existing Hi-Hog penning.

Cattle Chute used for Grooming Cattle for shows and also For Birthing Calves.


  • The Calving Chute comes with our rugged Self-Catch Calving Headgate (Item 110). This headgate is based on our Parallel Axis Squeeze Chute Headgate (Item 100) and is identical to the headgate on our Calving Enclosure (Item 1130)
  • The self-catch headgate sets quickly with a simple chain set. As long as the chain is set to the correct width you should never miss an animal
  • The headgate opens full width in, and full width out, to avoid hip-lock
  • The headgate has three adjustments on each side, at both the top and the bottom. The makes it a very versatile chute capable of holding new born calves right up to mature bulls
  • The #110 Calving Headgate now comes with a dual position Handle. The curved handle position is recommended when used on the #125 Calving / Trimming Chute, except if a panel is connected directly off the side of the frame connectors.

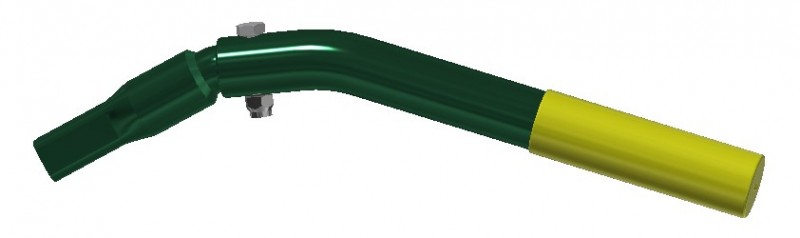

a handle for opening and closing a calving headgate

#110 Calving Headgate Handle in Curved Position For #125 Calving Chute

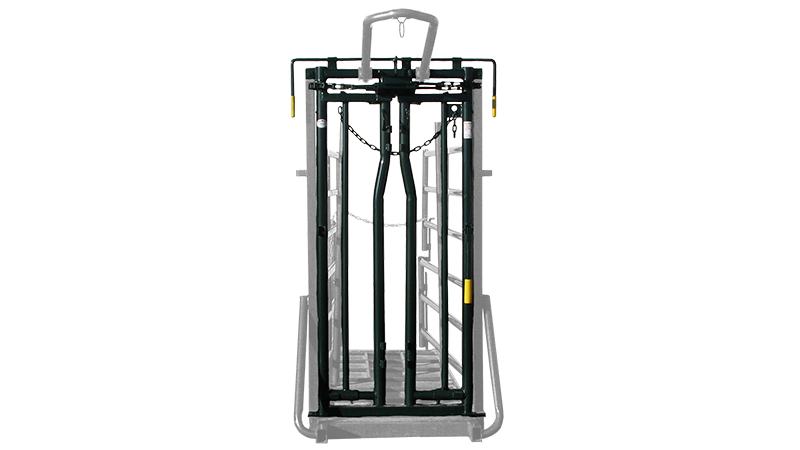

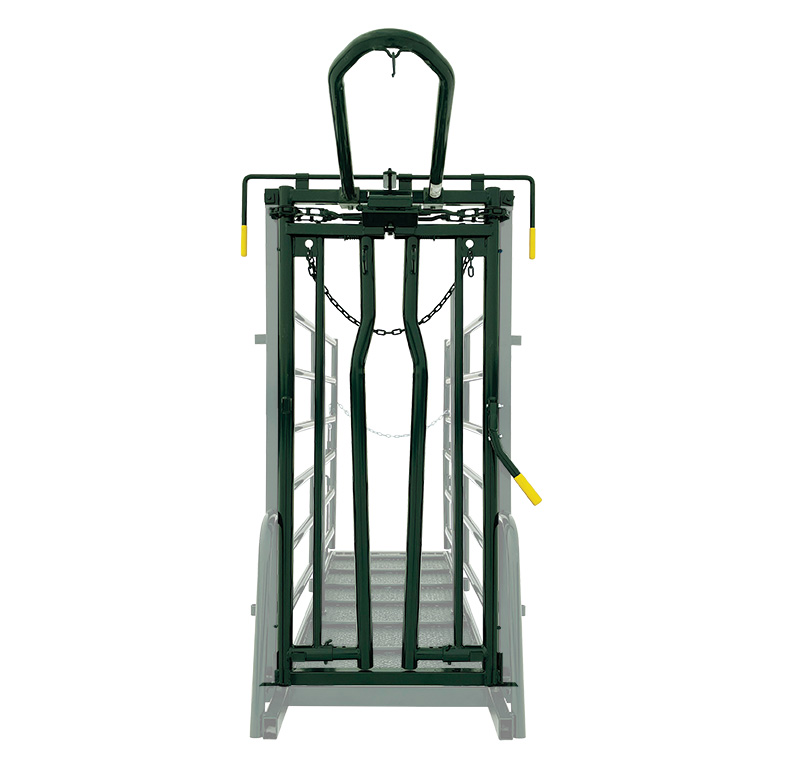

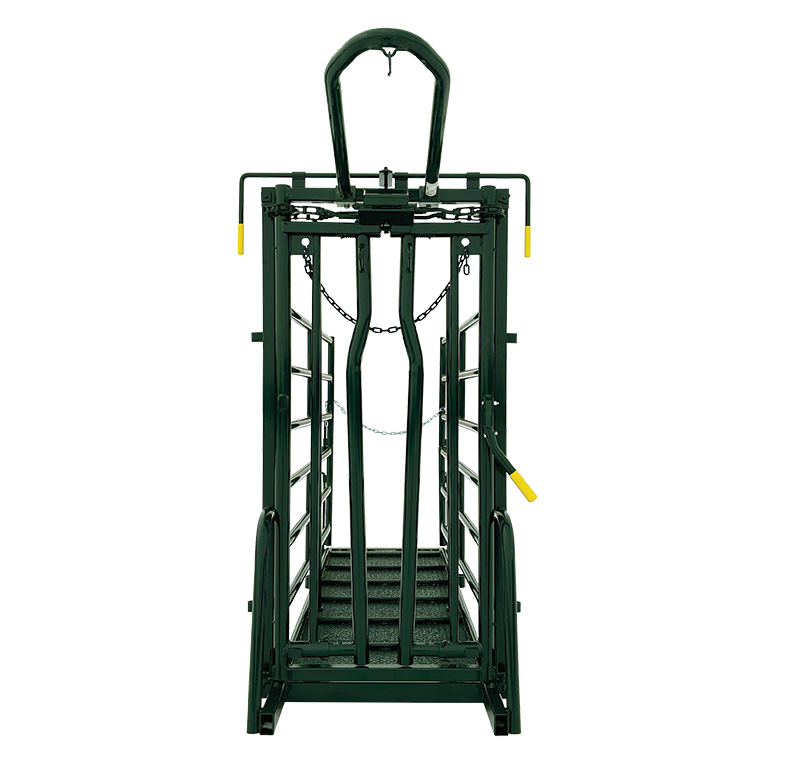

A self catching headgate, fastened inside a calving / trimming chute.

#110 Self Catching Calving Headgate Is Included

  • If you're preparing unbroken livestock for show you will appreciate the included heavy duty head tie-up bar (Item 126).
A tie up bar for show cattle


Flexible Control

  • The chute includes a solid reinforced steel checker plate floor for superior durability
  • The floor includes heavy traction bars welded in two directions for livestock stability
  • Because the animal is standing on the floor they can’t run away with the chute
  • Ratchets in the rear of the calving chute floor allow the 66″ high side split panels to be safely and securely squeezed together to hold your animal centered in the chute
  • The included tail chain can be latched across the rear of the calving chute to hold your cow securely.Hi Hog calving chute - livestock trimming chute


Durability – Flexibility – Accessibility – Stability

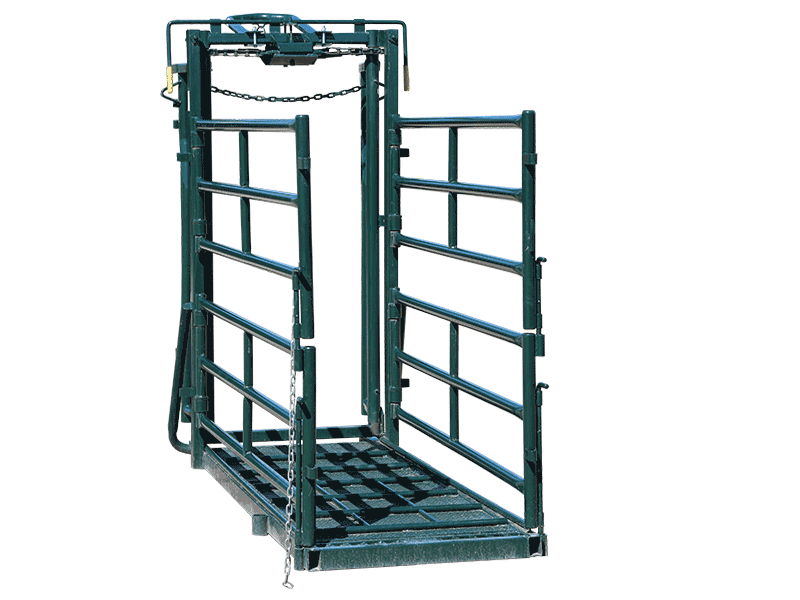

  • The chute includes four independent split panels hinged at the headgate
  • The upper and lower split panels can be latched together to act as one side panel
  • Swing the bottom panel out on either side of the chute to give access for a calf to get started on the cow
  • Swing all the side panels out and insert the included grooming posts in one of the two receivers on each side of the chute floor to have full access to your livestock for unrestricted trimming and grooming.

Ask an expert about Hi-Hog's #125 Calving / Trimming Chute

Integrates easily into your calving facility

    • There are enormous stresses where the headgate is attached to the steel floor which is why Hi-Hog has extended braces to provide additional durability
    • The Calving Chute comes with connectors on all four corners of the chute so you can connect with any of Hi-Hogs panels. This makes it possible to easily add panels to make a calving pen or to integrate this item in with your calving barn penning
    • Add a palpation cage to the back and this chute makes an inexpensive starter squeeze chute.

Many ranchers locate the Calving Chute where they can easily lead an animal such as in an existing alley way.

Check out some sample Calving Barn Designs

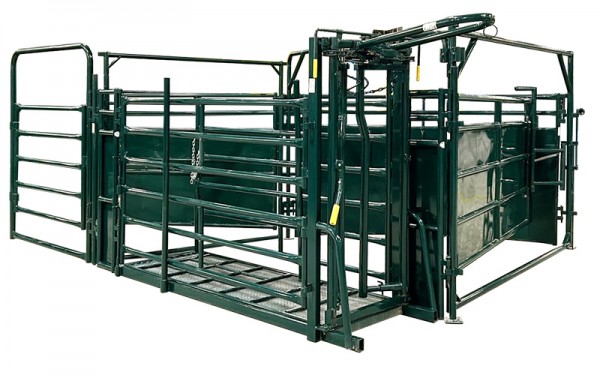

A corral designed to assist cows in birthing calves.

#125 Calving / Trimming Chute with Crowding Tub Attached

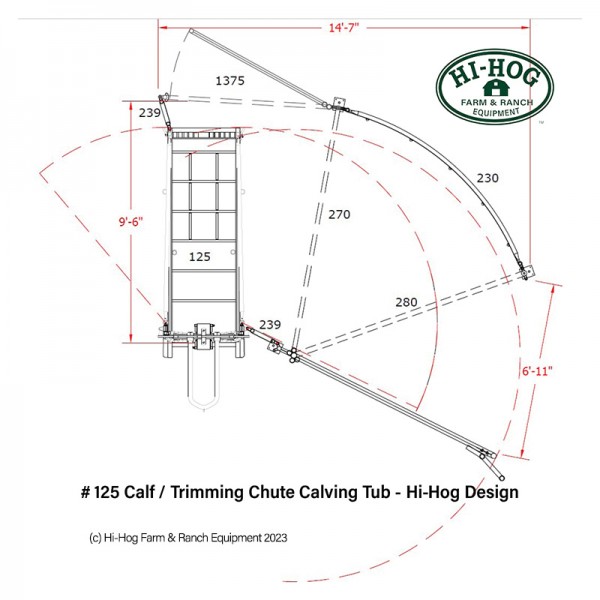

A corral to assist cows with the birthing of their calves

#125 Calf / Trimming Chute with Attached Crowding Tub

Item # Description Weight (lbs)


Calv/Trim Chute-Complete with Nose-Bar


239 (2)

1'6 x 5'6 Sheeted Alley Panel (2)



Pivot Gate c/w pin



Overhead Tub Spreader c/w pin



Tub Section - 10'-Curved



Tub Section Straight with 7' Gate


Alternate Terms:
Calving Chute: Grooming Chute, Livestock Treatment Chute, 4-H Chute

Ask an expert about Hi-Hog's #125 Calving Chute with Crowding Tub
