Item Number: U-Spreaders

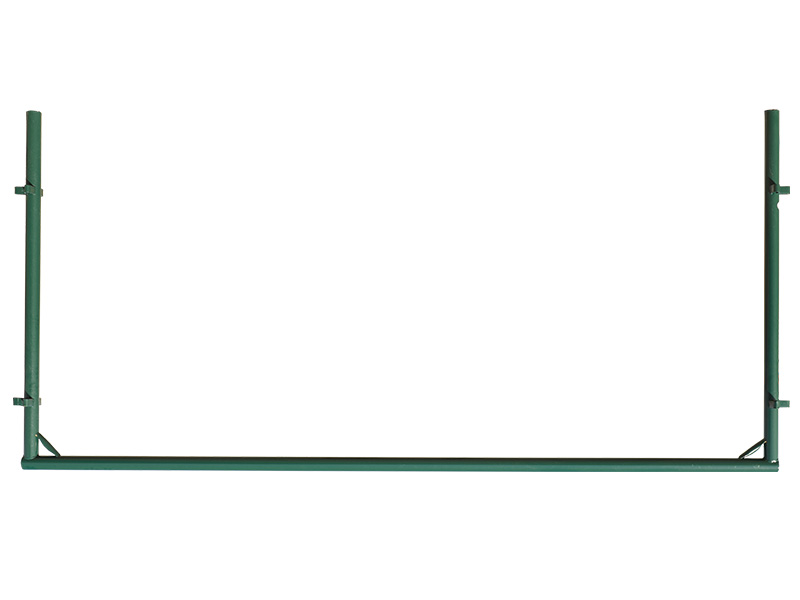

Like the U-Frame, the U-Spreader allows you to fix the width of an alley without using posts-in-the-ground or overhead spreaders. An excellent option for livestock corrals and rodeo facilities. Available in widths from 4’ to 14’. Only available in heights of 6’.

Item Description Weight (lbs.)

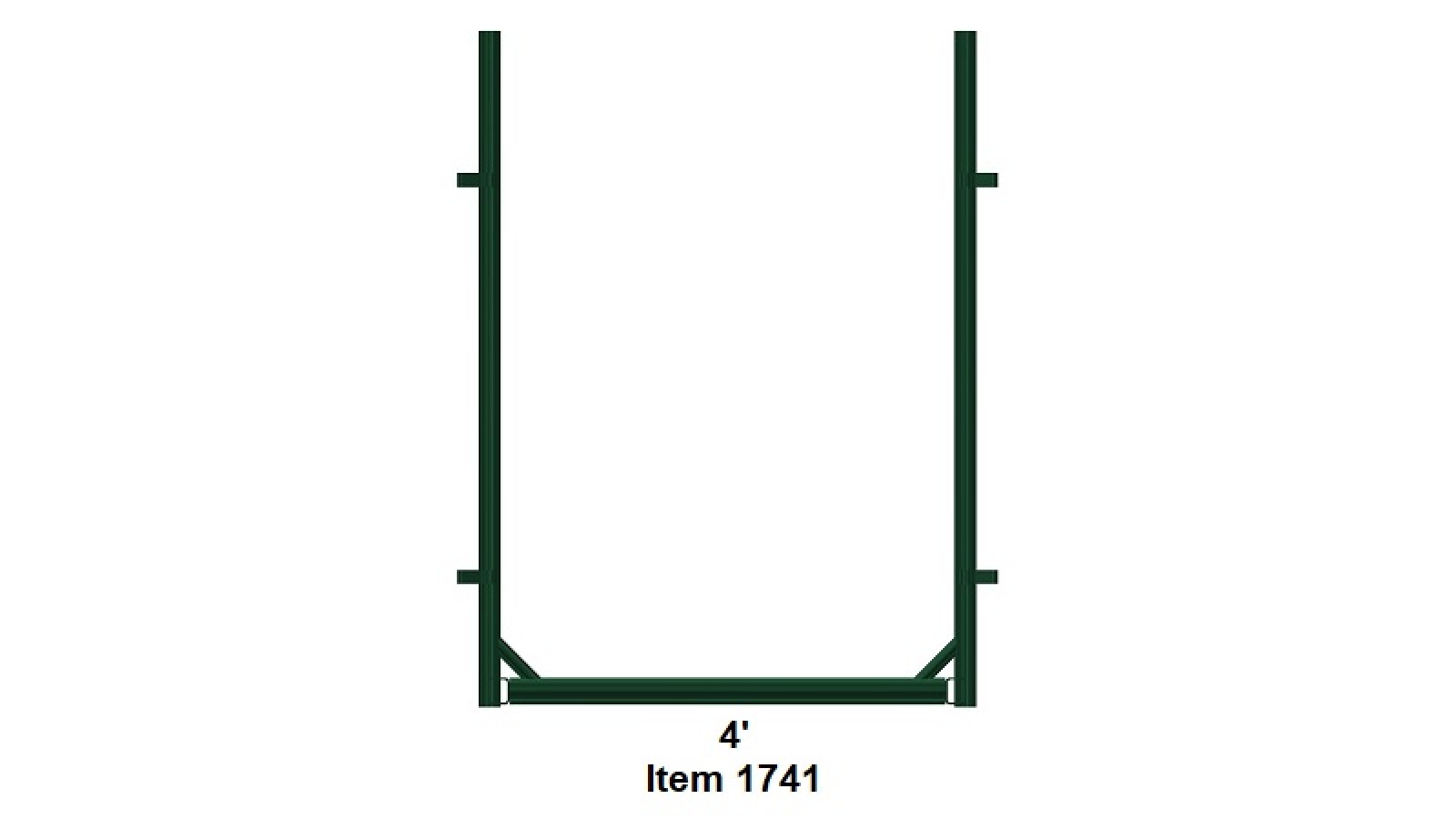

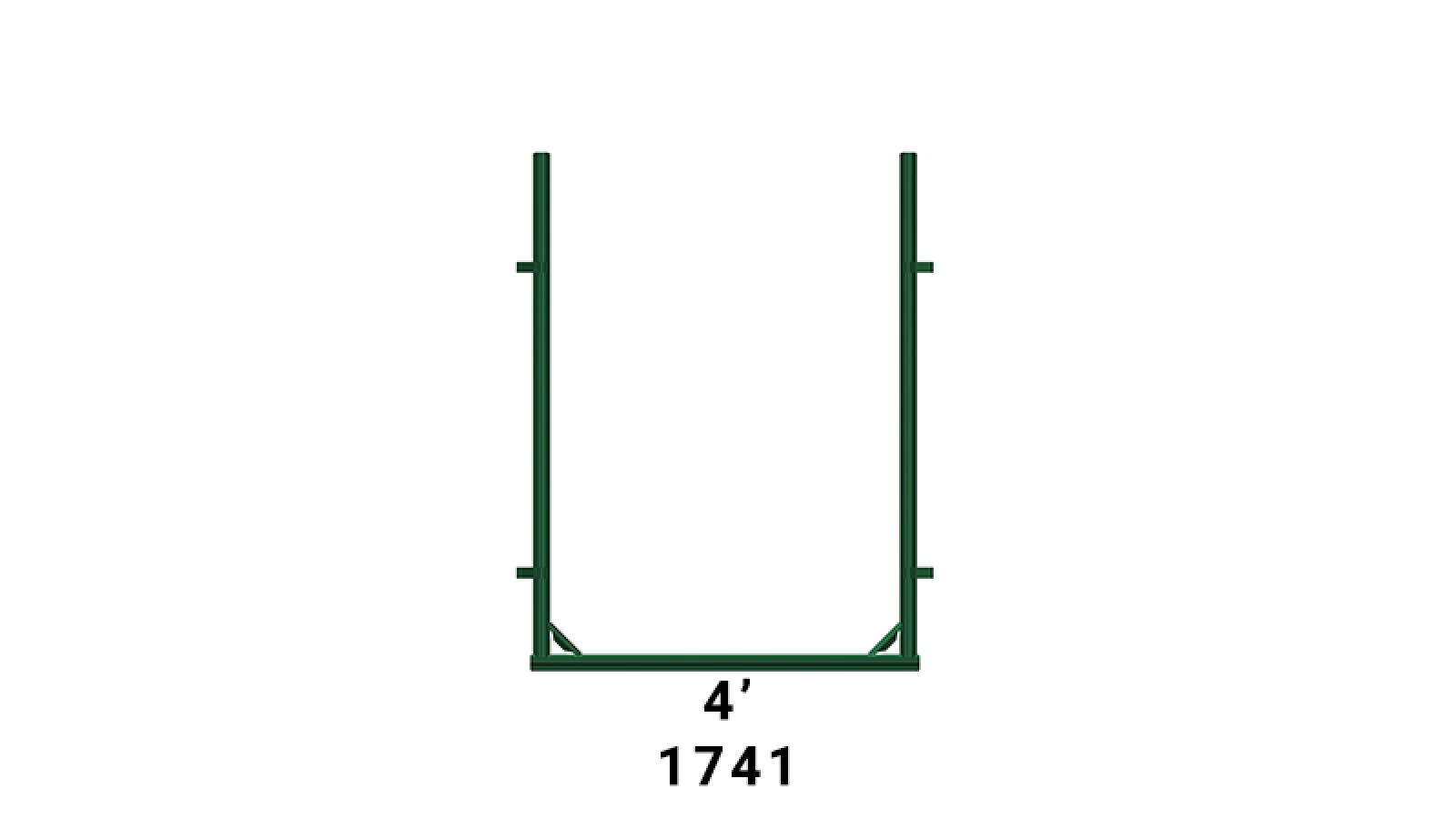

1741 4' long x 6' high U-Spreader 74

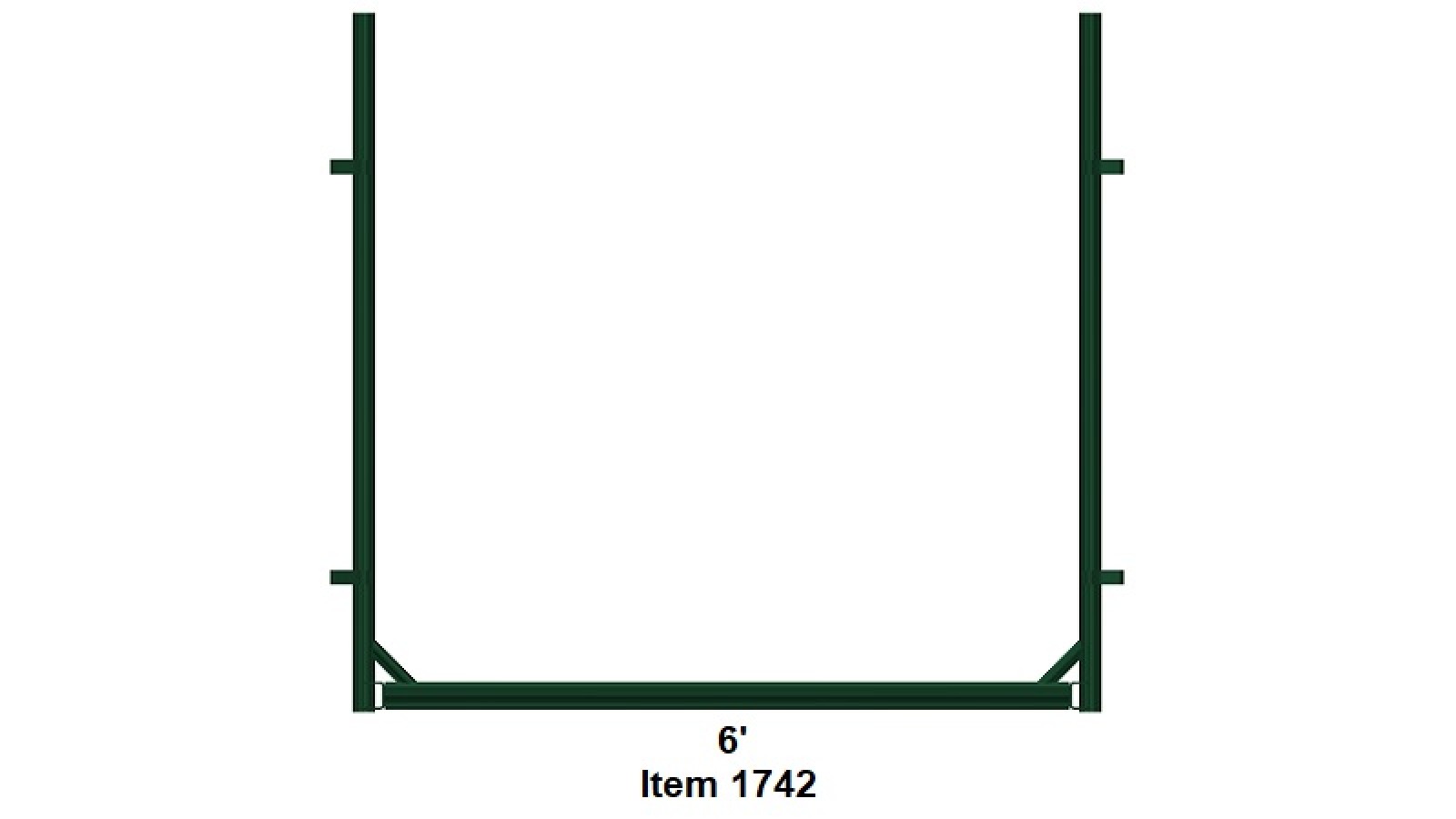

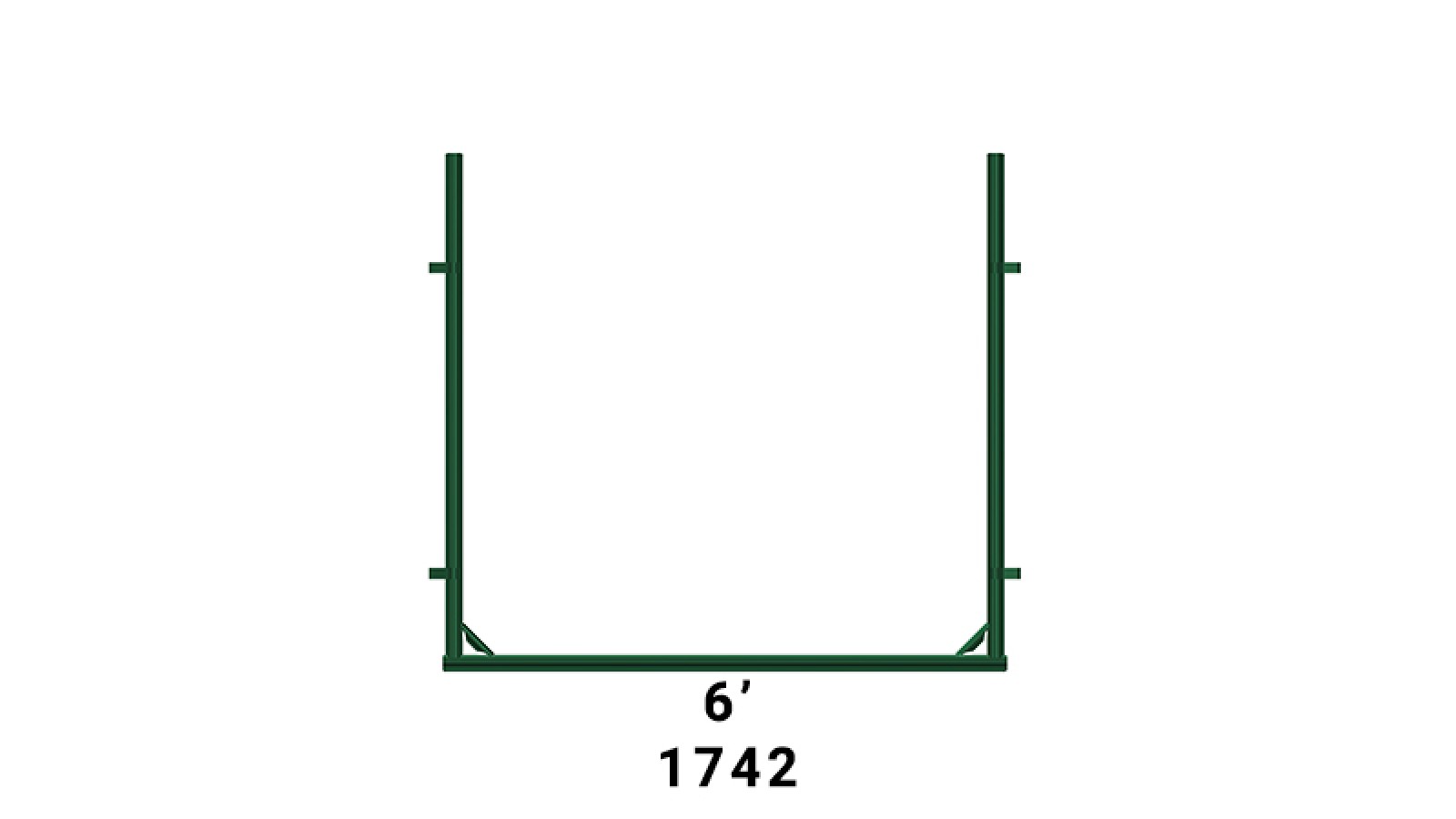

1742 6' long x 6' high U-Spreader 86

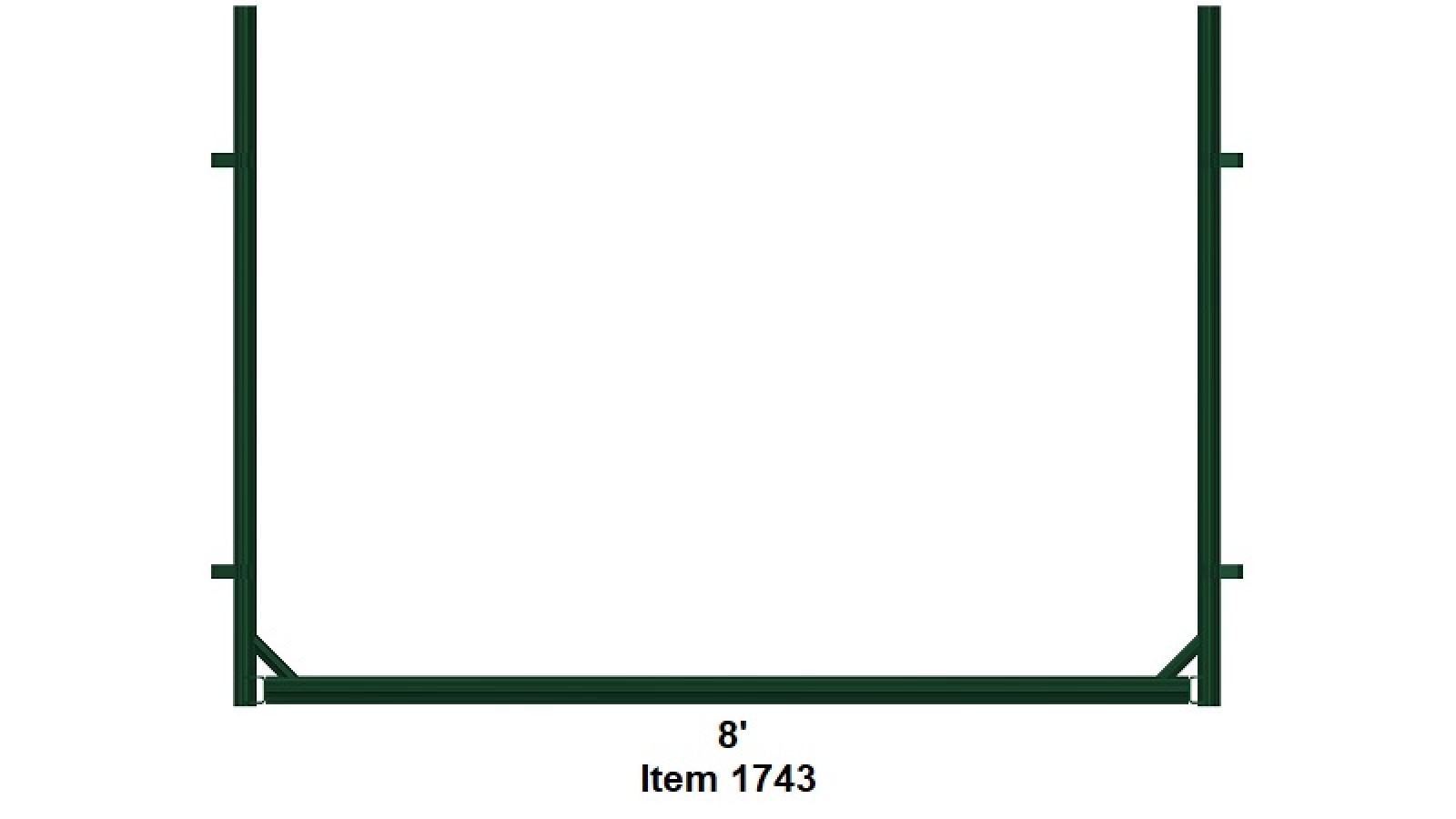

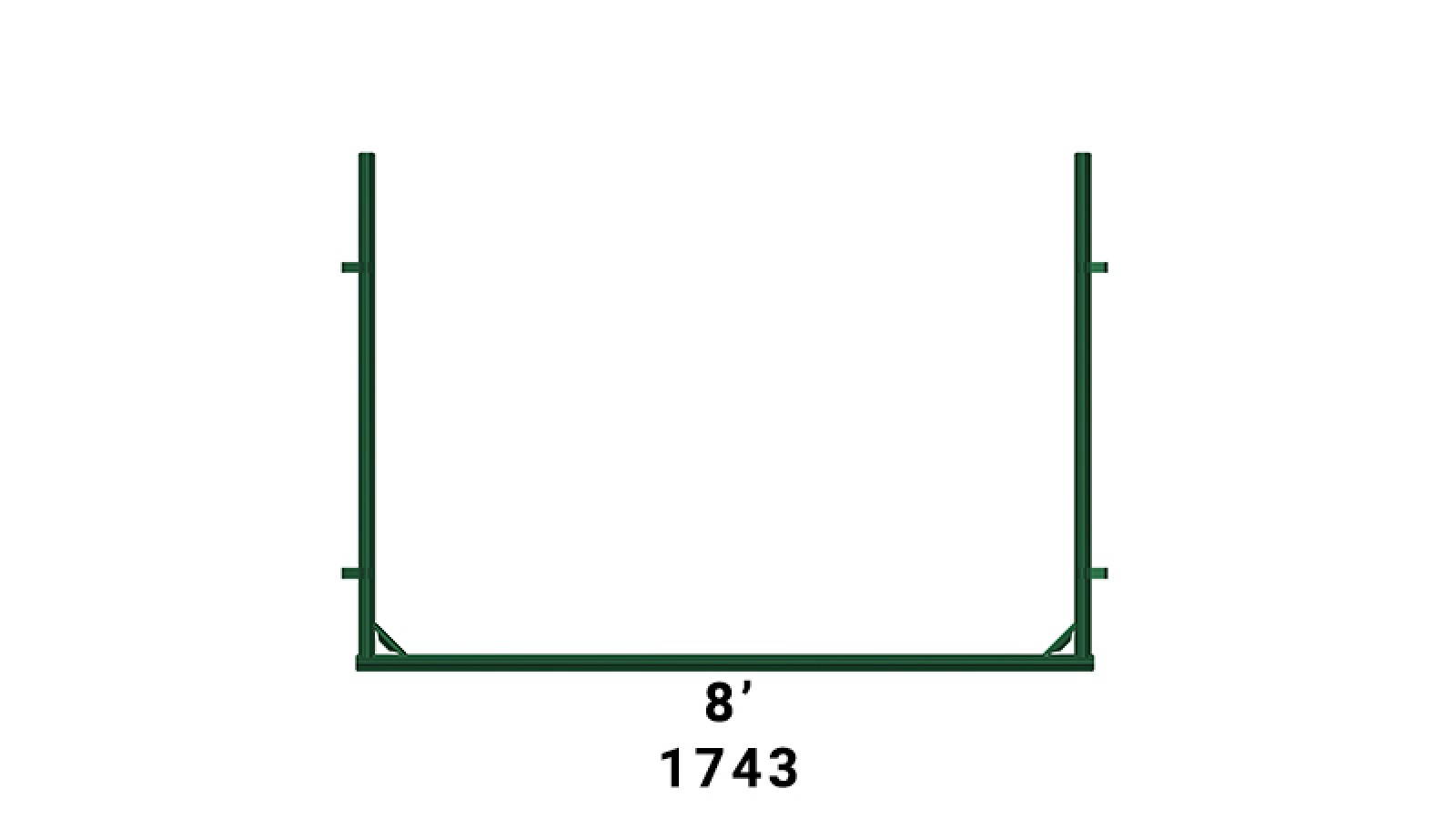

1743 8' long x 6' high U-Spreader 97

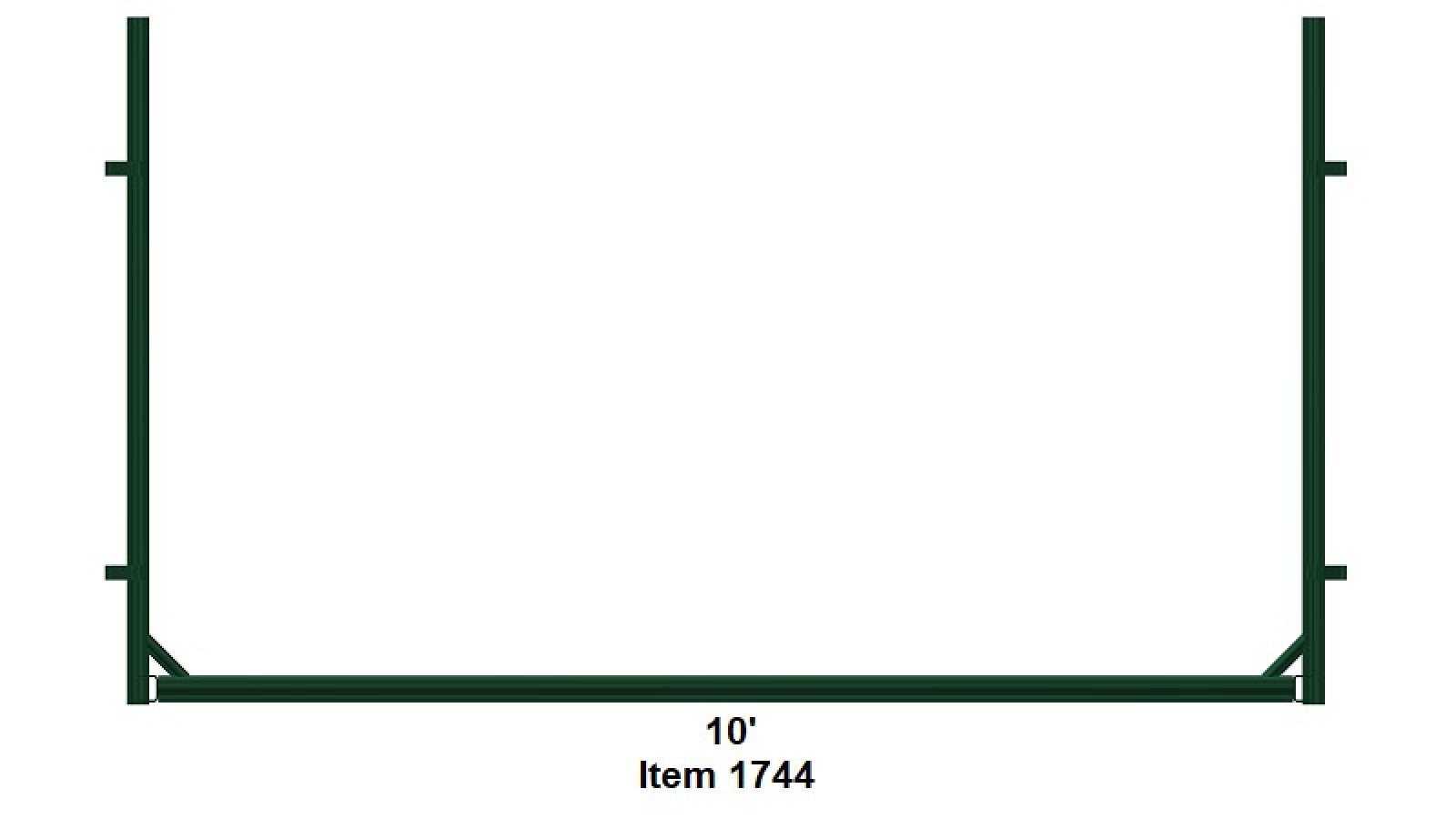

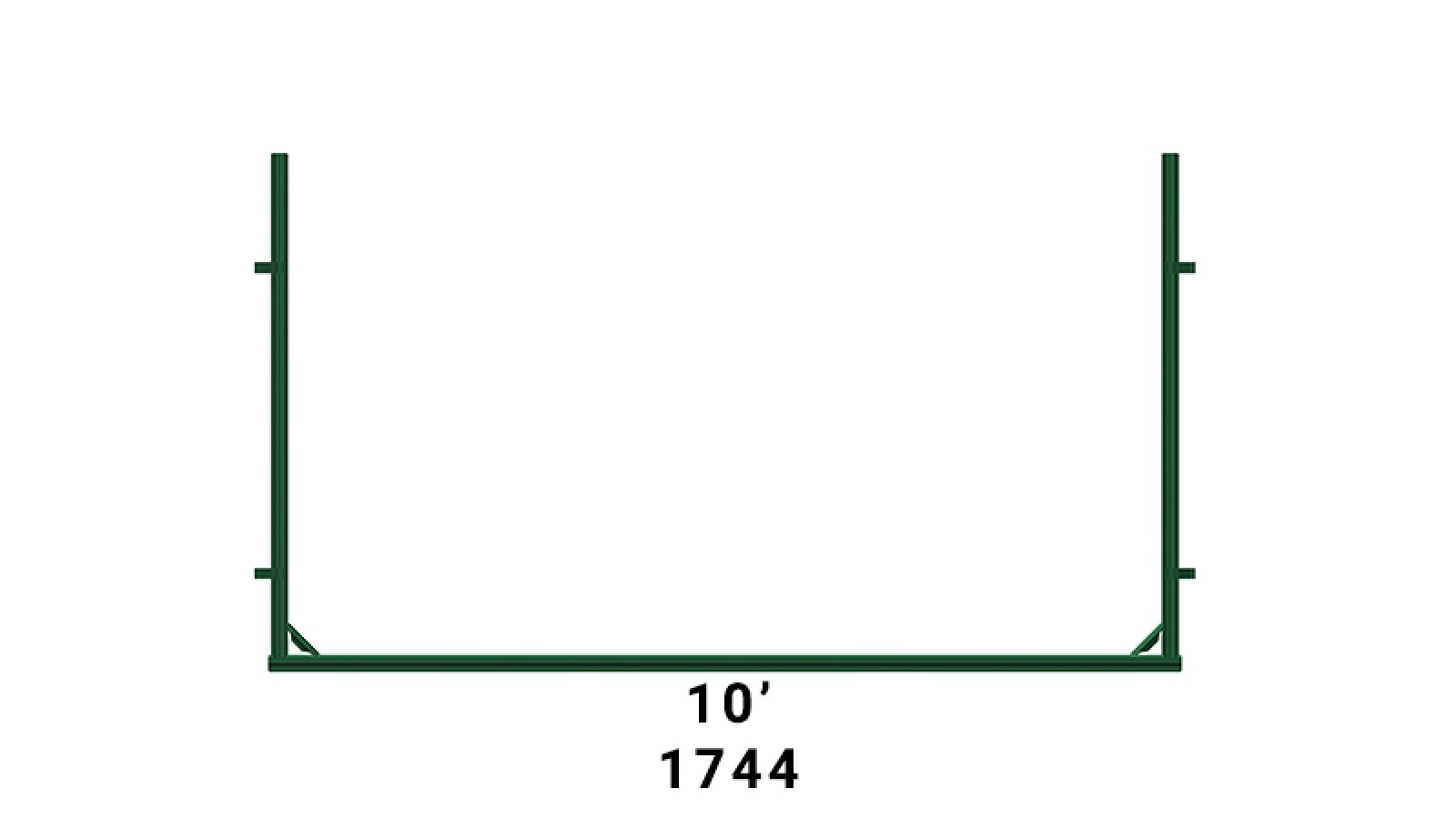

1744 10' long x 6' high U-Spreader 109

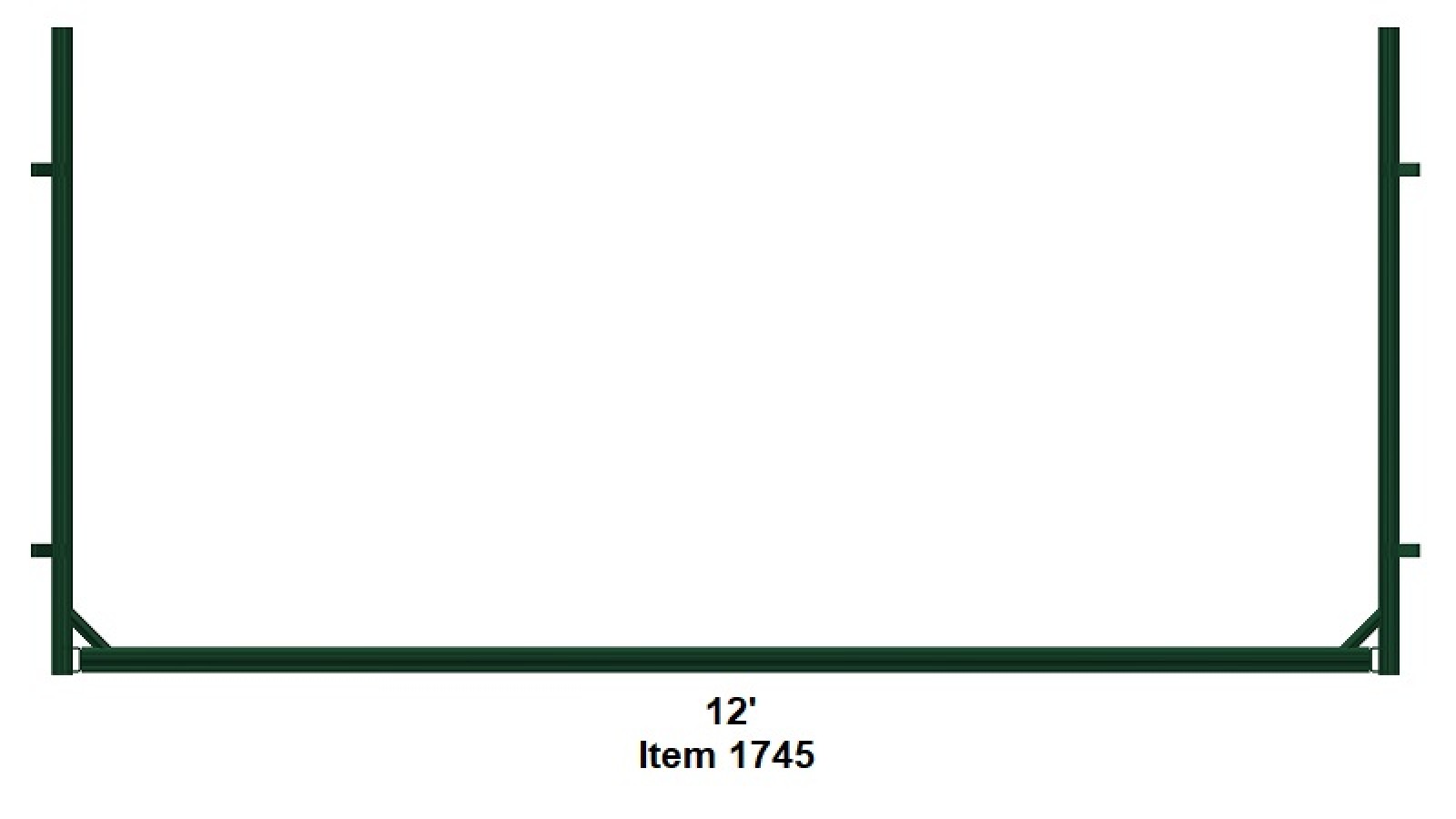

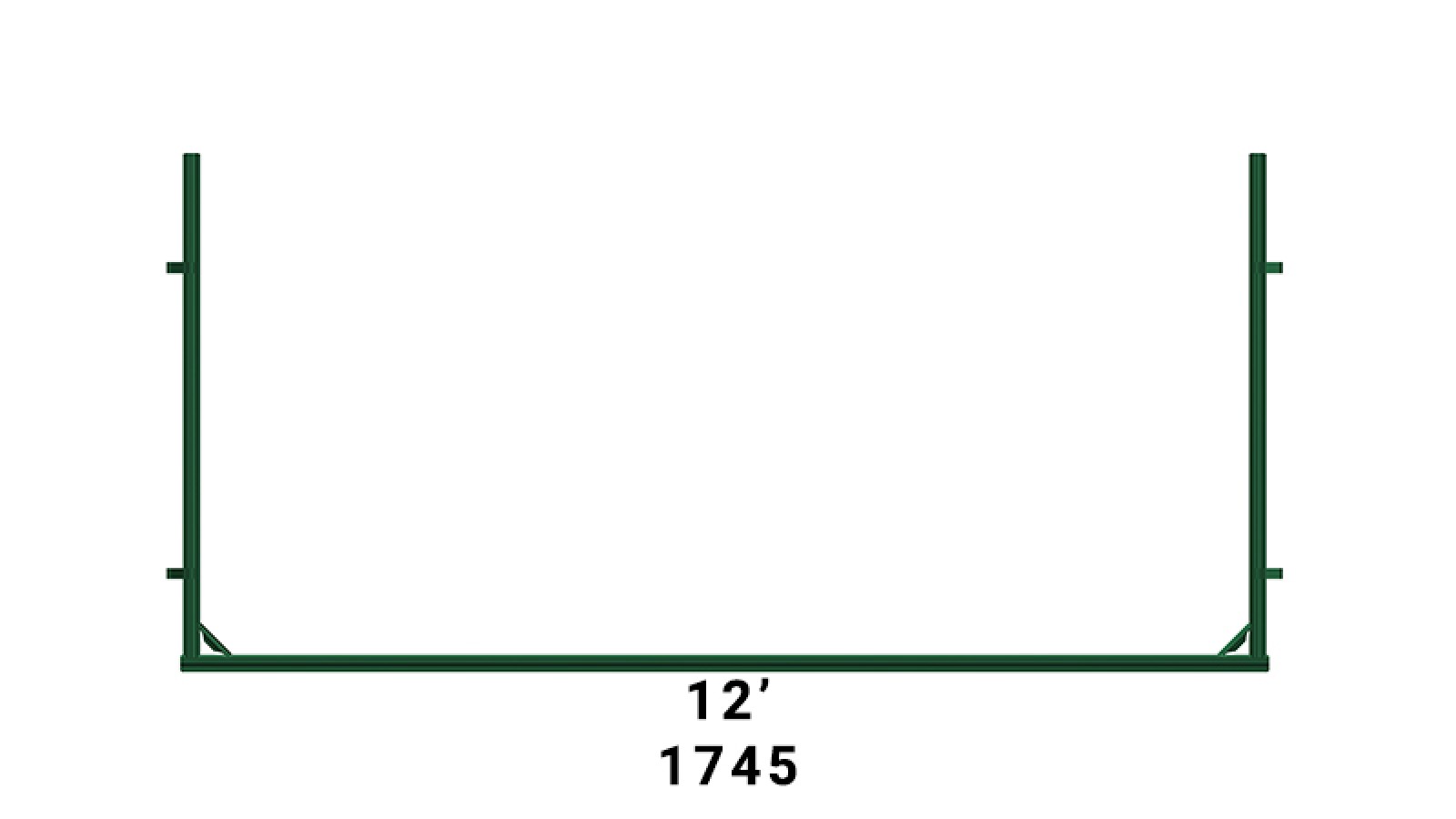

1745 12' long x 6' high U-Spreader 120

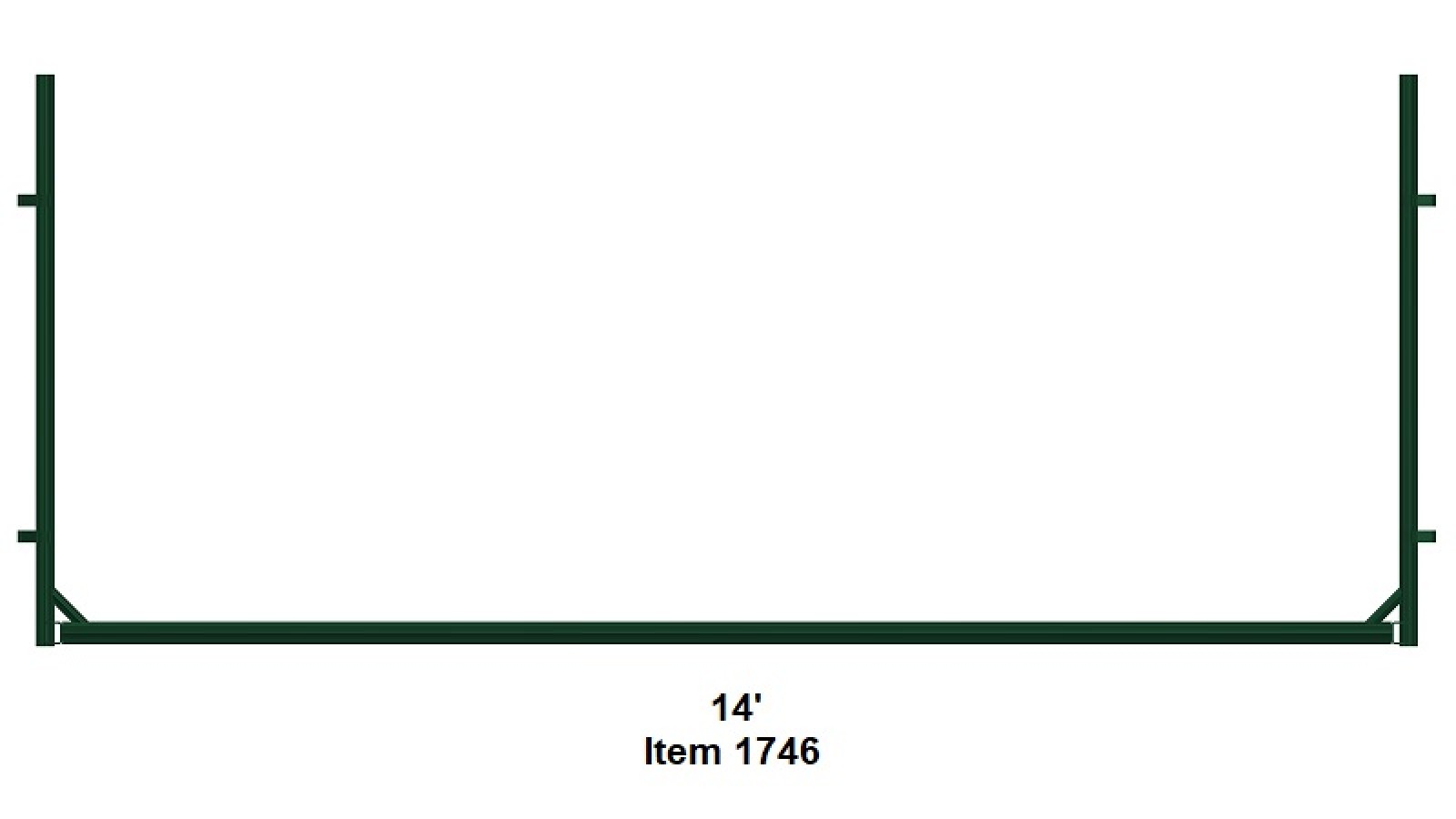

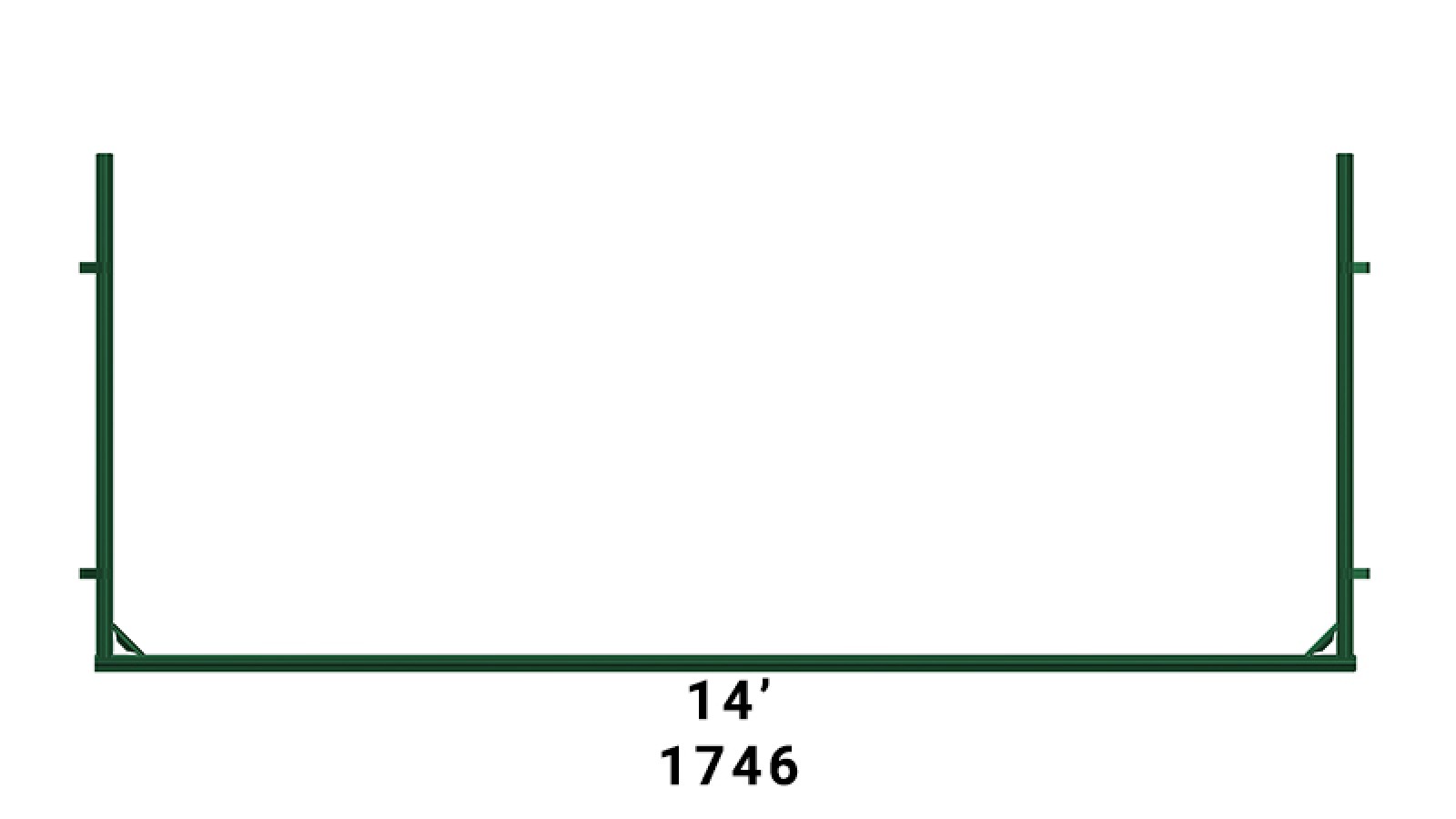

1746 14' long x 6' high U-Spreader 132



Ask an expert about Hi-Hog's U-Spreaders

Durable Construction

The posts are built with heavy 2-3/8” OD [.154] tubing and are open top and bottom. The ground rail is made with 2-7/8” OD [.203] tubing. The posts are welded to a U-bracket which is also a cap for the ground rail.


Modular

The U-Spreader has the same length as any of our traditional overhead alley spreaders.

Adaptable Connectors

Like the U-frame, the U-spreader’s connectors are set at Hi-Hog’s standard height for hook-up with any Hi-Hog panels.

NOTE: The U-spreader can be set directly on the ground (you do not need to bury the bottom horizontal rail as is suggested with the U-Frame).
