Hi-Hog offers a range of overhead frames with built-in gates for a range of uses from low pressure paddock settings up to high pressure bison corral situations.
Hi-Hog's overhead frames with built-in gates, also known as bow gates, are available in heights of 7' and 8' as well as a range of widths, weights, and gate heights.
The common connector system will allow you to integrate this item with any of Hi-Hog’s panel weights.
The following products are described below:
- Handy Bow Gate
- Corral Bow Gate – 6-Bar, and 7-Bar
- Heavy Duty Bow Gate – 5-Bar, 6-Bar and 7-Bar
- Heavy Duty Sheeted Bow Gate
- Other Frames with Gates
For installations where you may require more headroom, or wider openings, we suggest the more economical U-Frames with Gates.
Ask an expert about Hi-Hog's Overhead Frames with Gates
Handy Bow Gate
The handy frame with built-in gate, is commonly used for walk-through access in a line of Hi-Hog handy panels. This is a low-pressure frame and gate.
- The tubing is 1 5/16″ OD 16-gauge tubing
- The inside opening between each of the five horizontal bars is 9 7/16”
- The gate comes with a bolt latch
![](/assets/products/slides/1540-4-long-x-7-high-Handy-Frame-with-Gate-2021b__FillWzE2MDAsOTAwXQ.jpg)
Corral Bow Gates
The corral frame with built-in gate, also known as a bow gate, is commonly used for access and sorting in corral systems. This is a medium to heavy pressure frame & gate.
The Frame
- All the gate tubing is 1 1/2” OD, 14-gauge
The Gate
- The gates top, bottom, and end verticals are constructed of 1.9” OD, 14-gauge tubing
- The interior horizontal bars are constructed of 1.5” OD, 16-gauge tubing
- The inside opening between the top horizontal bars is 9 3/4”
- The opening between the bottom four horizontal bars is 7”
- The horizontals are reinforced with 1.25” x 3/16” flat bar welded on alternating faces of the gate
- The gate comes with a 7/8” plunger latch and striker plate
8' High Corral Frame with 60" high Gate
![](/assets/products/slides/365-8-Corral-Frame-with-Gate-6-Rail__FillWzE2MDAsOTAwXQ.jpg)
![](/assets/products/slides/375-10-Corral-Frame-with-Gate-6-Rail__FillWzE2MDAsOTAwXQ.jpg)
![](/assets/products/slides/385-12-Corral-Frame-with-Gate-6-Rail__FillWzE2MDAsOTAwXQ.jpg)
![](/assets/products/slides/366-8-Corral-Frame-with-Gate-7-Rail__FillWzE2MDAsOTAwXQ.jpg)
![](/assets/products/slides/376-10-Corral-Frame-with-Gate-7-Rail__FillWzE2MDAsOTAwXQ.jpg)
![](/assets/products/slides/386-12-Corral-Frame-with-Gate-7-Rail__FillWzE2MDAsOTAwXQ.jpg)
Heavy Duty Bow Gates
The heavy-duty, one piece frame with built-in gate, also known as a bow gate, is commonly used for access, sorting and holding in working livestock handling systems. This is a heavy pressure frame & gate.
- The 4′ and 6′ wide frame & gates use a 7' high, single tube frame
- The 8′ wide and wider frame & gates use a 8' high, double tube frame
- The frame is constructed with 1.9” OD 14-gauge tubing for the end verticals and the top bars
- The bottom rail is 2 3/8” OD 0.125 wall
The Gate
- The heavy-duty gates are constructed of 1.9” OD 14-gauge tubing
- The end vertical supports are coned to remove sharp edges
- The inside opening between each of the five horizontal bars is 9 3/8”
- The horizontals are reinforced with 1 1/2” OD 16-gauge tubing
- Each of the verticals supports is coped to fit the horizontals
- The gate comes with a 7/8” plunger latch and striker plate
7' high Heavy Duty Frame with 60" high gate
![](/assets/products/slides/350-4-Long-x-7-High-Frame-with-60-high-gate-1__FillWzE2MDAsOTAwXQ.jpg)
![](/assets/products/slides/352-6-Long-x-7-High-Frame-with-60-high-gate-1__FillWzE2MDAsOTAwXQ.jpg)
![](/assets/products/slides/351-6-Long-x-7-High-Frame-with-72__FillWzE2MDAsOTAwXQ.25-high-gate-01.jpg)
![](/assets/products/slides/360-5-high-Heavy-Duty-Gate-in-8w-x-8h-frame__FillWzE2MDAsOTAwXQ.jpg)
![](/assets/products/slides/370-5-high-Heavy-Duty-Gate-in-10w-x-8h-frame__FillWzE2MDAsOTAwXQ.jpg)
![](/assets/products/slides/380-5-high-Heavy-Duty-Gate-in-12w-x-8h-frame__FillWzE2MDAsOTAwXQ.jpg)
![](/assets/products/slides/355-6-high-Heavy-Duty-Gate-in-6w-x-8h-frame-01__FillWzE2MDAsOTAwXQ.jpg)
![](/assets/products/slides/361-6-high-Heavy-Duty-Gate-in-8w-x-8h-frame__FillWzE2MDAsOTAwXQ.jpg)
![](/assets/products/slides/371-6-high-Heavy-Duty-Gate-in-10w-x-8h-frame__FillWzE2MDAsOTAwXQ.jpg)
![](/assets/products/slides/381-6-high-Heavy-Duty-Gate-in-12w-x-8h-frame__FillWzE2MDAsOTAwXQ.jpg)
Item | Description | Weight (lbs.) |
355 | 6' long x 8' high Heavy Duty Frame with 71.25" high Gate | 157 |
361 | 8' long x 8' high Heavy Duty Frame with 71.25" high Gate | 197 |
371 | 10' long x 8' high Heavy Duty Frame with 71.25" high Gate | 229 |
381 | 12' long x 8' high Heavy Duty Frame with 71.25" high Gate | 265 |
8' high Heavy Duty Frame with 84" high Gate
![](/assets/products/slides/2608-8-long-x-8-high-HD-frame-with-84-high-gate__FillWzE2MDAsOTAwXQ.jpg)
![](/assets/products/slides/2610-10-long-x-8-high-HD-frame-with-84-high-gate__FillWzE2MDAsOTAwXQ.jpg)
![](/assets/products/slides/2612-12-long-x-8-high-HD-frame-with-84-high-gate__FillWzE2MDAsOTAwXQ.jpg)
![](/assets/products/slides/2508-8-long-x-8-high-HD-frame-with-84-high-sheeted-gate__FillWzE2MDAsOTAwXQ.jpg)
![](/assets/products/slides/2510-10-long-x-8-high-HD-frame-with-84-high-sheeted-gate__FillWzE2MDAsOTAwXQ.jpg)
![](/assets/products/slides/2512-12-long-x-8-high-HD-frame-with-84-high-sheeted-gate__FillWzE2MDAsOTAwXQ.jpg)
Ask an expert about Hi-Hog's Overhead Frames with Gates
Other Hi-Hog Overhead Frames with built-in Gates
Calving Frame with built-in Gate
The calving frame & gate is commonly used as the rear gate on Hi-Hog’s calving enclosure. The shorter 7’ high frame of this frame & gate makes this is an ideal gate for use inside barns with a low ceiling height.
- The 7′ high frame is constructed with 2 3/8” OD 0.125 wall
- The heavy-duty gates are constructed of 1.9” OD 16-gauge tubing throughout
- The gates end verticals are coned to remove sharp edges
- The inside opening between the top three bars is 10”
- The opening between the bottom four bars is 8”
- Each of the vertical supports is coped to fit the horizontals
- The gate comes with a 7/8” plunger latch and striker plate

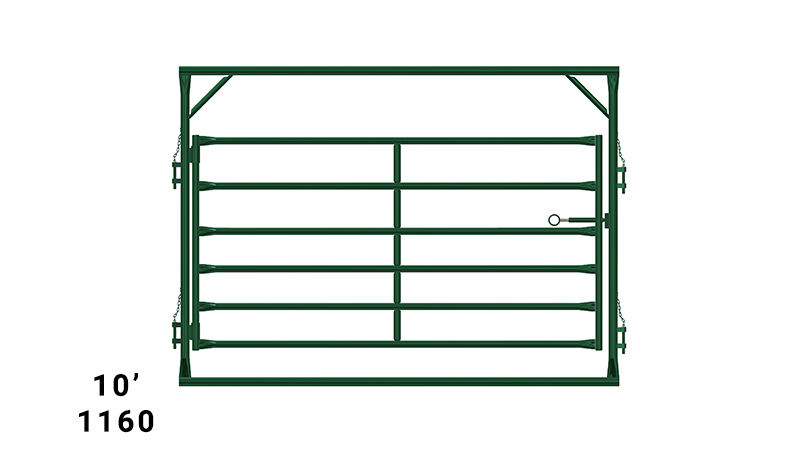

![10' wide x 7' high bow frame livestock gate 1160 10 Long x 7 High Frame with 66 high gate](assets/Uploads/1160-10-Long-x-7-High-Frame-with-66-high-gate.jpg)
Calving Frame & Gate
Item | Description | Weight (lbs.) |
1160 | 10' long x 7' high Calving Frame with 66" high Gate | 210 |
- Parkland Round Pen frame with built-in gate
- Rocky Mountain Round Pen frame with built-in gate
Alternate Products
An alternative to the Overhead Frame with Gate is the U-Frame with Gate. The U-Frame provides unlimited overhead clearance and wider opening widths.
