Item Number: Hi-Hog Livestock Panels with Access-Gates

When you get tired of climbing in and out of your corrals, replace your regular livestock panel with a Panel that includes an Access-Gate.

Well-designed corrals and livestock handling facilities consider animal flow as well as handler/operator movement. Stop climbing and replace your livestock Panel with a Hi-Hog Panel with an Access-Gate. Because Hi-Hog’s various livestock Panels come in the same lengths, and are built with a common connector system, you can insert a Panel with an Access-Gate anywhere you have a similar length Panel. Or, if you haven’t built your corrals yet, plan ahead and design for your movement as well.

Hi-Hog offers the following livestock Panels with an Access-Gate:

 Ask an expert about Hi-Hog's Panels with Access-Gates


Hi-Hog Handy Panels with Access-Gate

The Handy Panel with Access-Gate is designed for portability and recommended for low-pressure areas.

  • The tubing is primarily 1 5/16″ OD 16-gauge tubing
  • The frame supporting the gate is made from 1-5/16" OD [.100 wall]
  • The gate frame is gusseted for superior strength
  • The Gate is mounted on the right hand side, with the Bolt Latch on the front of the Panel
  • The Access-Gate frame has an opening width of 46 3/8″ and stands at a height of 82″
Item Description Weight (lbs.)

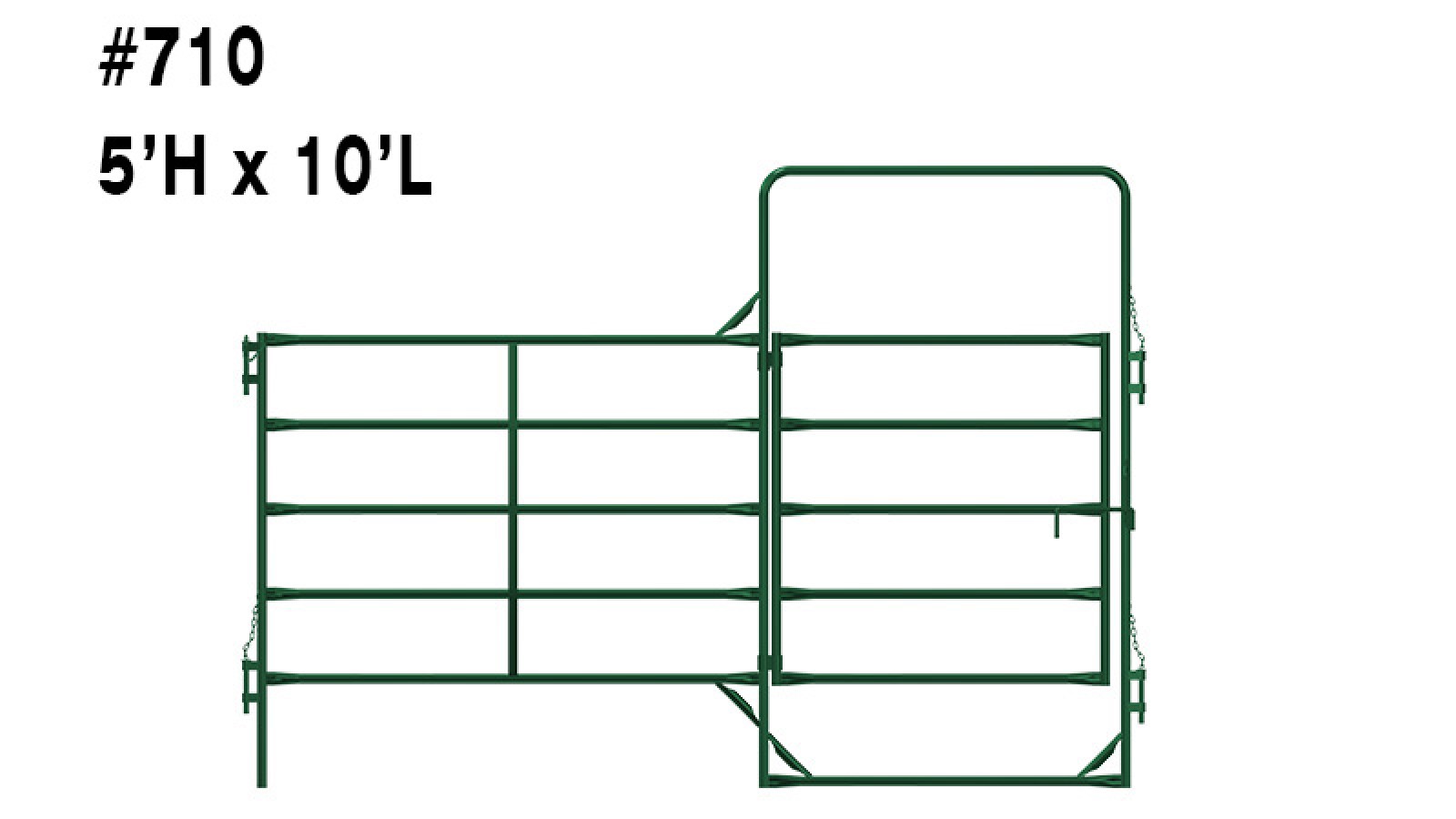

710 10' long x 5' high Handy Panel with Access-Gate 91



Corral Panels with an Access-Gate

The Corral Panel with Access-Gate, as the name suggests, is designed for use in a corral where easy in and out access is desired. Corral Panels are built for medium livestock pressure and use Hi-Tensile Steel Tubing for maximum shape retention.
The spacing of the horizontal bars varies. The top spaces measure 9 ¾” in height while the bottom three spaces are only 7” high. The narrow spacing of the lower four bars provide excellent control for young calves.

  • The tubing is primarily 1 1/2″ OD 16-gauge tubing
  • The frame supporting the gate is made from 1-1/2" OD 14 gauge
  • The gate is mounted on the right hand side, with the Bolt Latch on the front of the Panel
  • The gate frame is gusseted for superior strength
  • The gate frame has an opening width of 46 1/2″ and stands at a total height of 82″



5' High Corral Panels with Access-Gate - 6-Bar

Item Description Weight (lbs.)

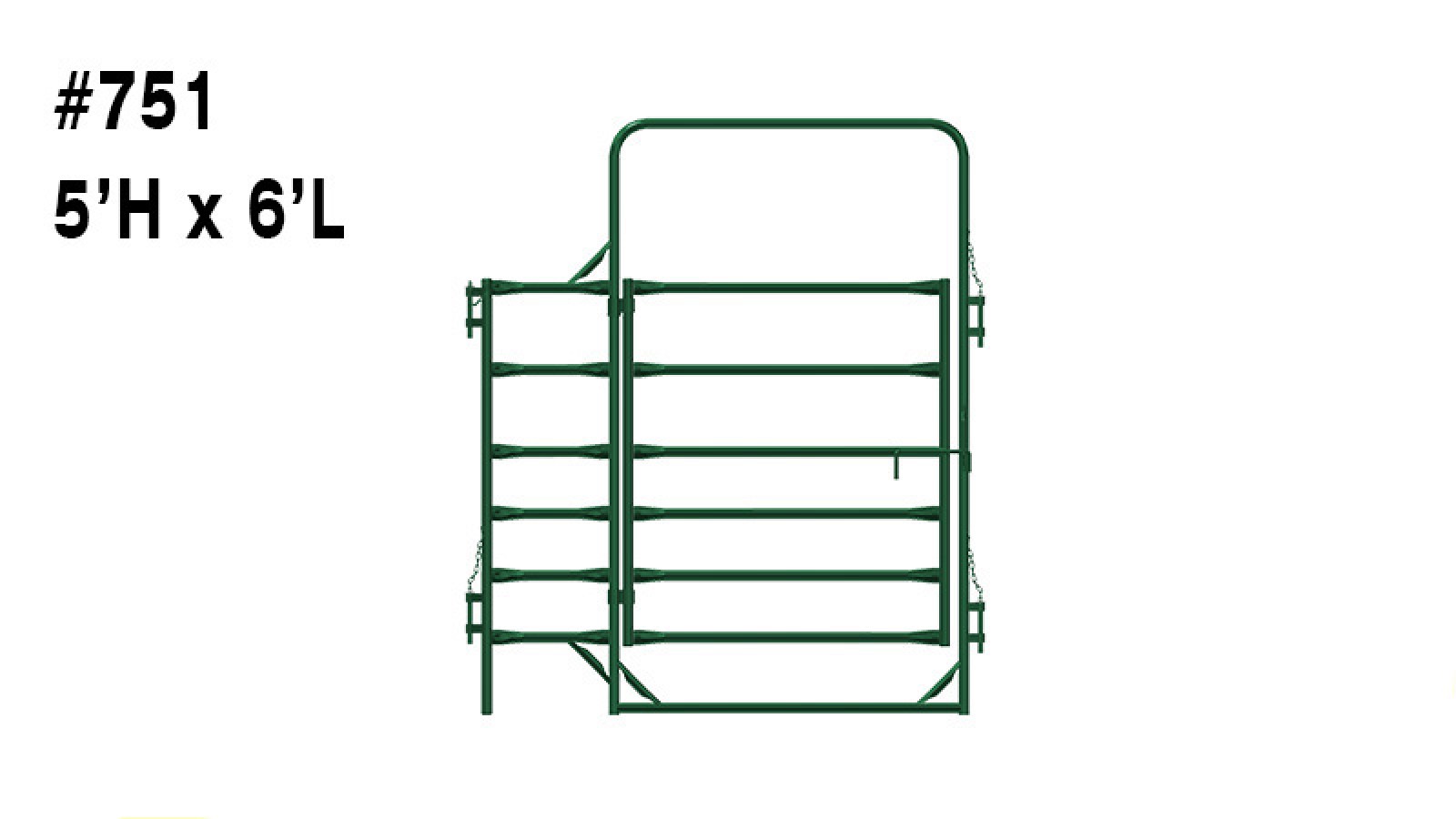

751 6' long x 5' high Corral Panel with Access-Gate 80

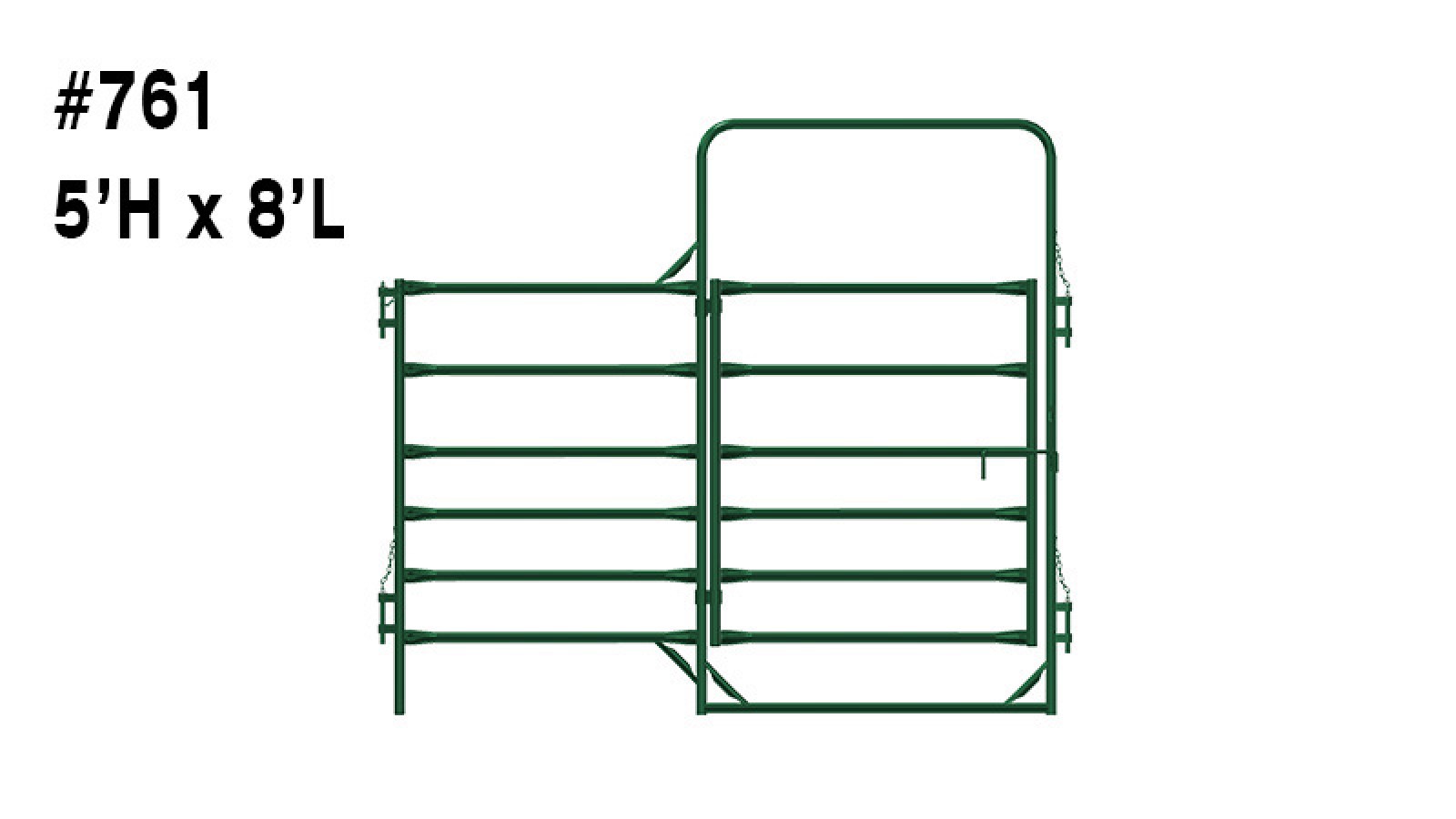

761 8' long x 5' high Corral Panel with Access-Gate 92

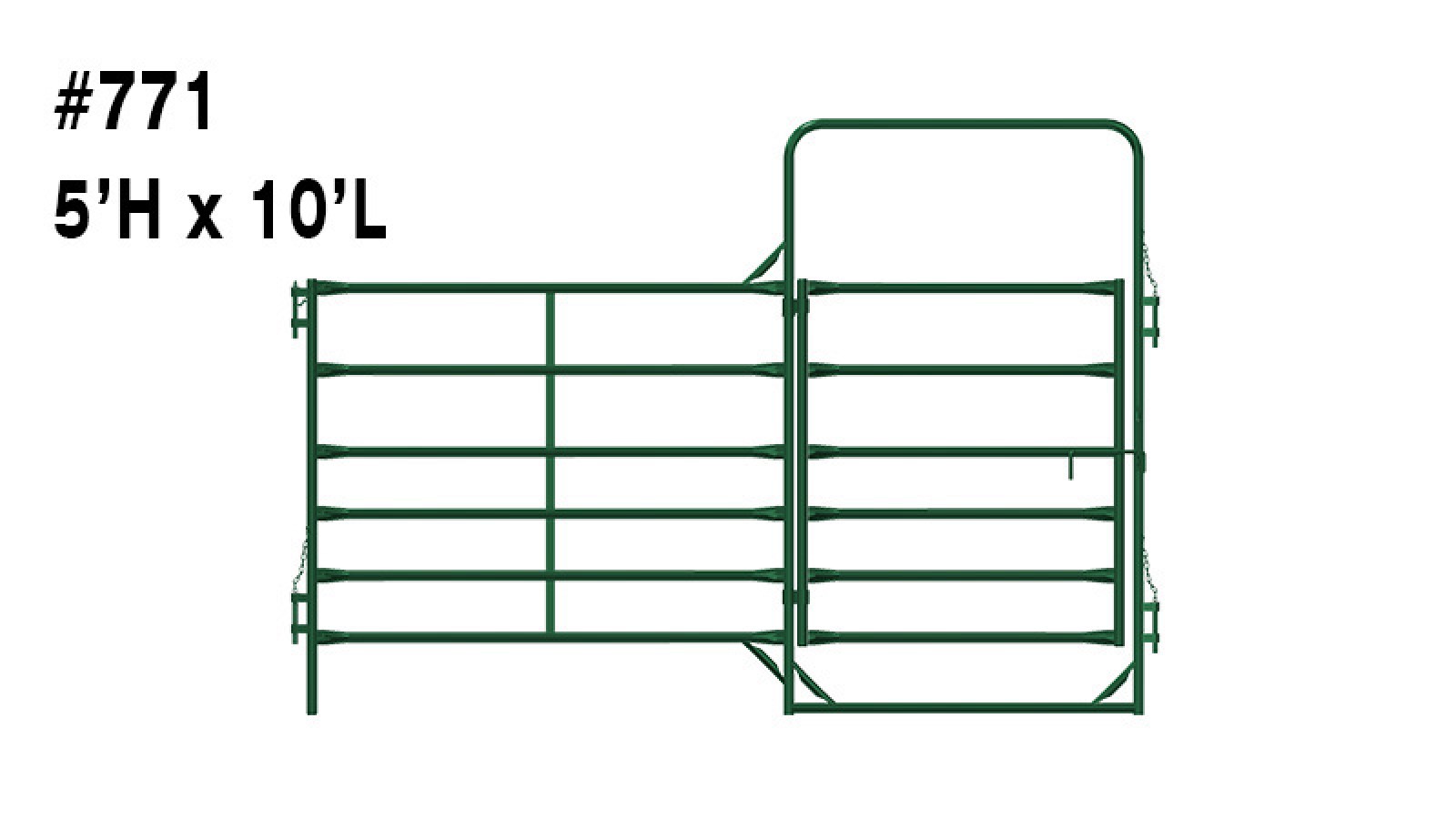

771 10' long x 5' high Corral Panel with Access-Gate 108

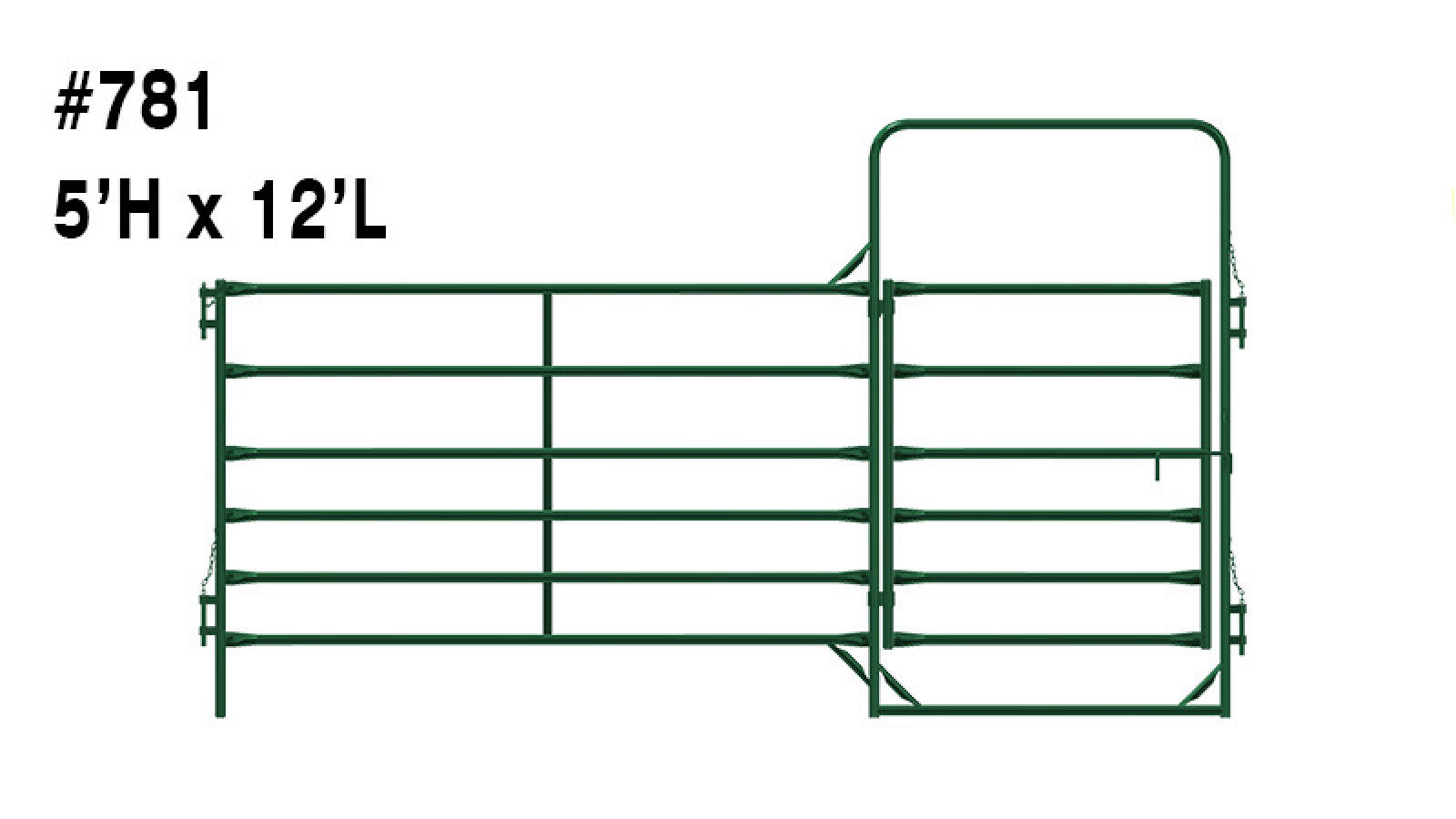

781 12' long x 5' high Corral Panel with Access-Gate 119

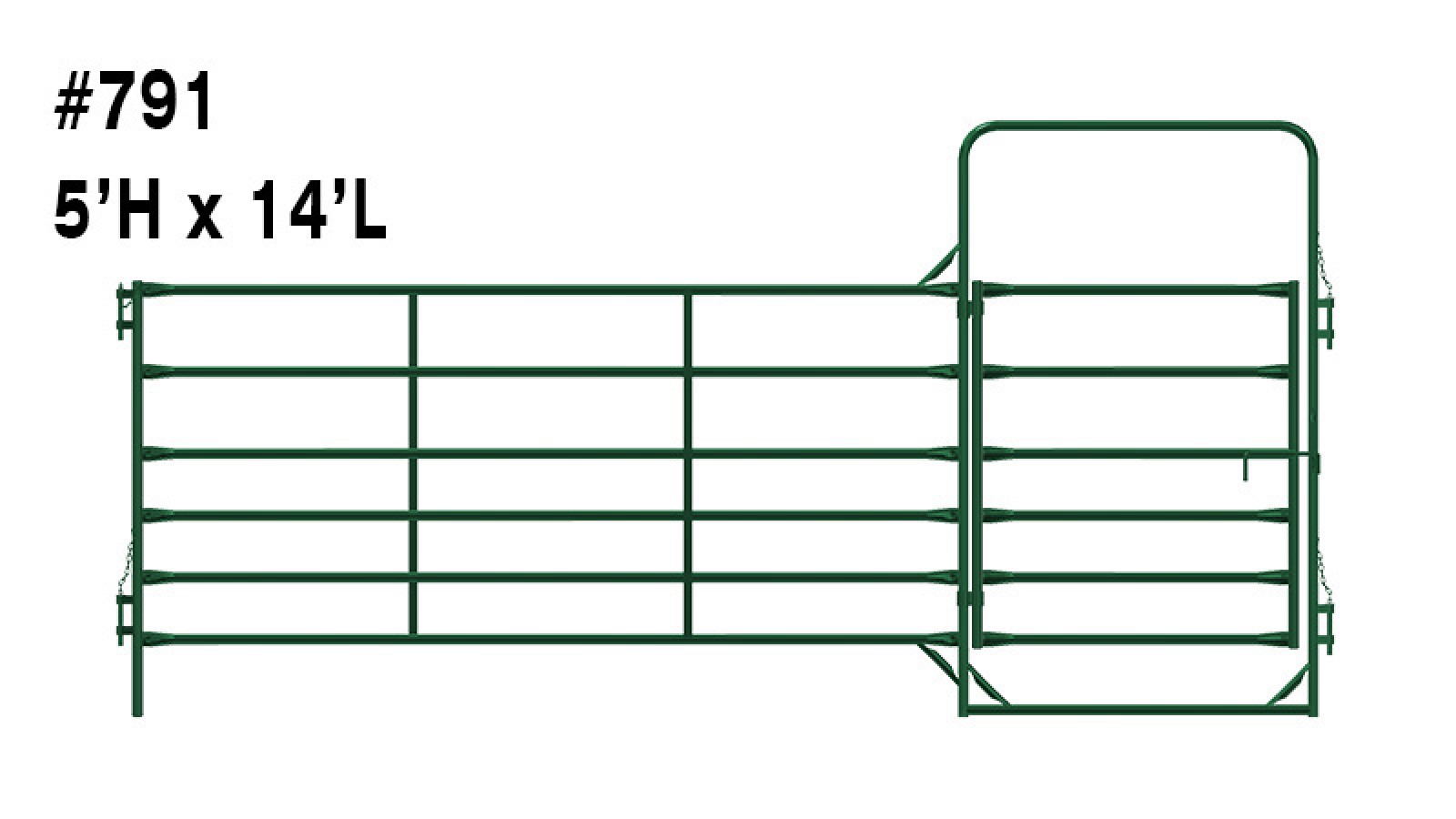

791 14' long x 5' high Corral Panel with Access-Gate 135

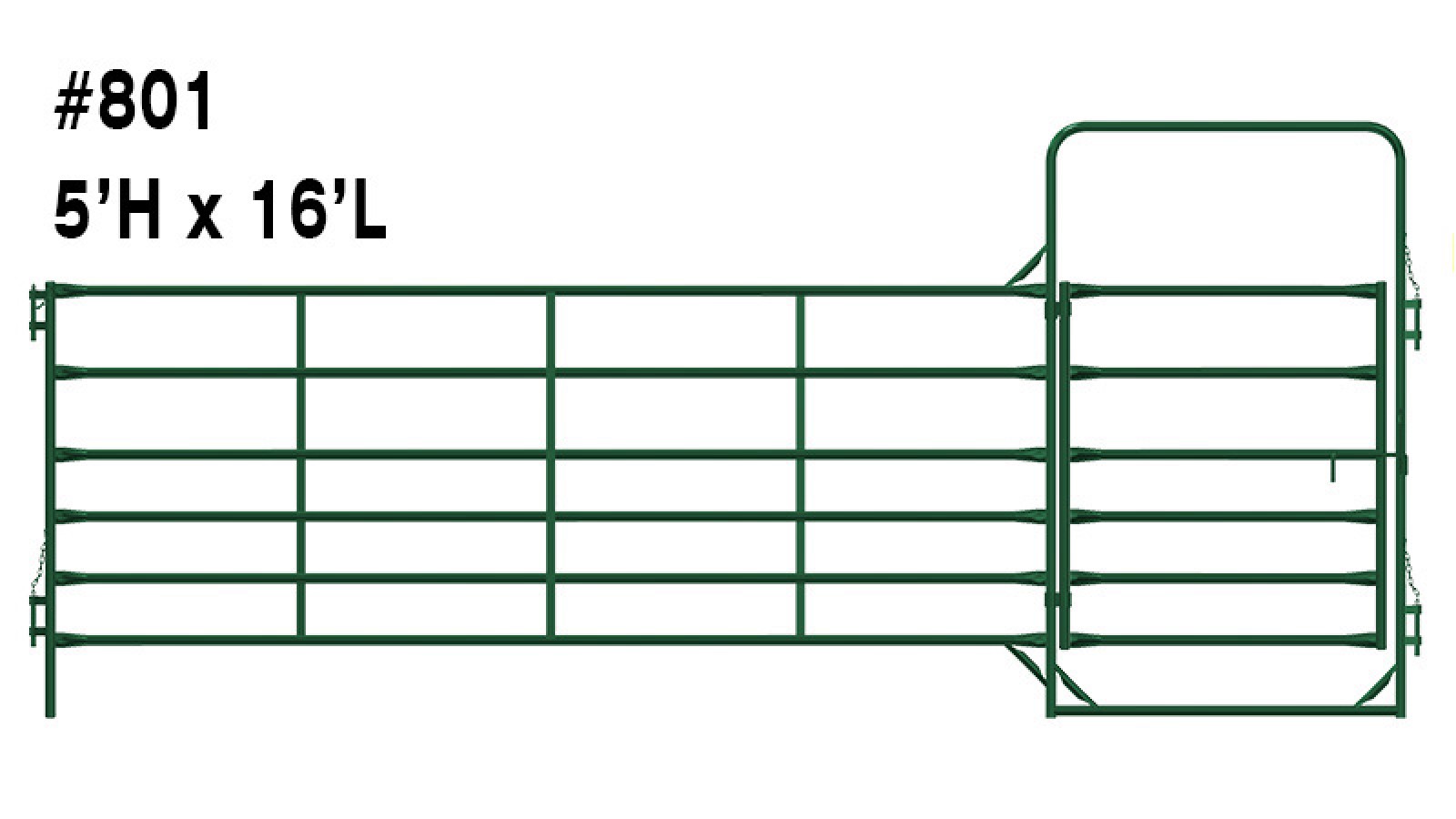

801 16' long x 5' high Corral Panel with Access-Gate 150

6' High Corral Panels with Access-Gate - 7-Bar

Item Description Weight (lbs)

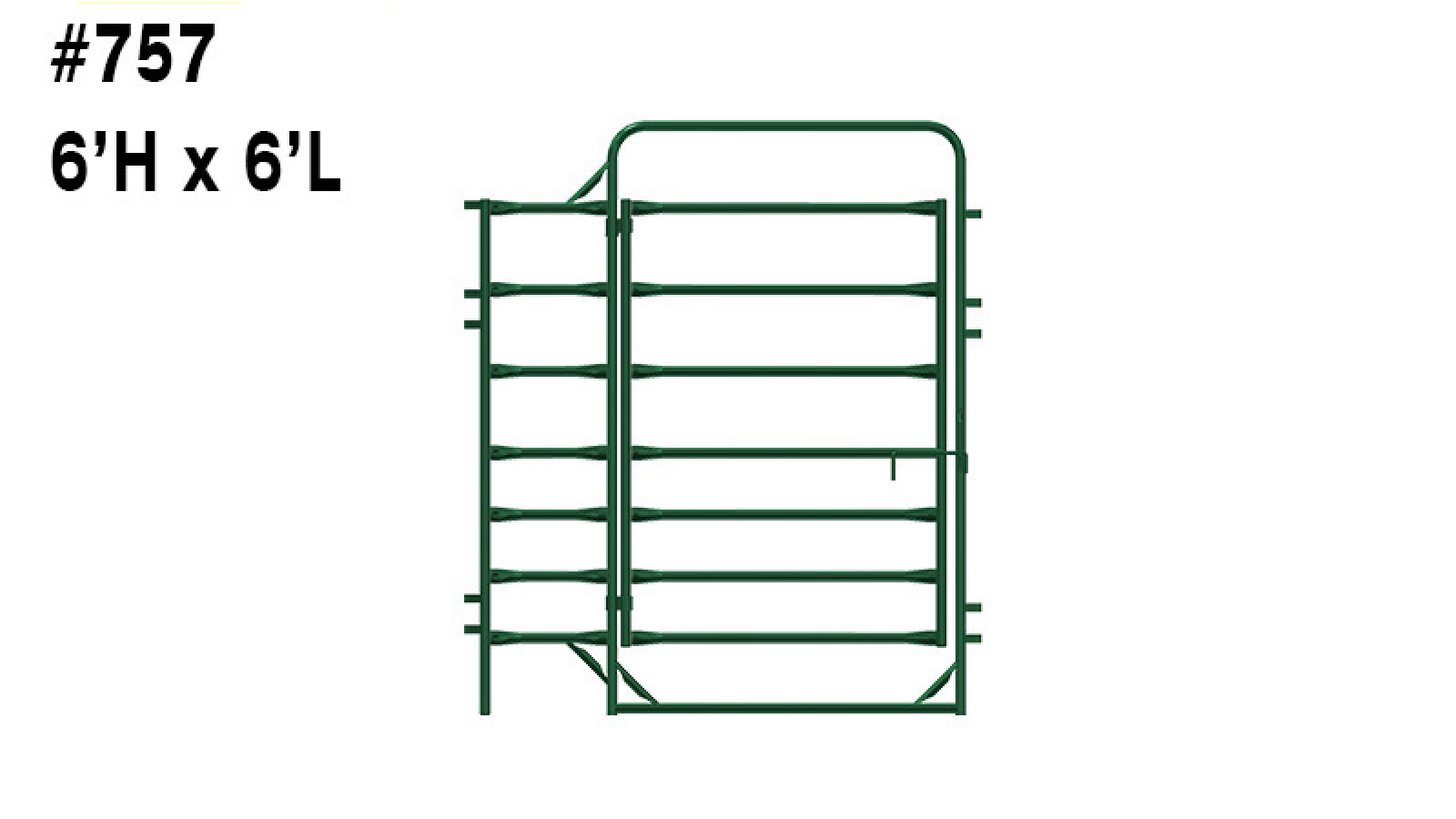

757 6' long x 6' high Corral Panel with Access-Gate 89

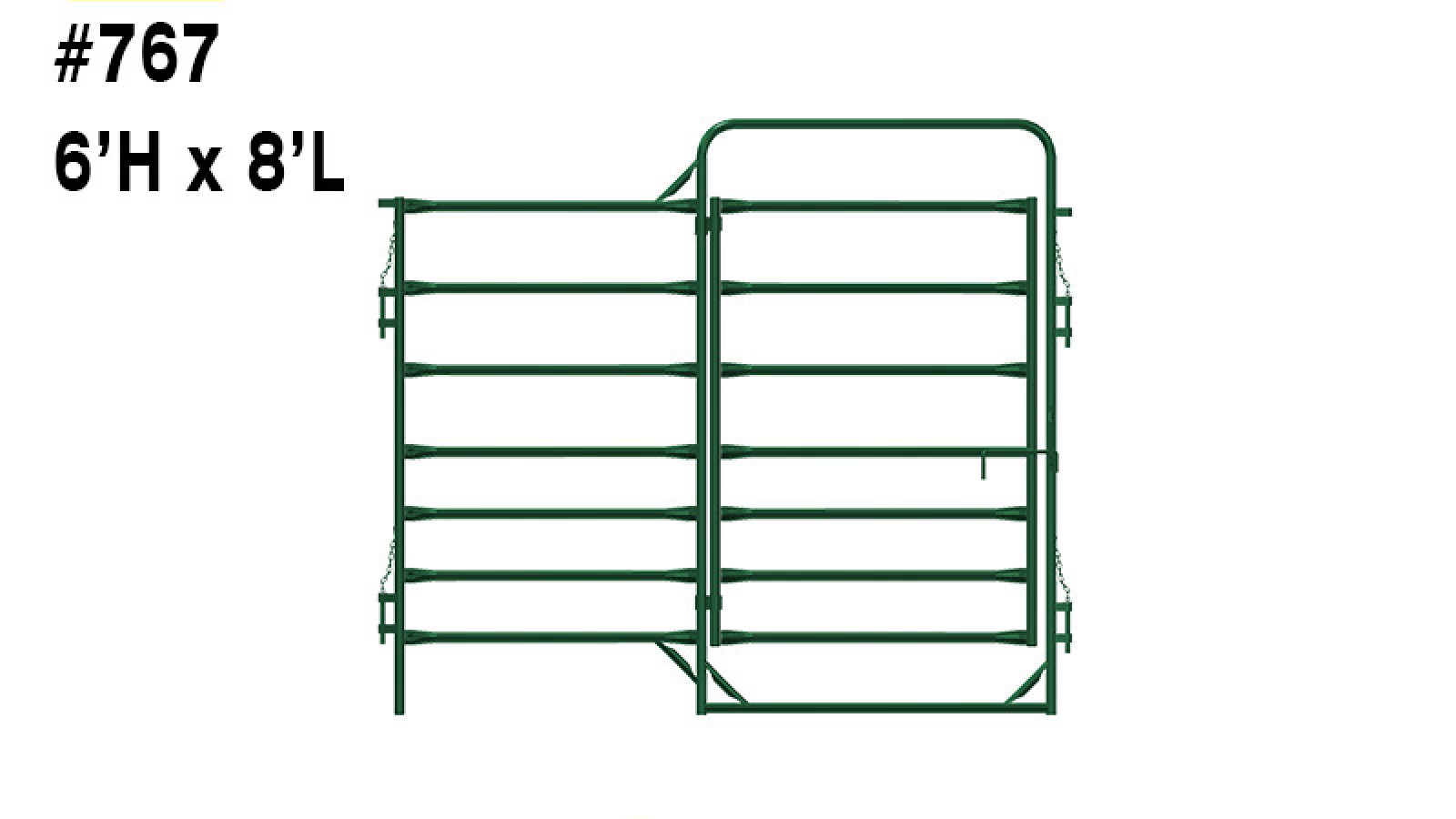

767 8' long x 6' high Corral Panel with Access-Gate 103

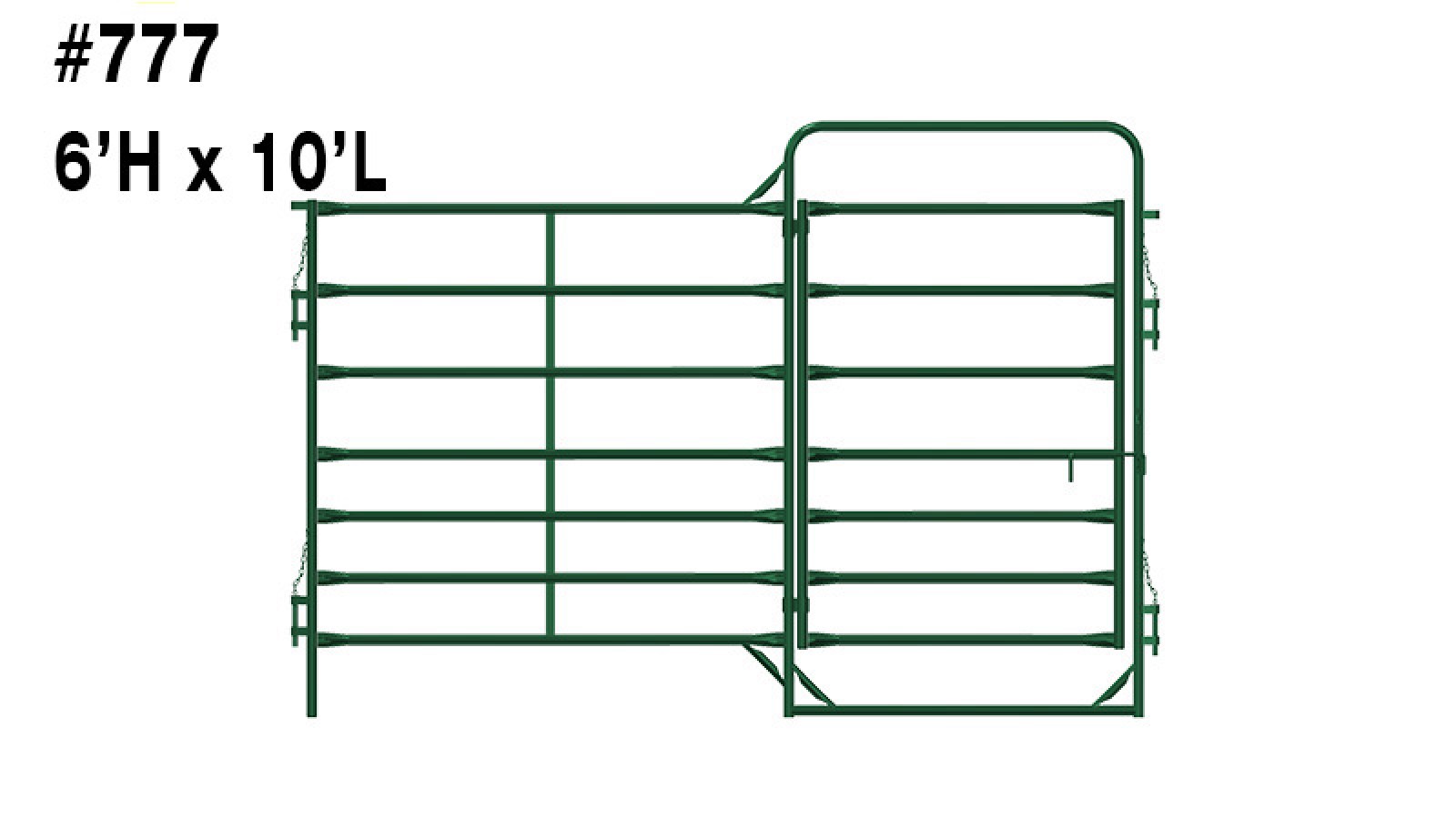

777 10' long x 6' high Corral Panel with Access-Gate 121

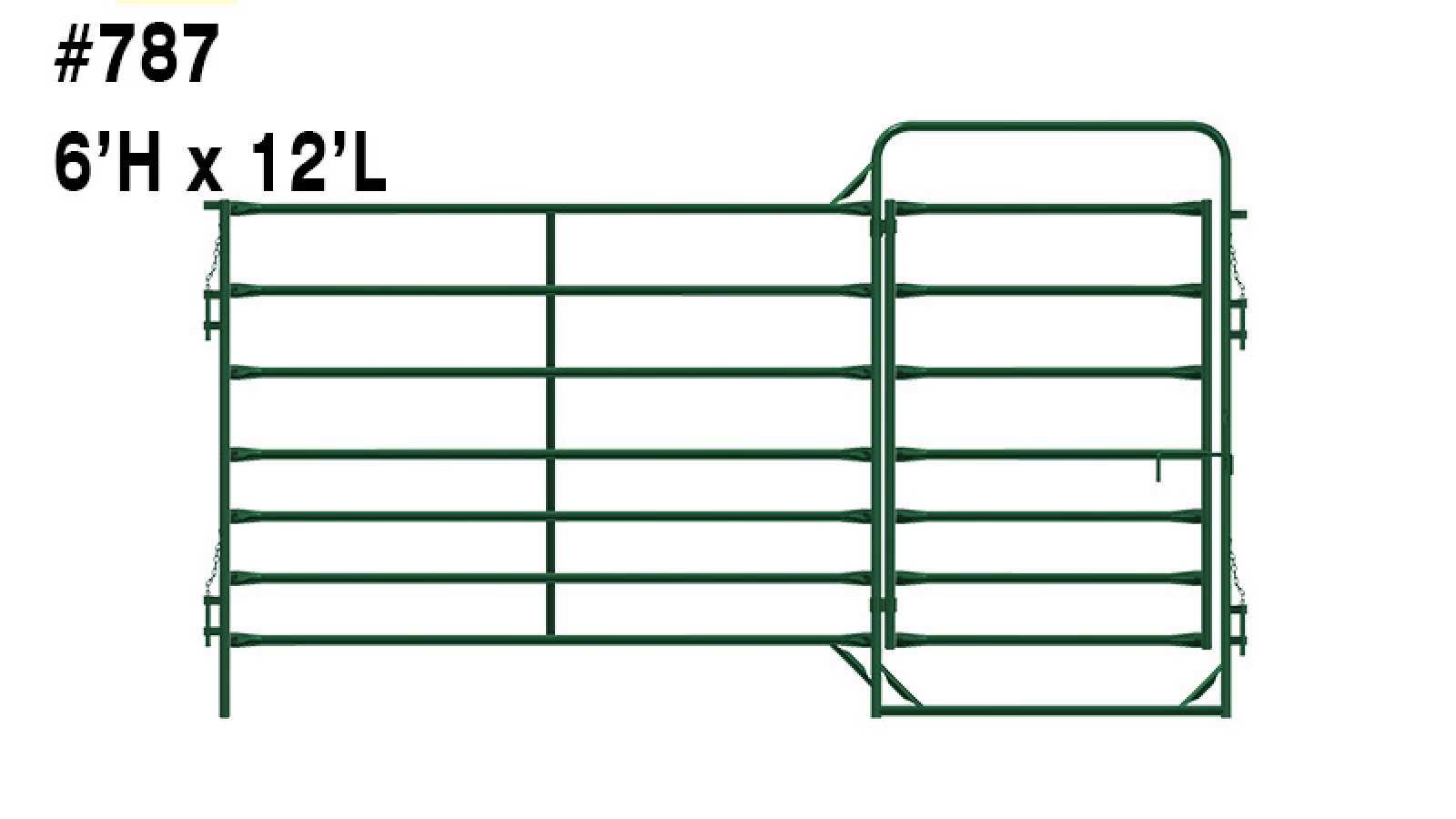

787 12' long x 6' high Corral Panel with Access-Gate 134

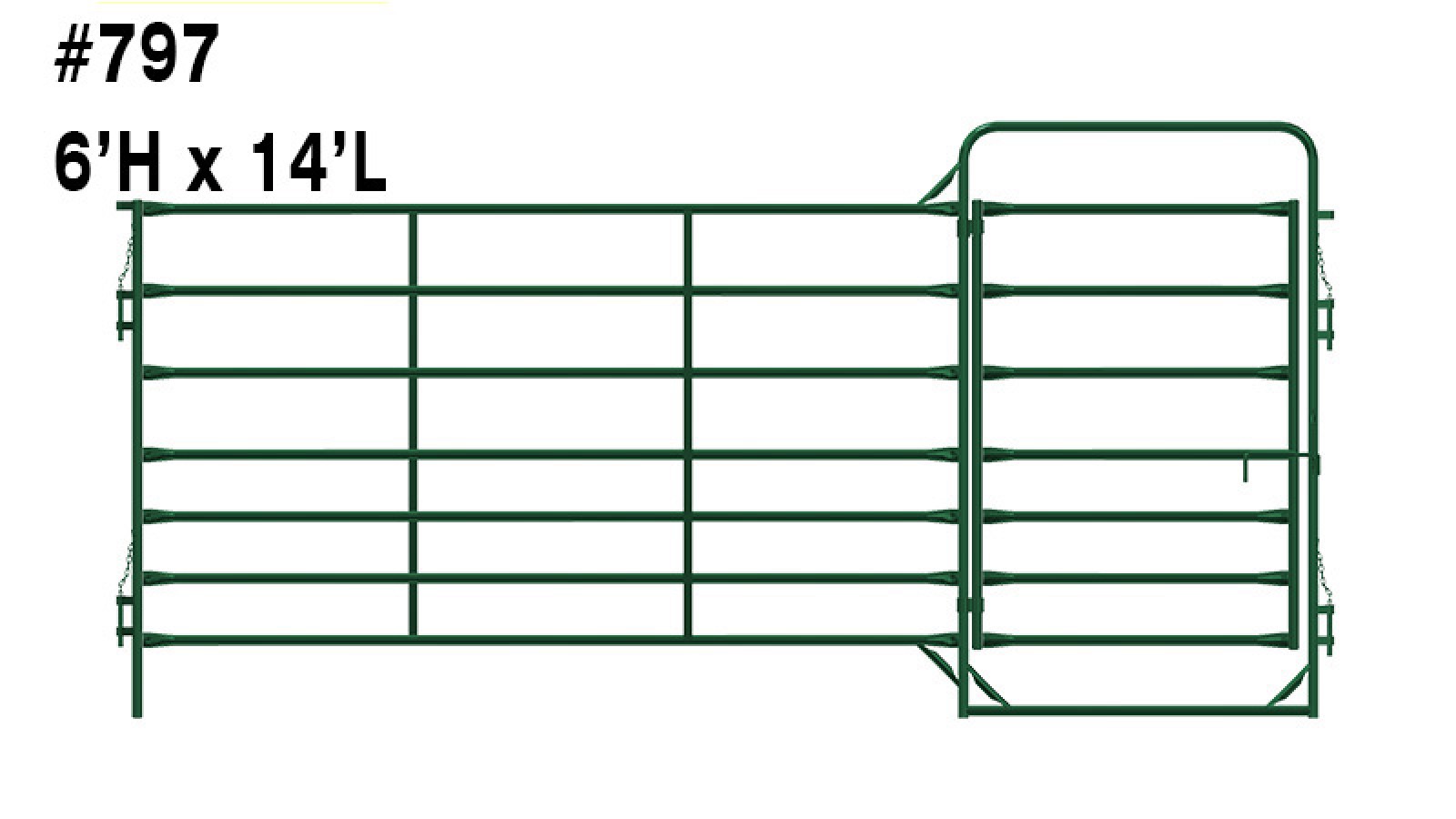

797 14' long x 6' high Corral Panel with Access-Gate 152

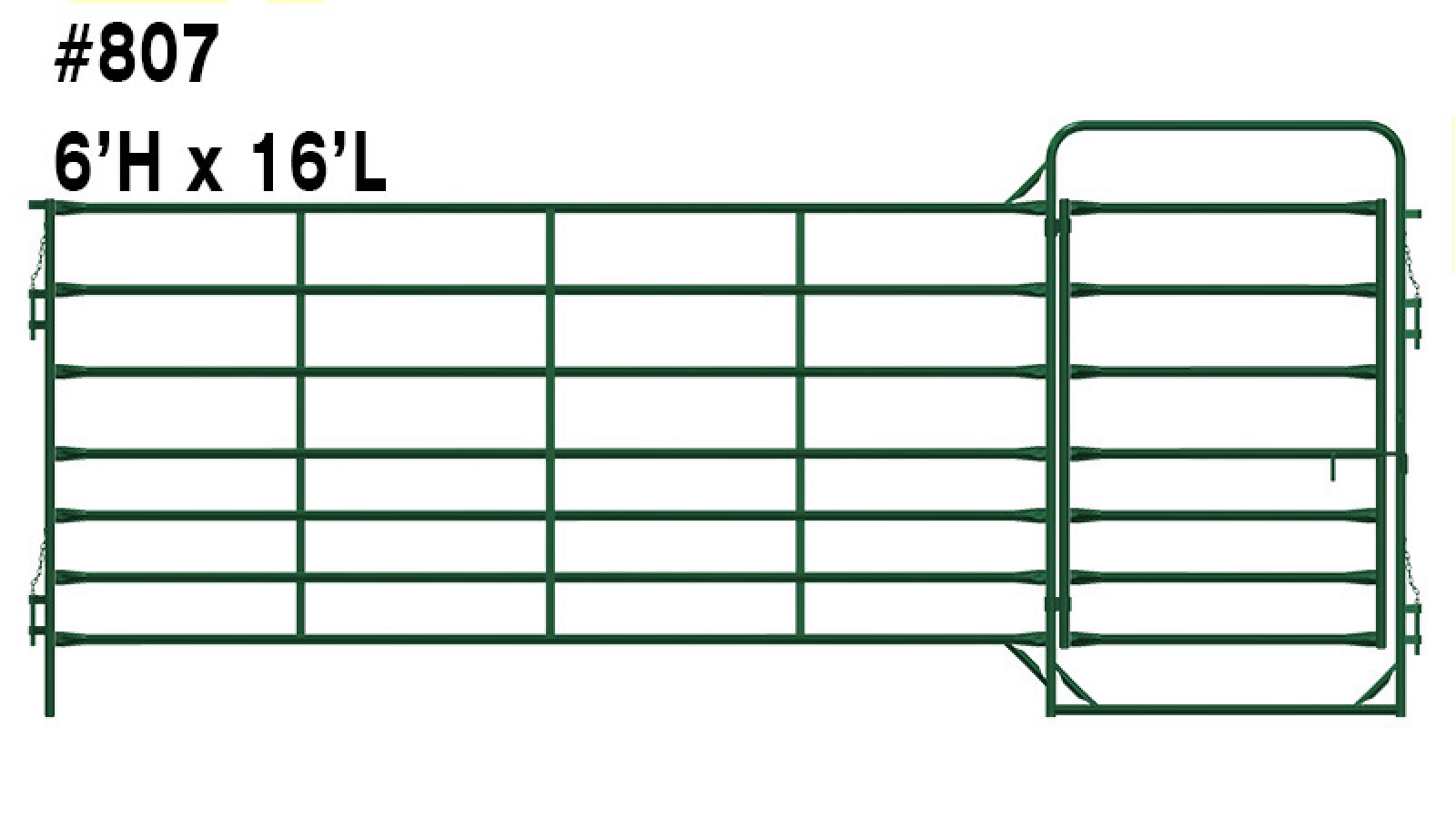

807 16' long x 6' high Corral Panel with Access-Gate 170





Hi-Hog Heavy Duty Panels with Access-Gate

Hi-Hog's heavy-duty Panel with Access-Gate is designed for use in areas that will see very heavy livestock pressure such as in a cattle handling area or working corrals. The Hi-Tensile Steel Tubing provides the best retention of panel shape, under high pressure situations.
The spacing of the horizontal bars varies. The top spaces measure 9 3/8” in height while the bottom three spaces are only 6 1/8” high. The narrow spacing of the lower four bars provide excellent control for young calves.

  • The tubing is a combination of 1.9” 14-gauge, 1.9" 12-gauge and 1 1/2″ OD 16-gauge tubing
  • The gate includes a centre mounted plunger latch, making the gate completely reversible
  • The gate frame is gusseted for superior strength
  • The gate frame has an opening width of 46 1/8″ and stands at a height of 79 1/2″

5' high Heavy Duty Panel with Access-Gate - 6-Bar

Item Description Weight (lbs.)

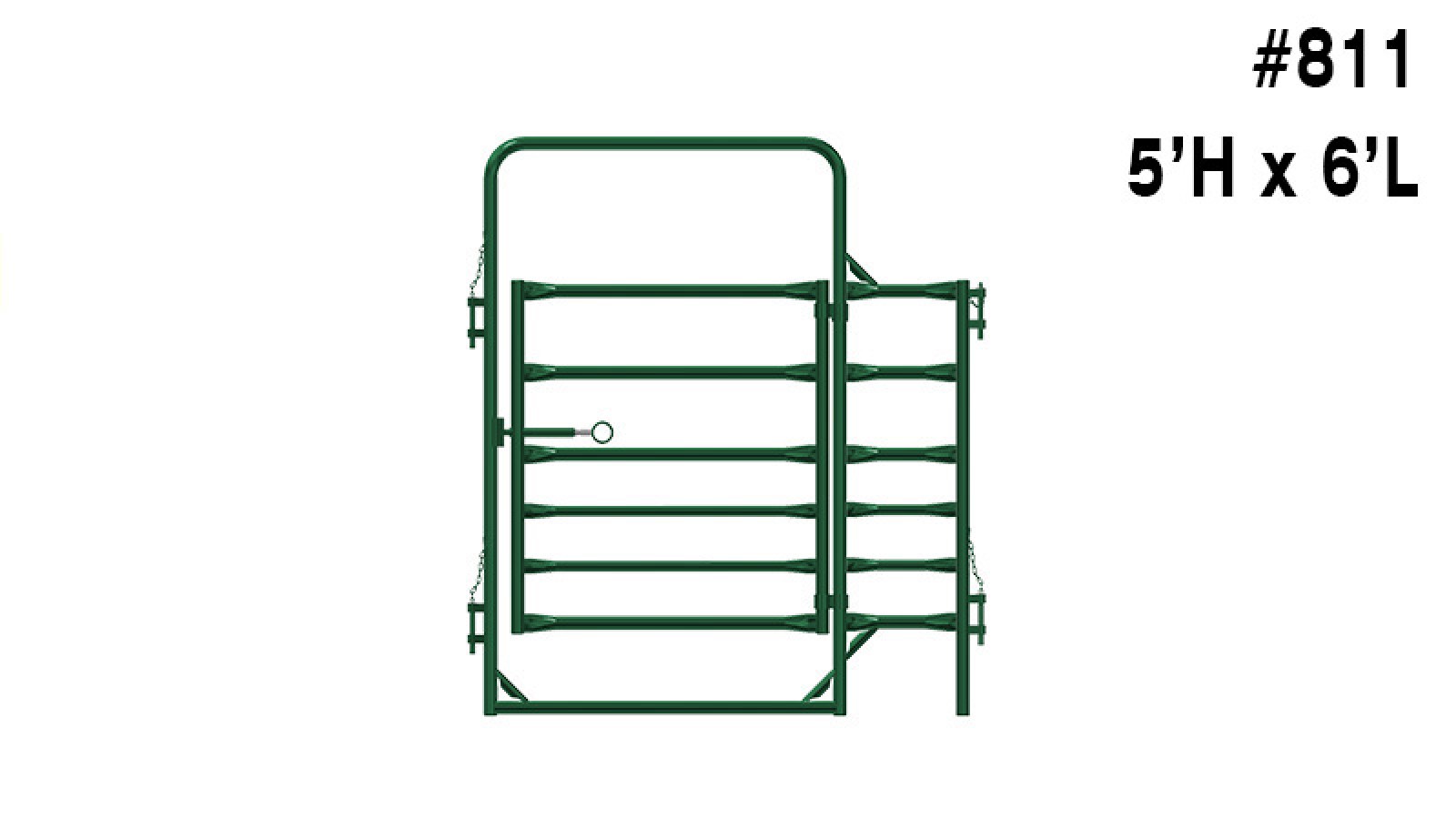

811 6' long x 5' high Heavy Duty Panel with Access-Gate 118

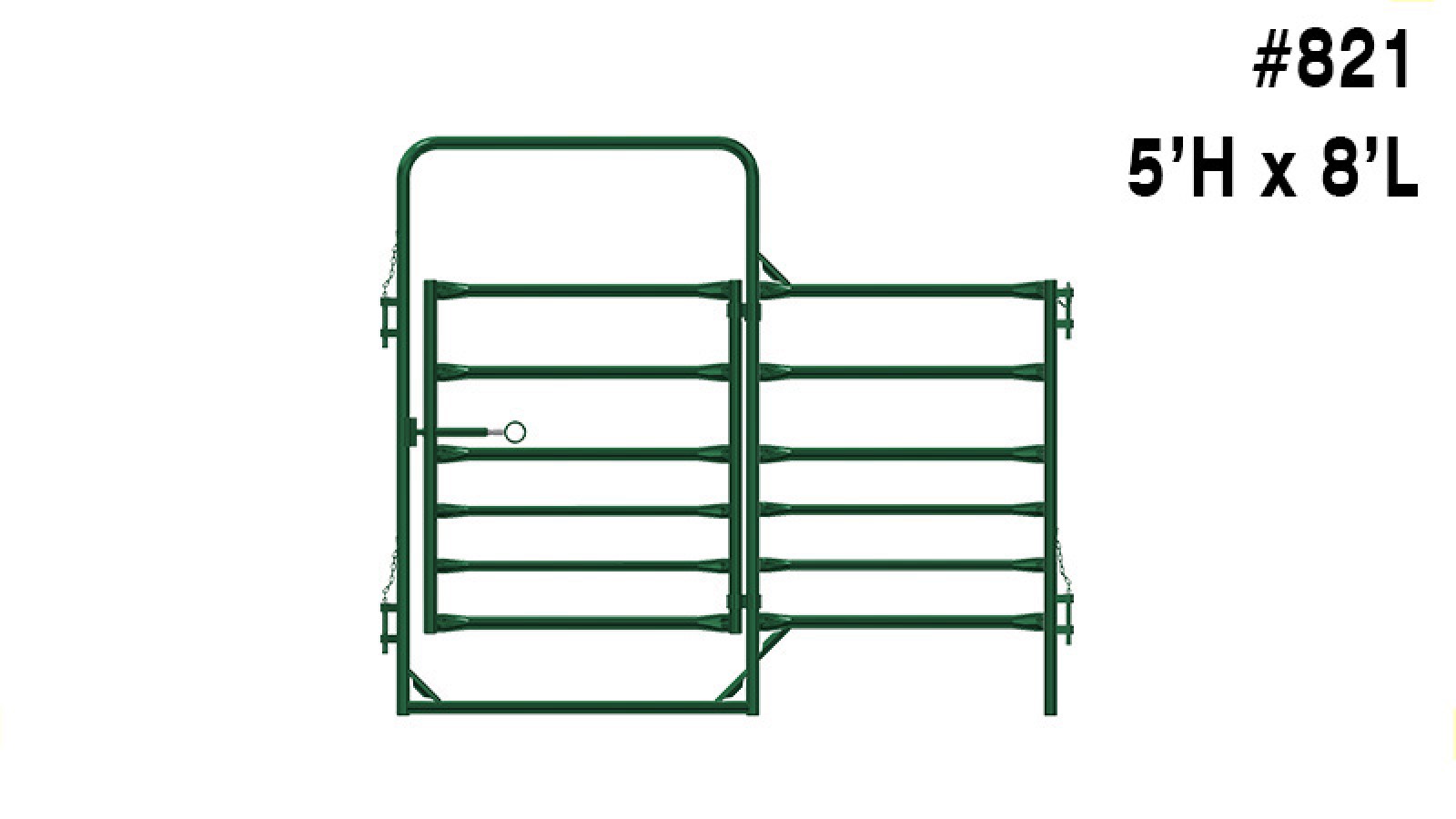

821 8' long x 5' high Heavy Duty Panel with Access-Gate 135

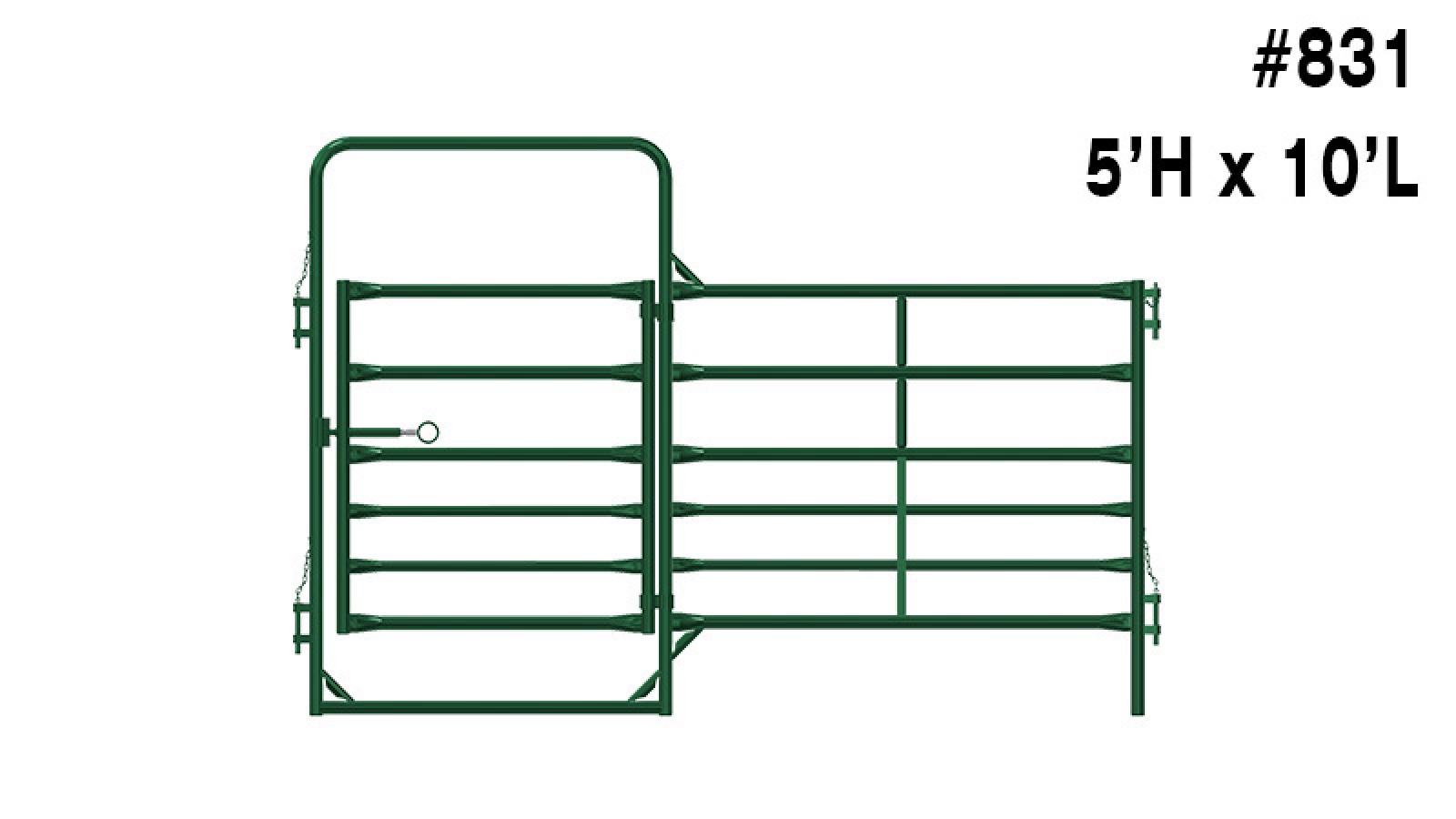

831 10' long x 5' high Heavy Duty Panel with Access-Gate 155

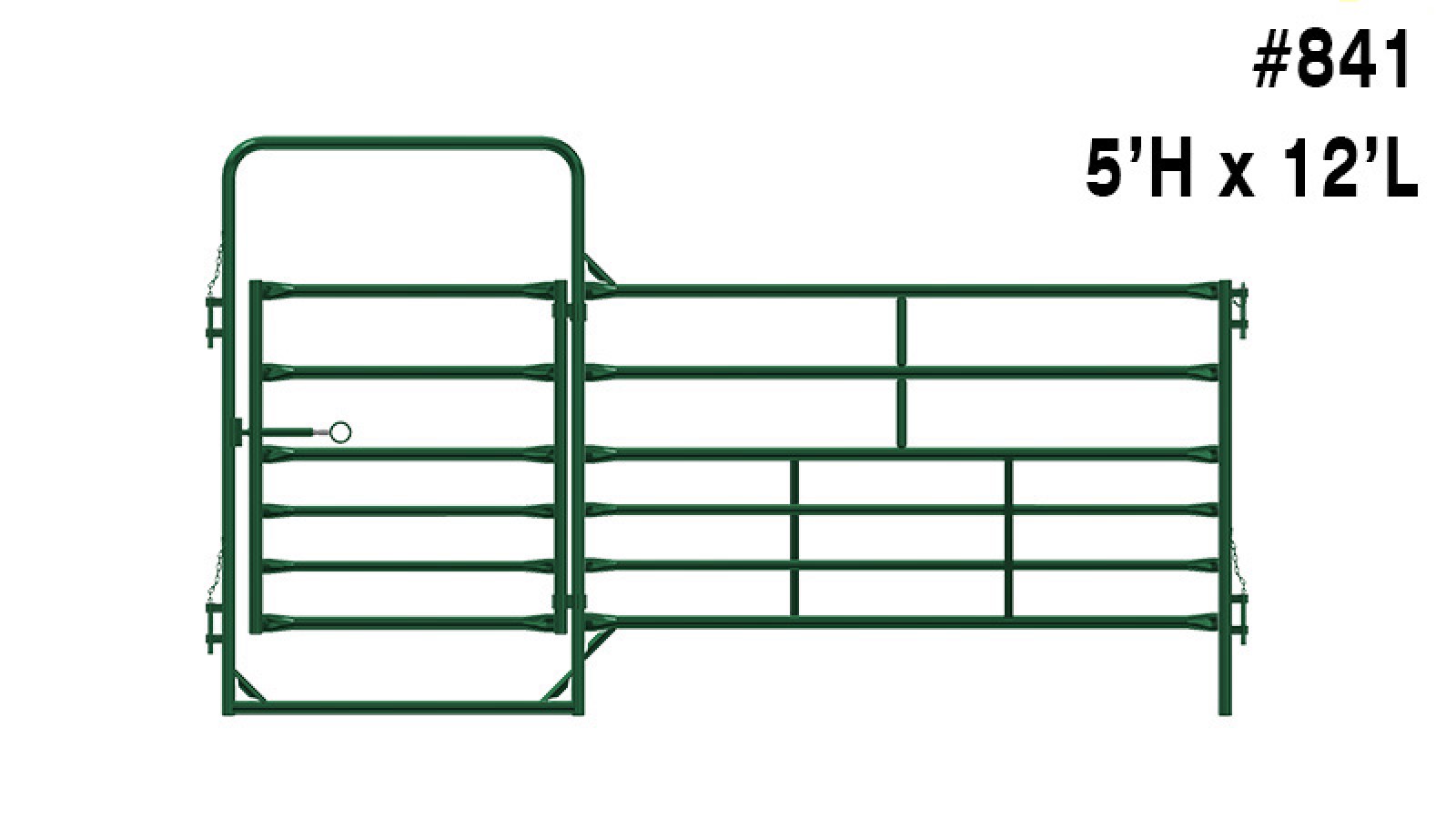

841 12' long x 5' high Heavy Duty Panel with Access-Gate 173

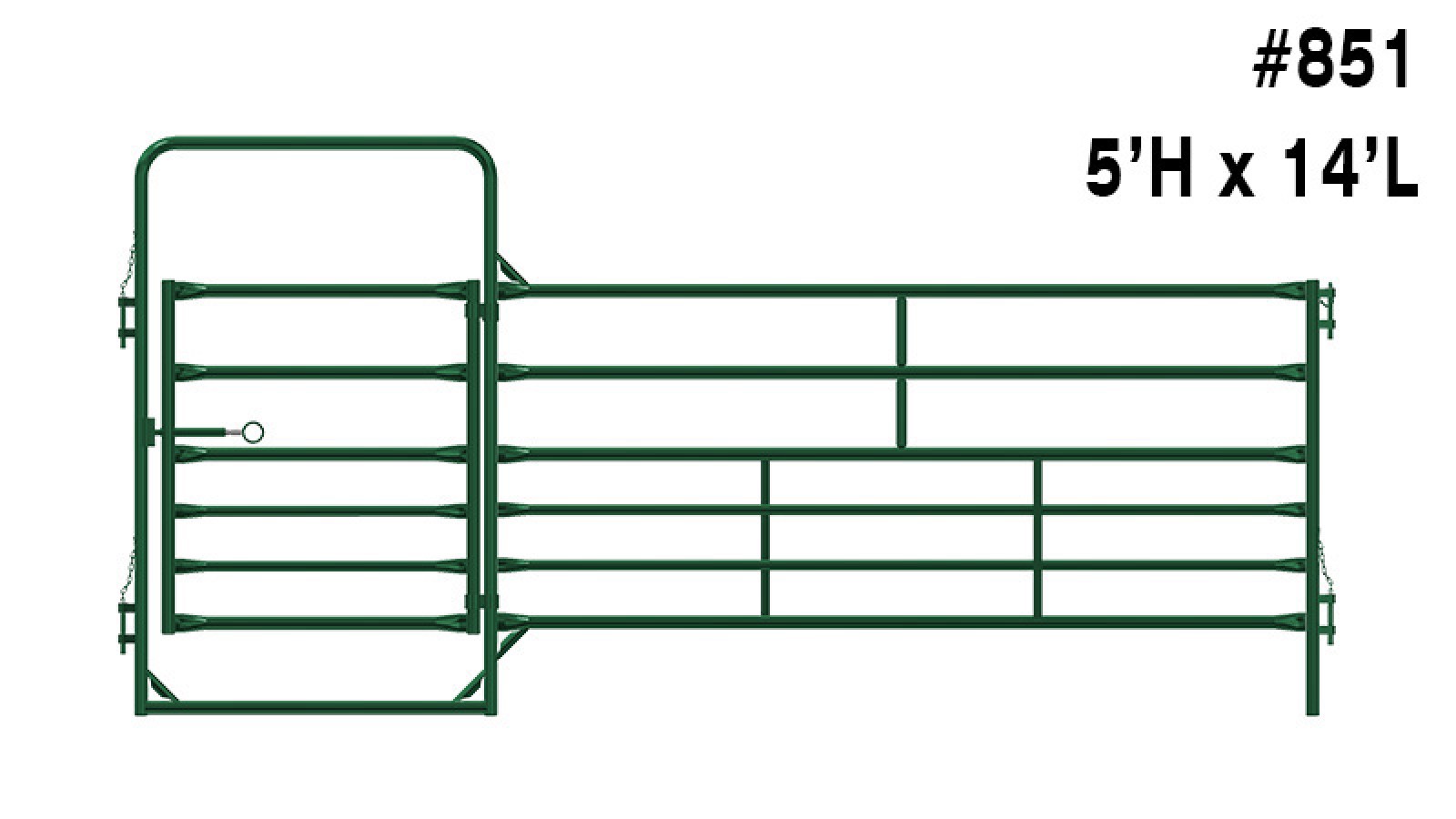

851 14' long x 5' high Heavy Duty Panel with Access-Gate 190

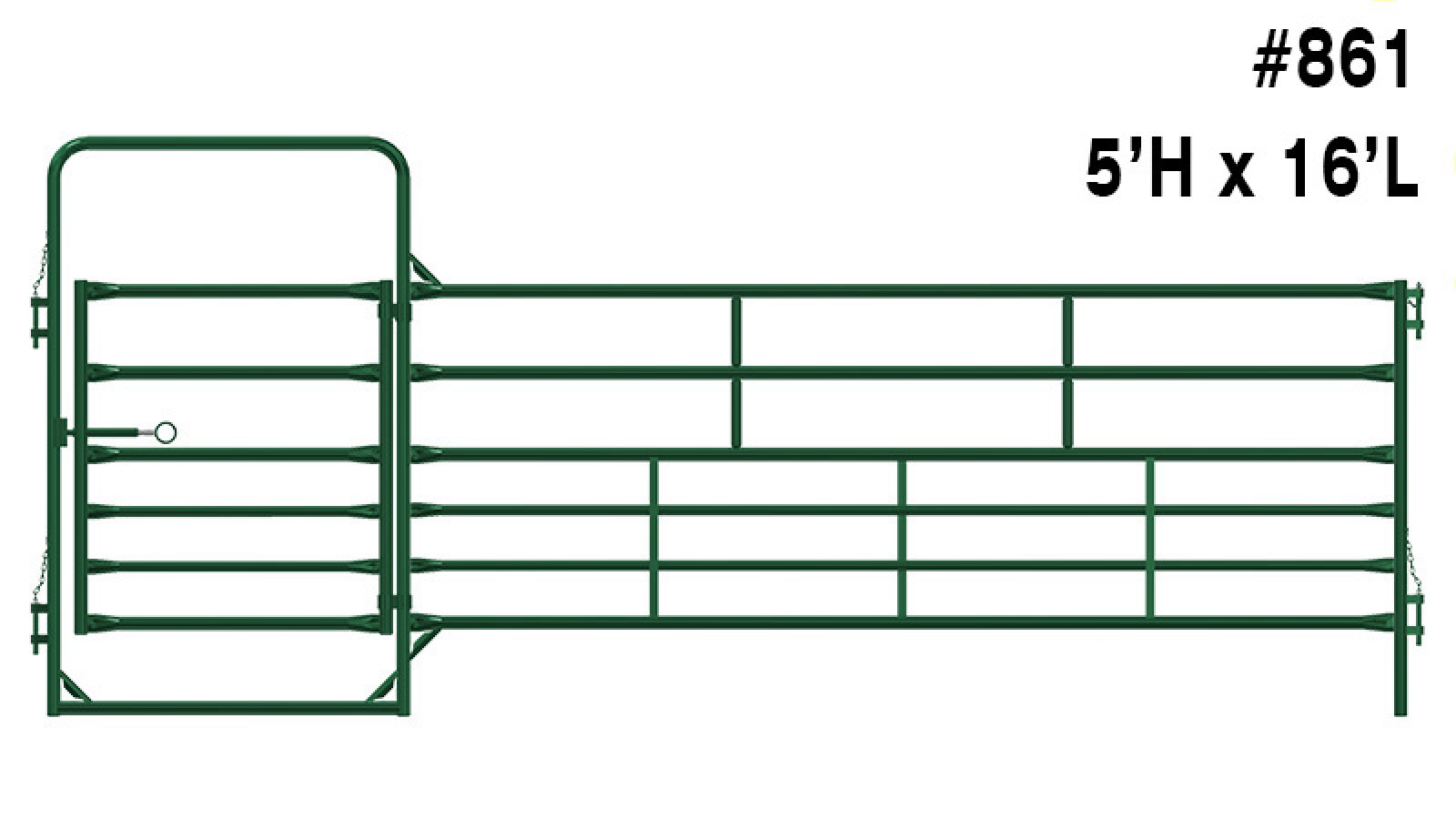

861 16' long x 5' high Heavy Duty Panel with Access-Gate 210

6' High Heavy Duty Panels with Access-Gate

Item Description Weight (lbs)

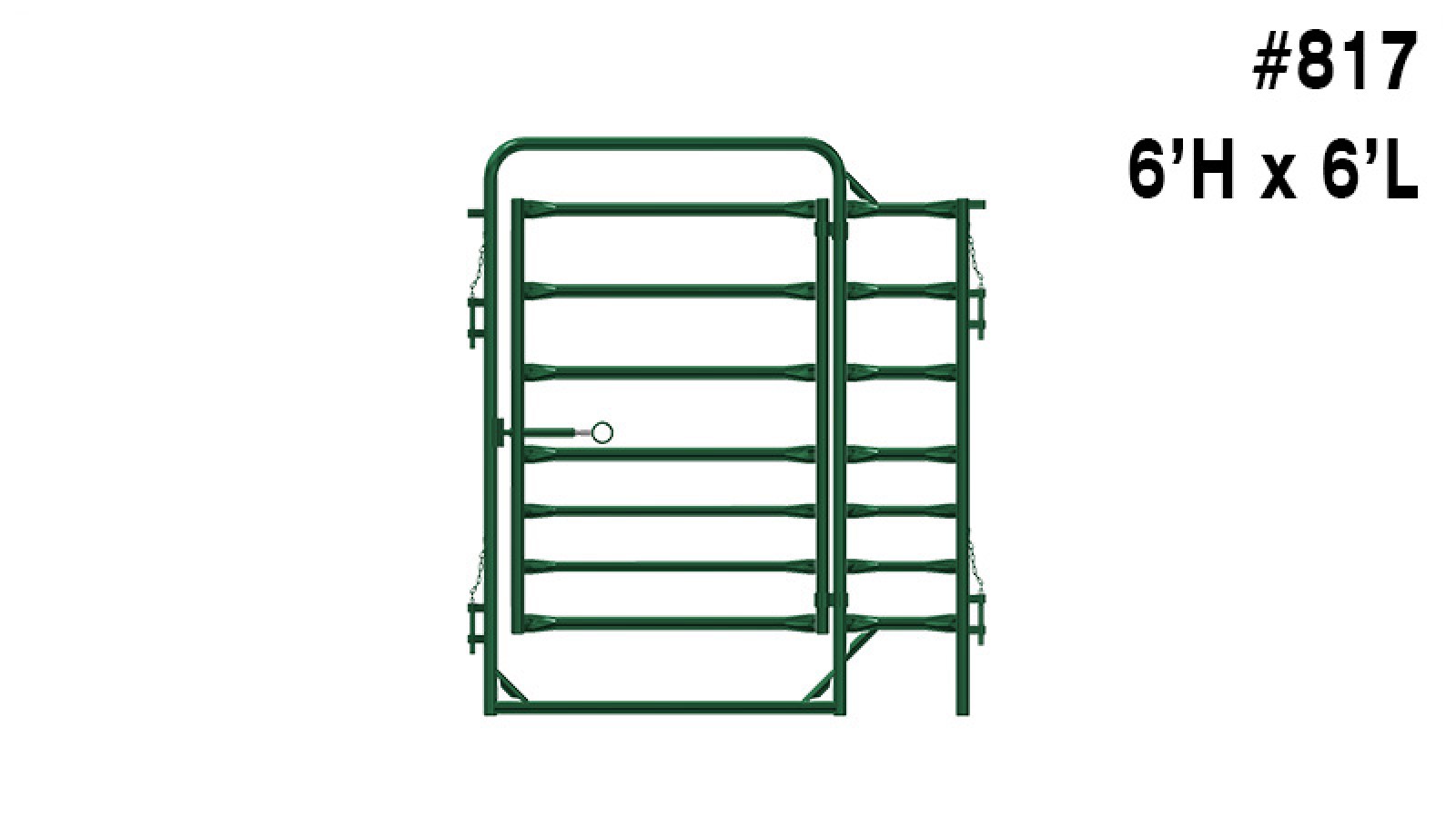

817 6' long x 6' high Heavy Duty Panel with Access-Gate 131

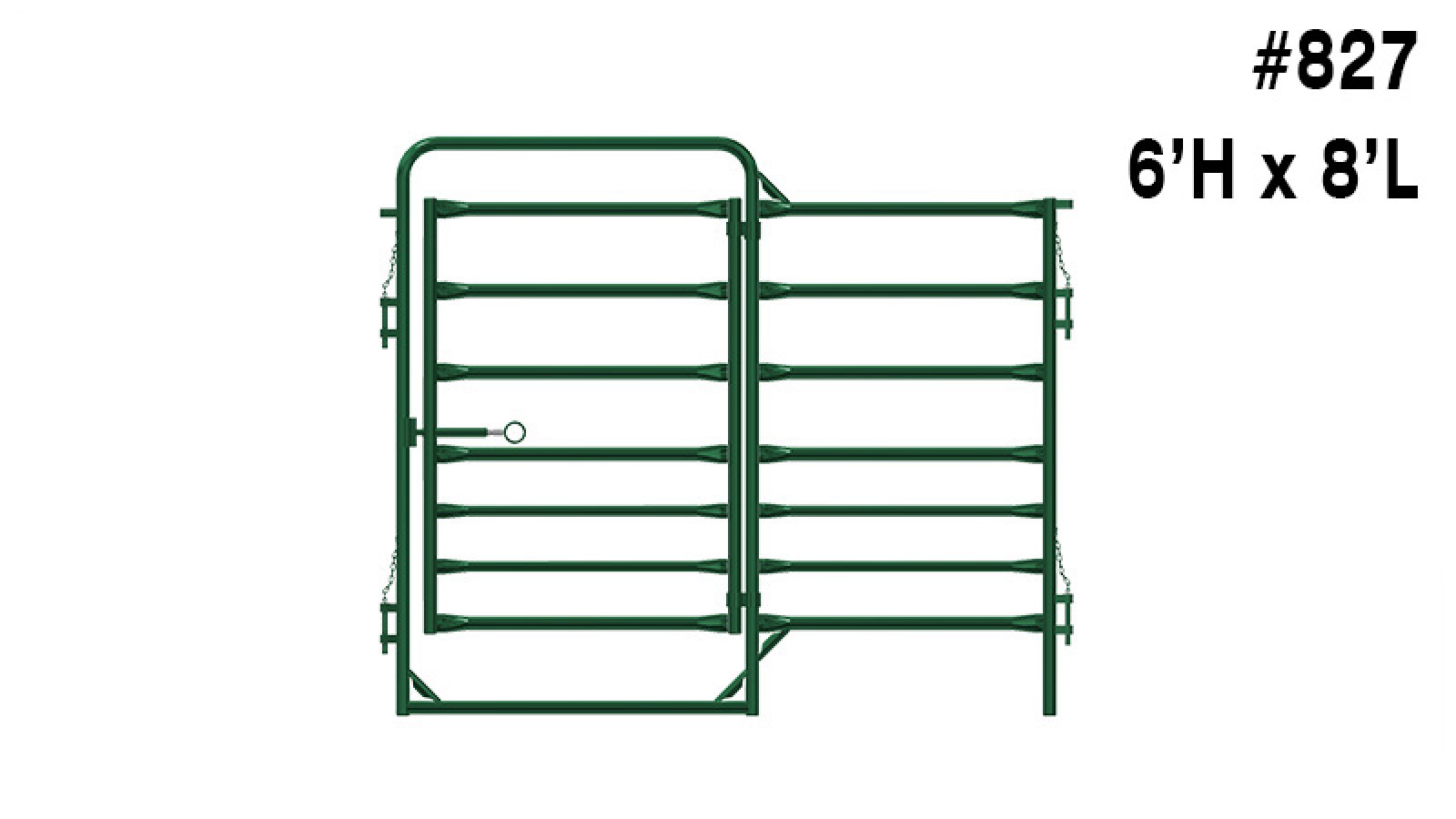

827 8' long x 6' high Heavy Duty Panel with Access-Gate 151

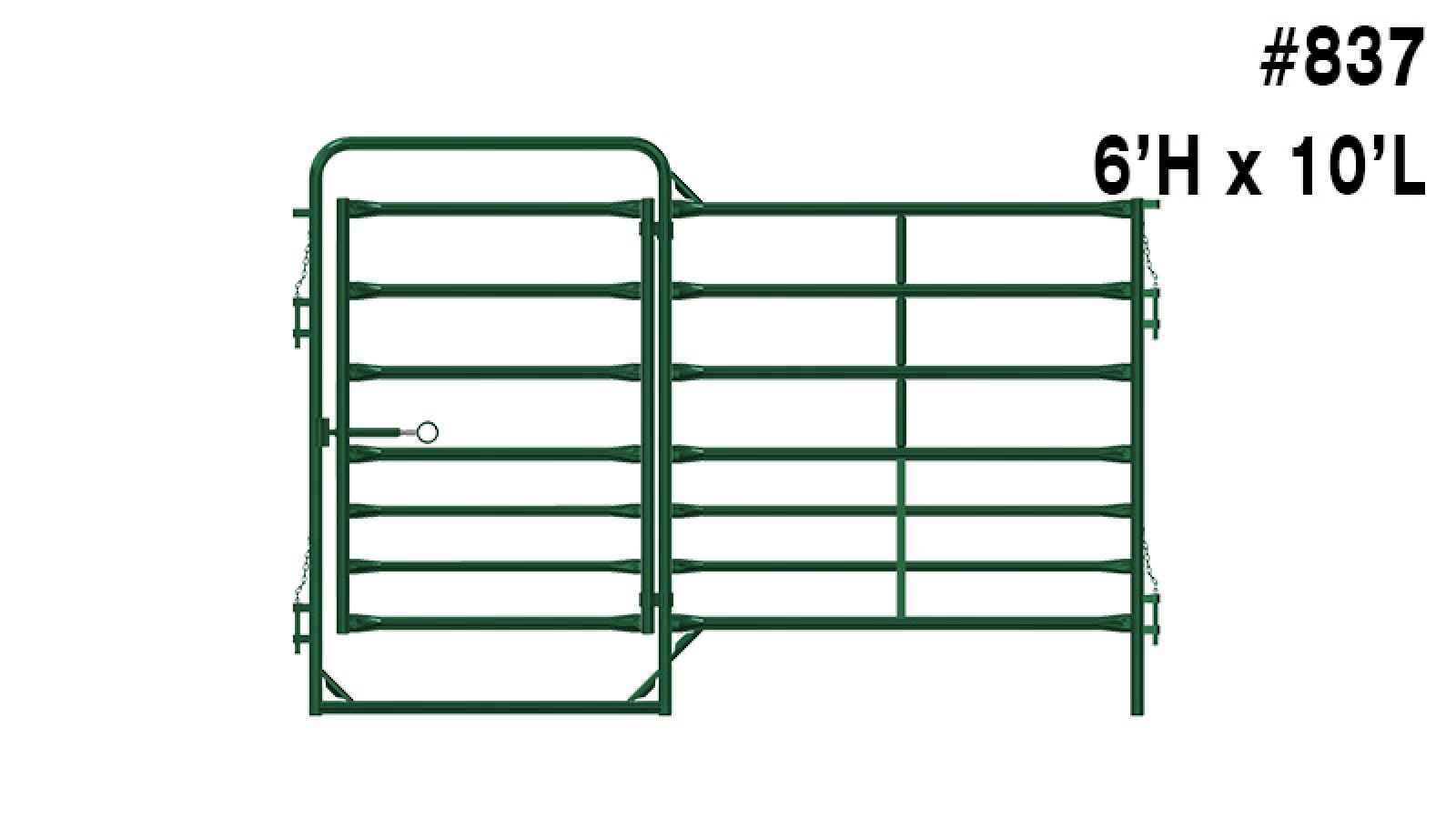

837 10' long x 6' high Heavy Duty Panel with Access-Gate 175

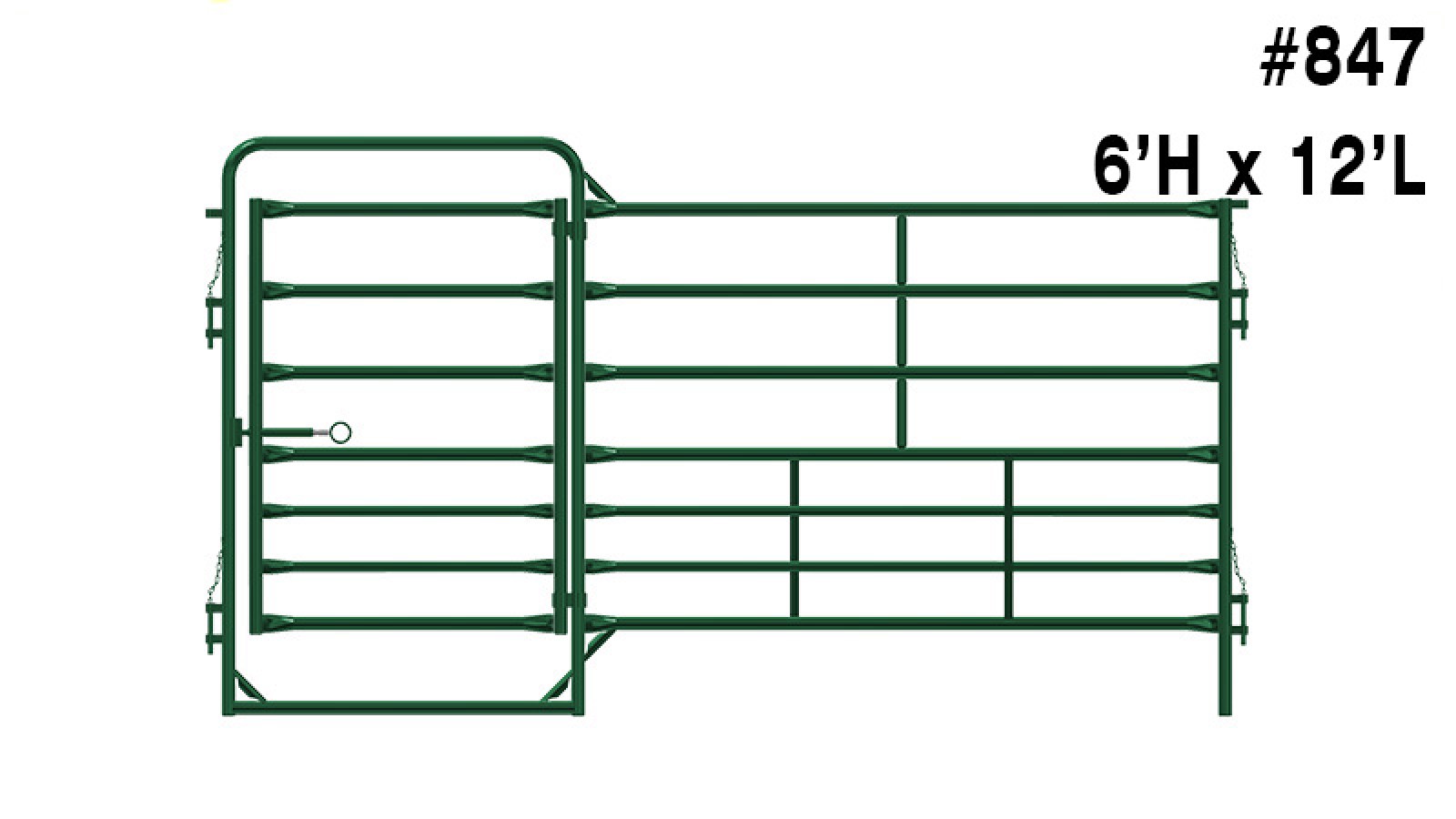

847 12' long x 6' high Heavy Duty Panel with Access-Gate 196

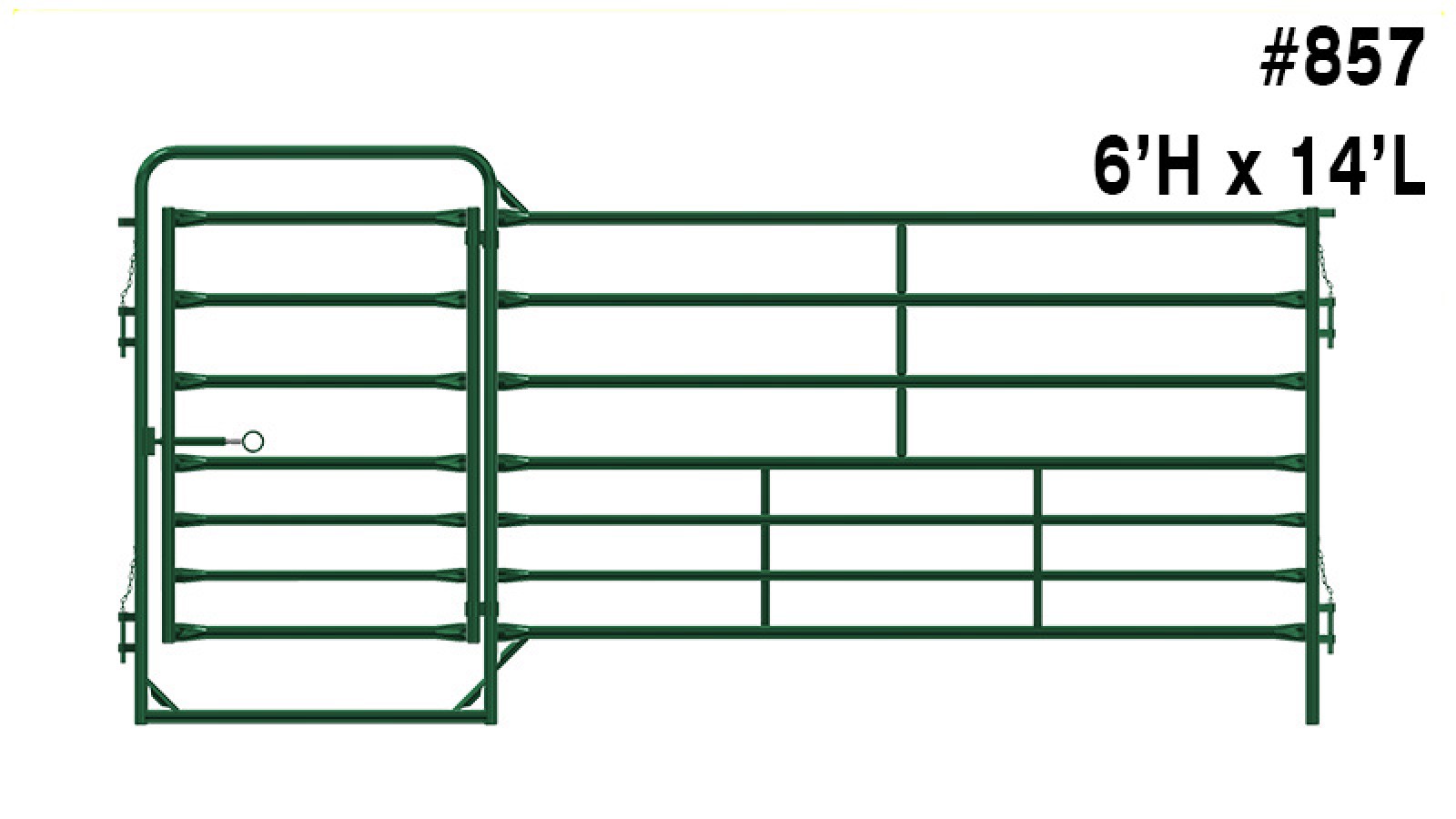

857 14' long x 6' high Heavy Duty Panel with Access-Gate 217

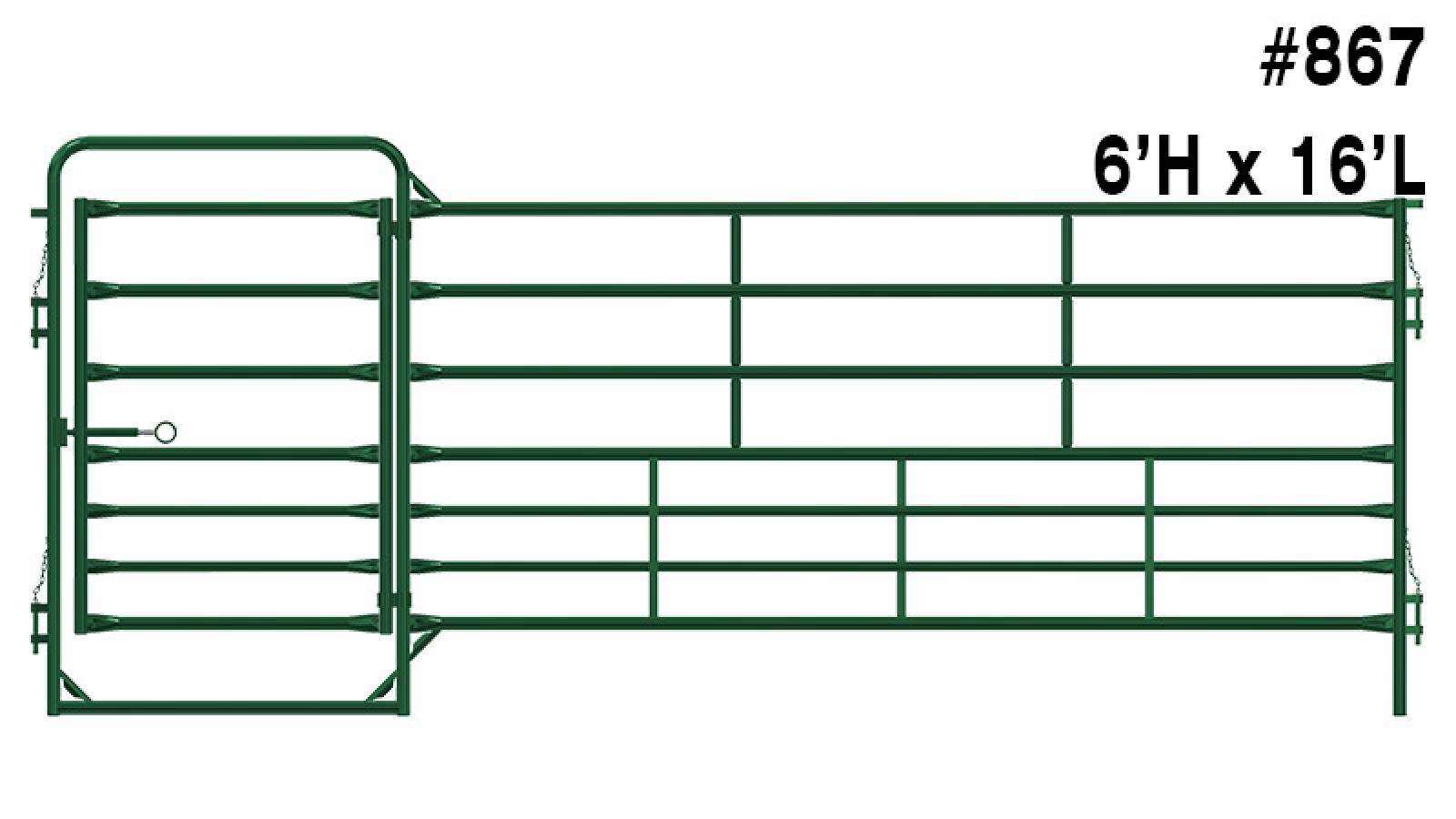

867 16' long x 6' high Heavy Duty Panel with Access-Gate 241
