Item Number: Overhead Alley Spreaders

Overhead Spreaders are used in the construction of temporary handling systems and portable corrals. In situations where you are not using anchored posts you may need to use overhead alley spreaders to keep your alley panels secure and in line.

Hi-Hog’s overhead alley spreaders provide a solid frame for use in the heaviest pressure areas. The frame is constructed of 2 3/8″ OD, 0.125 wall steel tubing. Both end verticals come with connectors on three sides offering excellent connect-ability. The connectors will work with any of Hi-Hog's panels, panels with man gates,  U-frames or frame & gates.

Ask an expert about Hi-Hog's Overhead Alley Spreaders

Hi-Hog offers two styles of Overhead Alley Spreader:

The one piece alley spreaders are primarily 8' in height. The one piece frame is also available for the:

  • 4' long x 7' high overhead alley spreader
  • 8' long x 10' high overhead alley spreader

The four piece alley spreaders are 10' and 12' tall

The 10′ long x 8′ high spreader (item #1690), is commonly used to control the width of the lead-up working alley just before the crowding tub.

If you plan to work your livestock from horseback you will prefer the taller 10′ or 12′ high overhead spreader frames.

Alternate Products
An alternative to the overhead alley spreader is the U-Spreader.


One Piece Overhead Alley Spreaders

7' high Overhead Alley Spreader - One Piece

1660 4 long x 7 high Overhead Frame 1 Piece
Item Description Weight (lbs.)

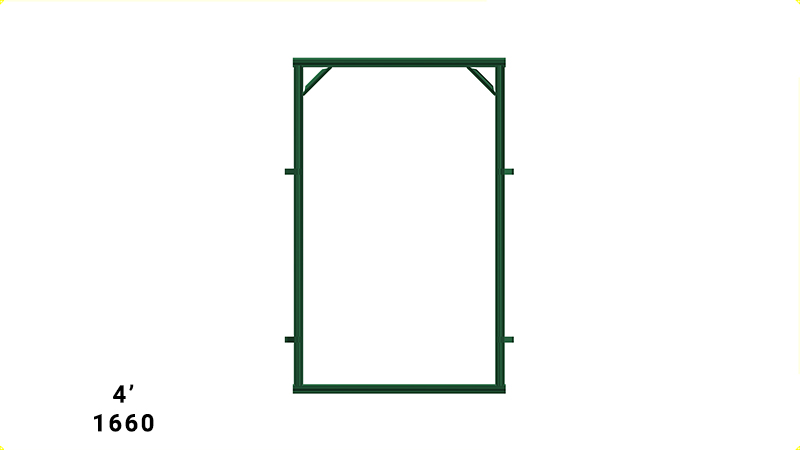

1660 4' long x 7' high Overhead Alley Spreader - One Piece 74

Ask an expert about Hi-Hog's Overhead Alley Spreaders

8' high Overhead Alley Spreaders - One Piece

Item Description Weight

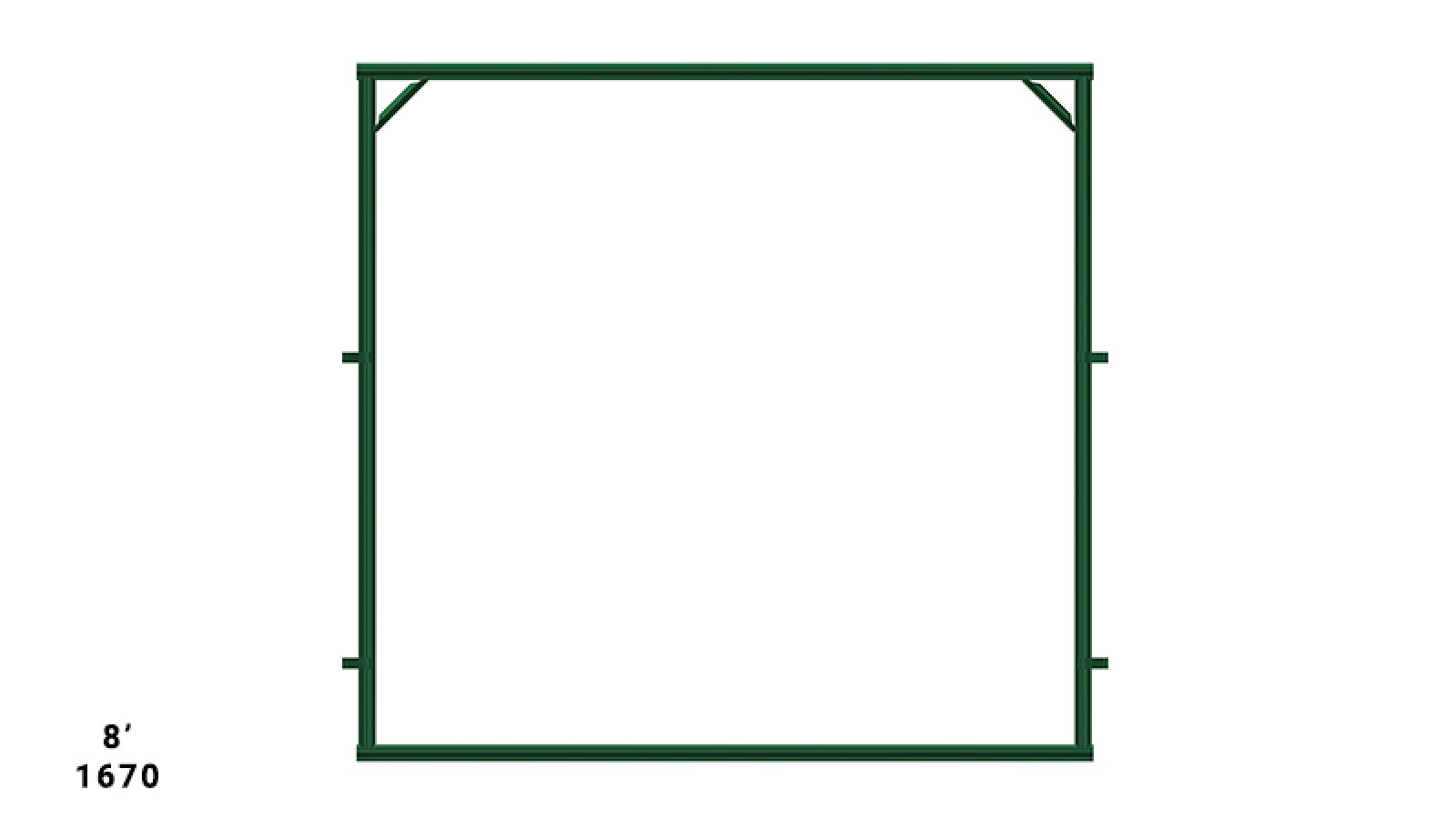

1670 8' long x 8' high Overhead Alley Spreader - One Piece 104

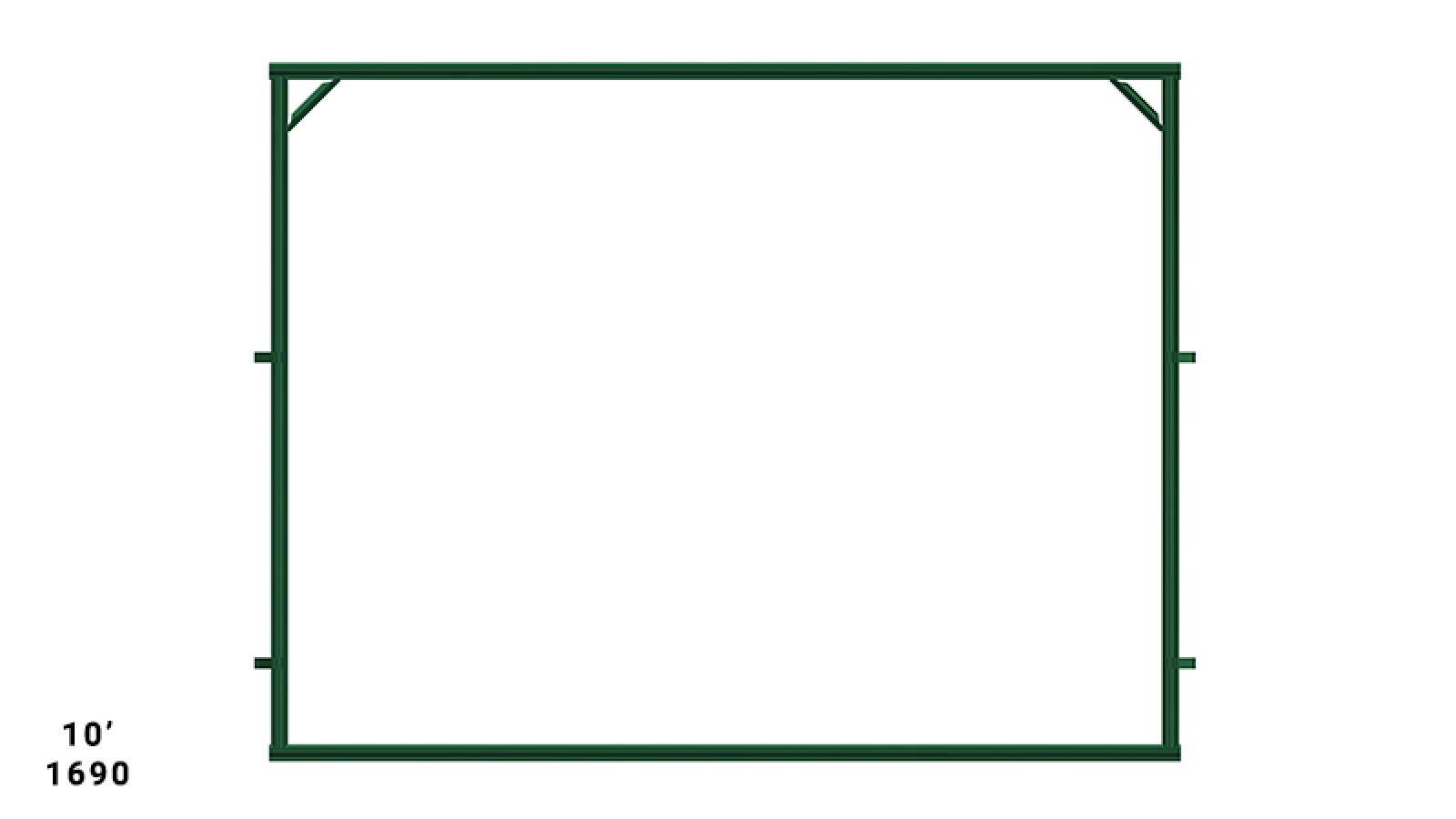

1690 10' long x 8' high Overhead Alley Spreader - One Piece 116

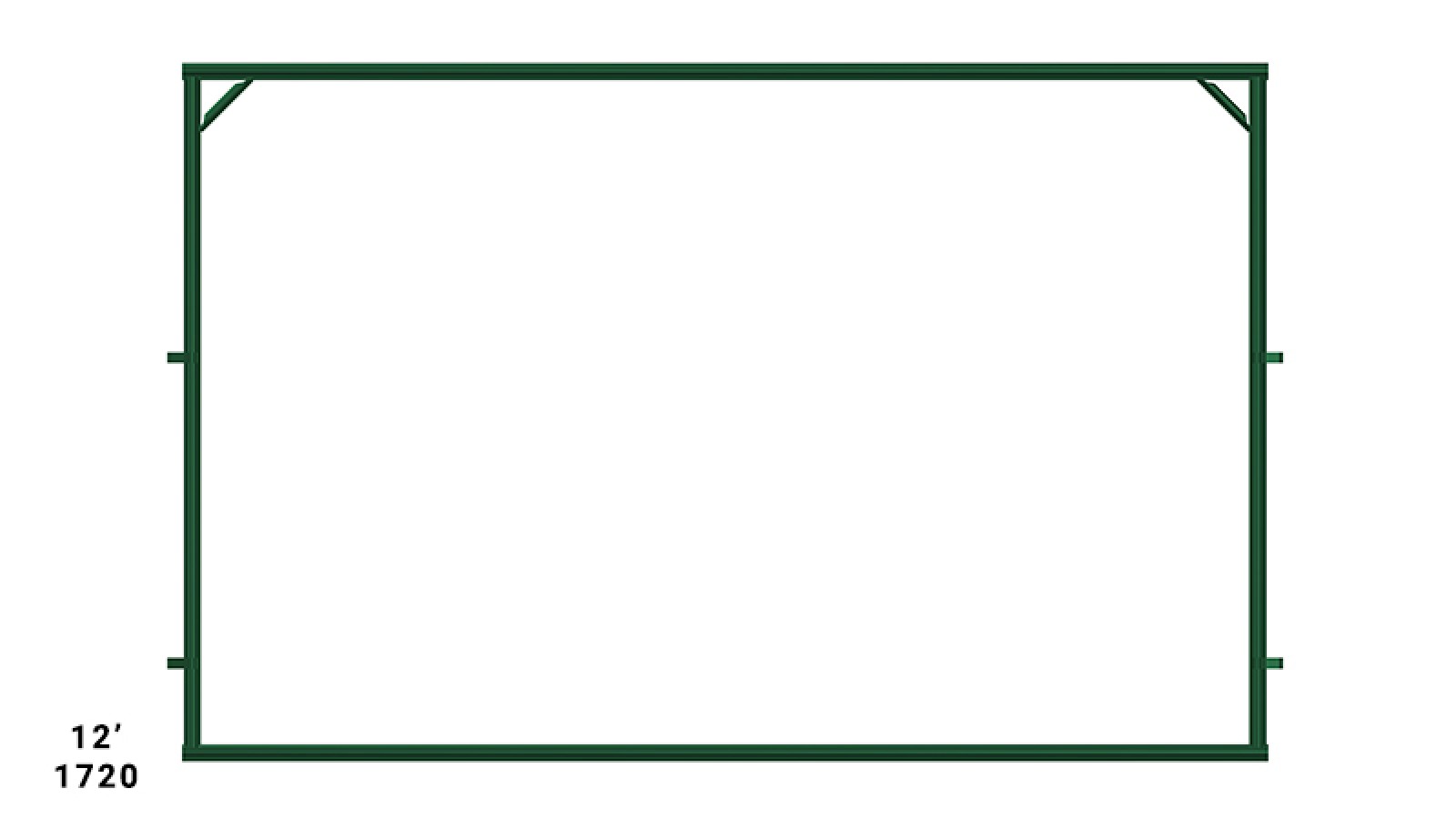

1720 12' long x 8' high Overhead Alley Spreader - One Piece 128

10' High Overhead Alley Spreader - One Piece

1680 8 long x 10 high Overhead Frame 1 Piece

Item Description Weight

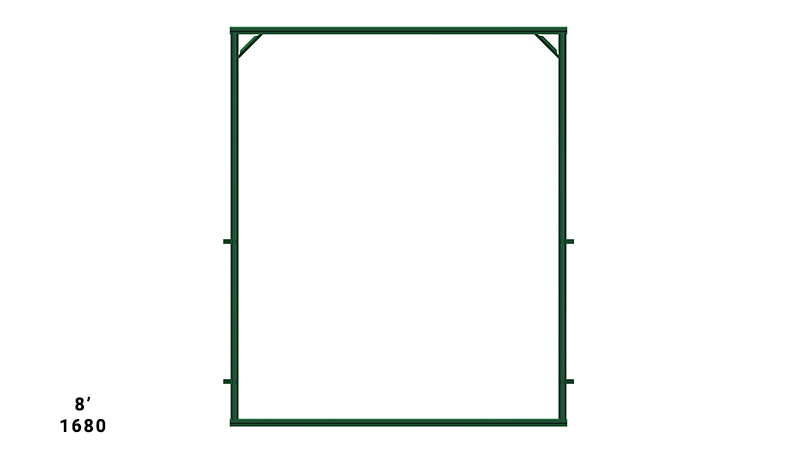

1680 8' long x 10' high Overhead Alley Spreader - One Piece 116



Four Piece Overhead Alley Spreaders

In order to ship these large overhead alley spreaders they are designed to ship as four pieces and assembled where they will be installed. These spreaders are available in heights of 10' and 12'.

10' high Overhead Alley Spreaders - Four Piece

Item Description Weight (lbs.)
1700 10' long x 10' high Overhead Alley Spreader - Four Piece 147

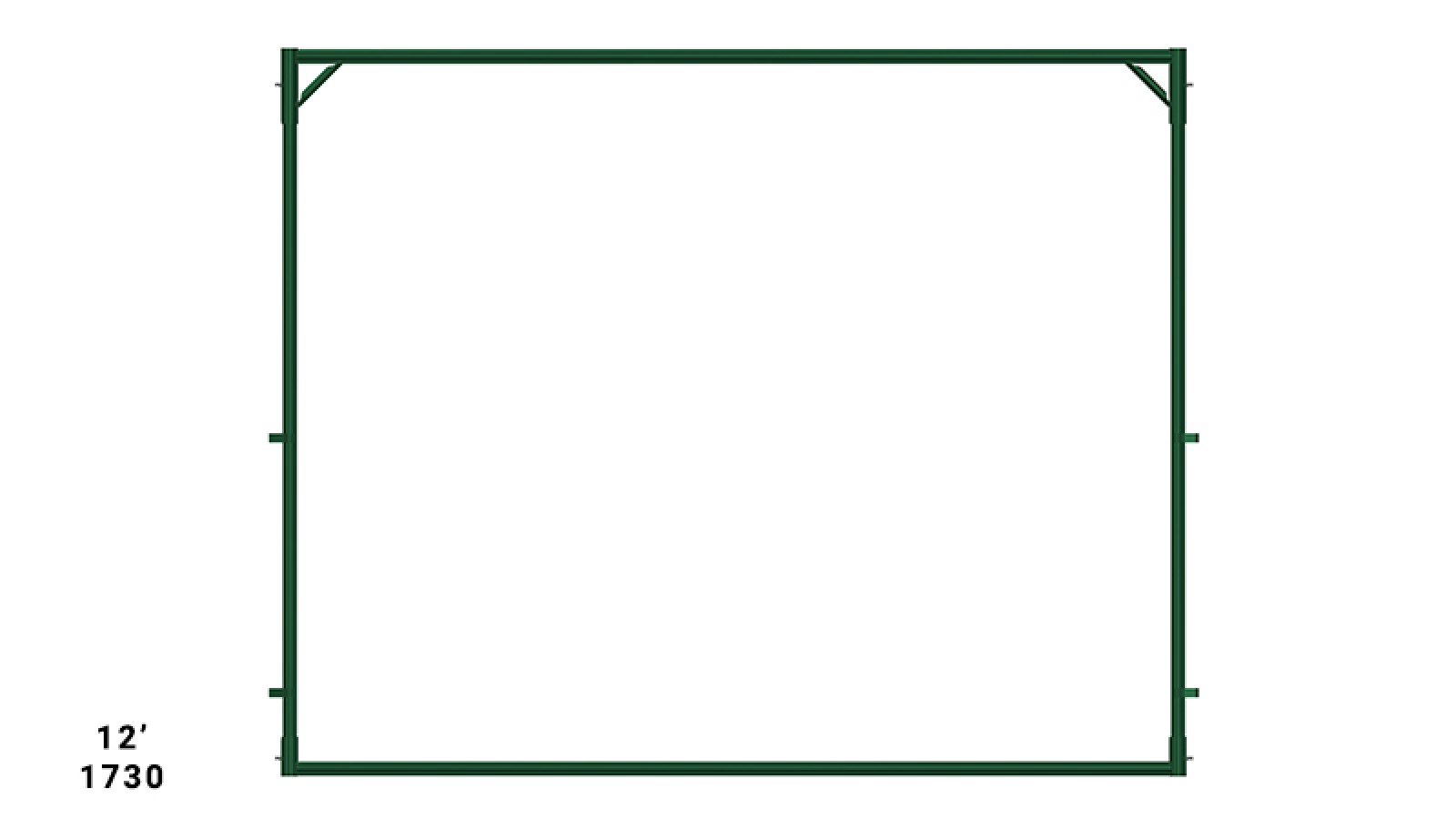

1730 12' long x 10' high Overhead Alley Spreader - Four Piece 159

12' High Overhead Alley Spreaders - Four Piece

Item Description Weight (lbs.)

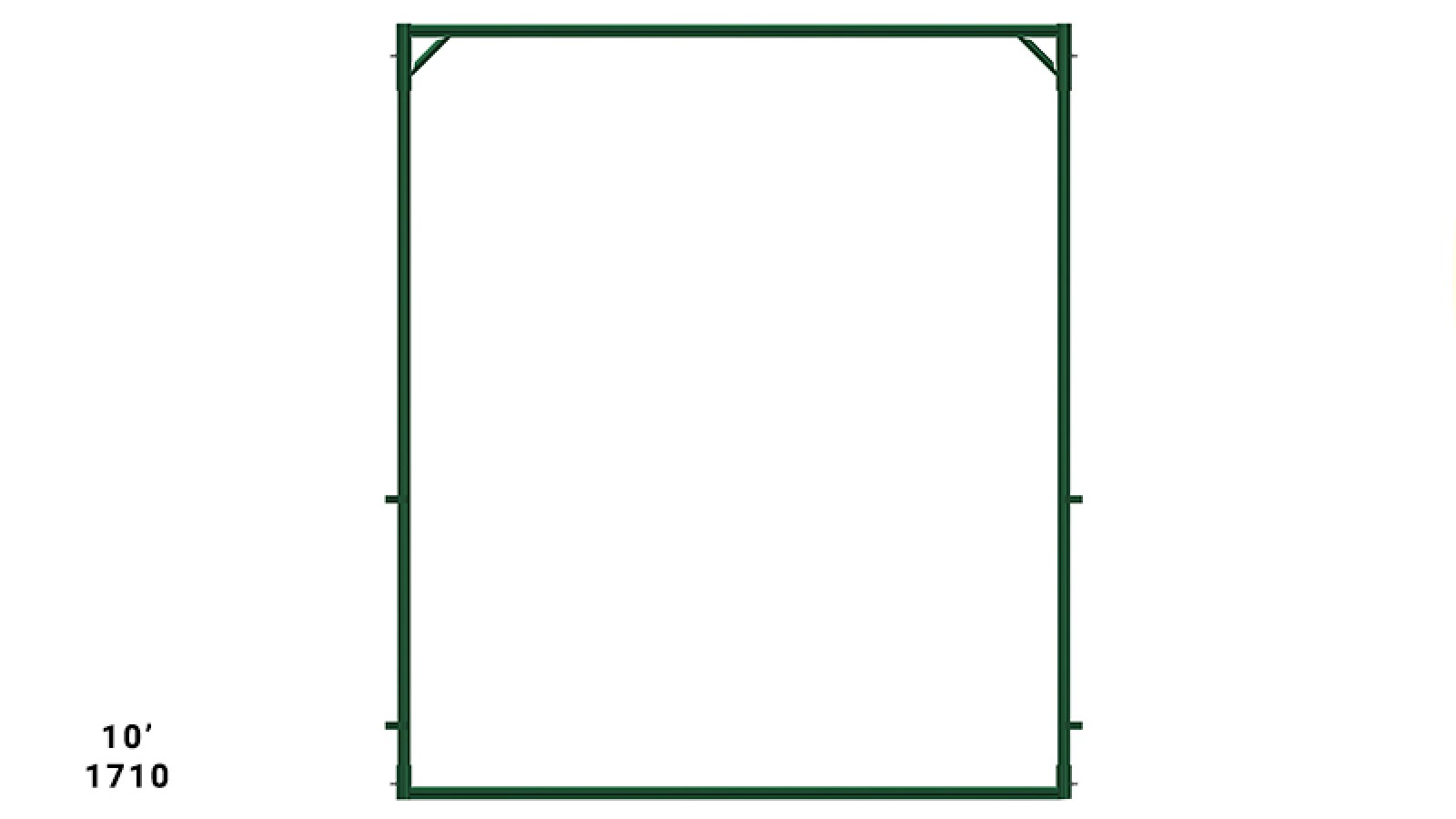

1710 10' long x 12' high Overhead Alley Spreader - Four Piece 159

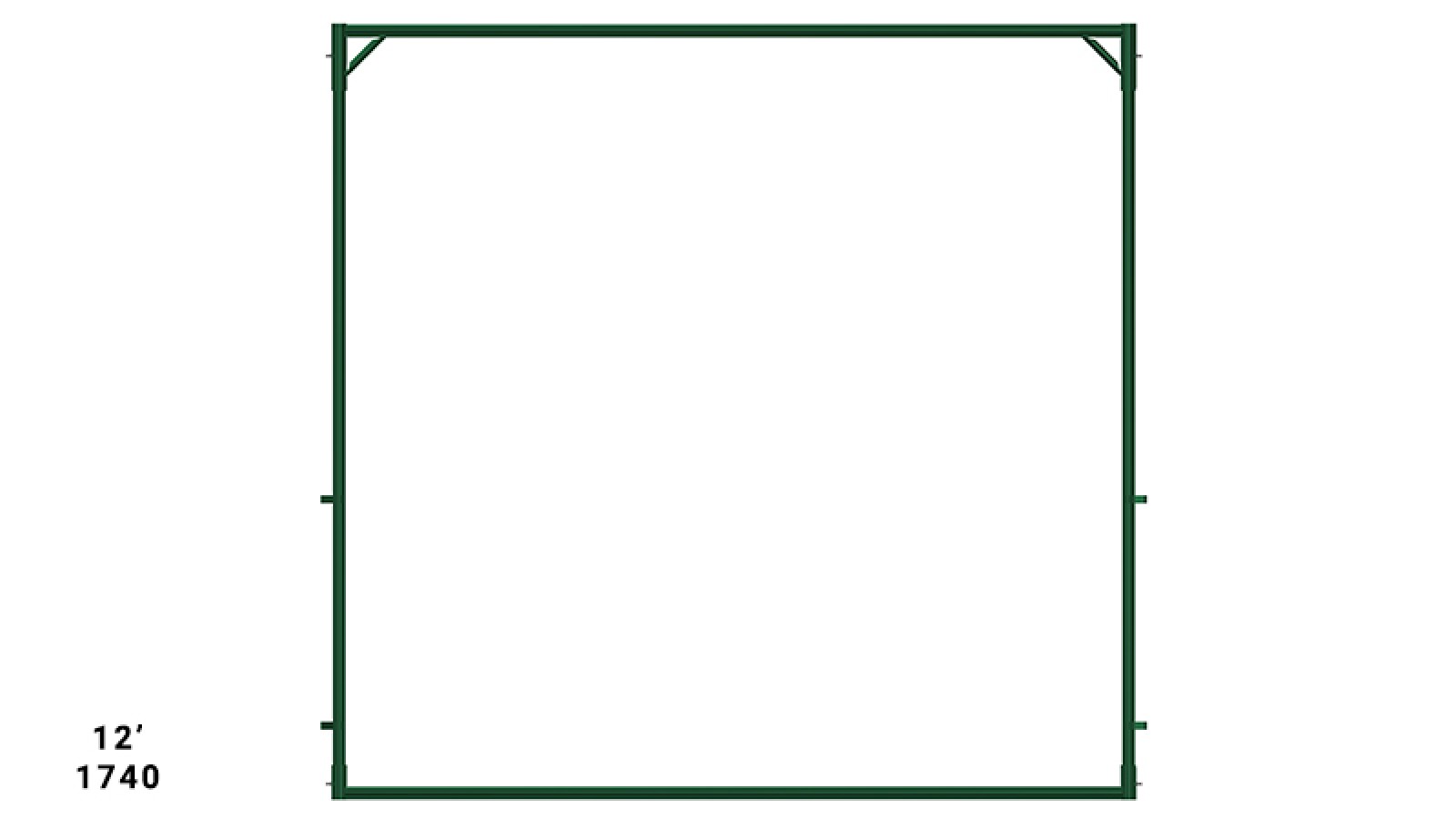

1740 12' long x 12' high Overhead Alley Spreader - Four Piece 171

If you are looking for an alternative to the overhead alley spreader that features unlimited headroom and wider openings look at Hi-Hog's U-spreaders.
