Item Number: Manual Cattle Chutes 1550, 1551, 1571

Hi-Hog’s manual parallel axis (PA) squeeze chute is highly regarded for its effortless handling, highly efficient operation, simple, safe design, and unmatched animal accessibility.

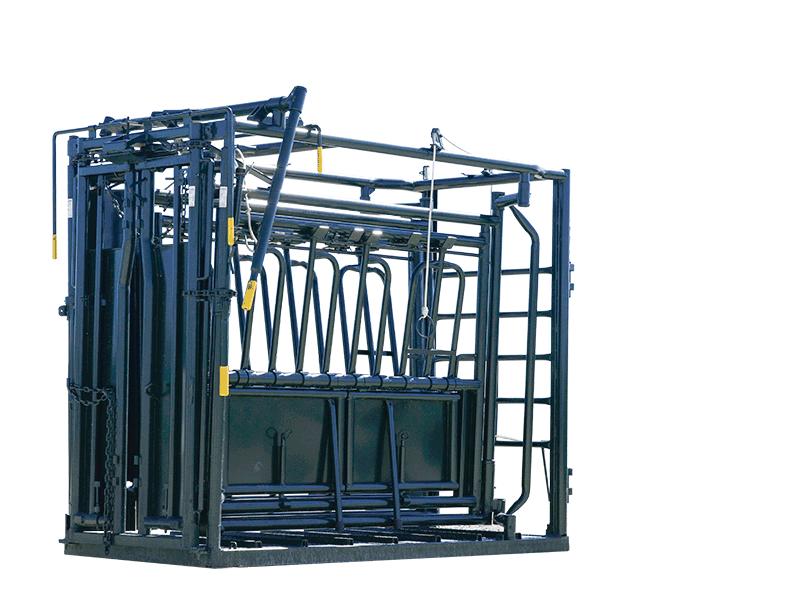

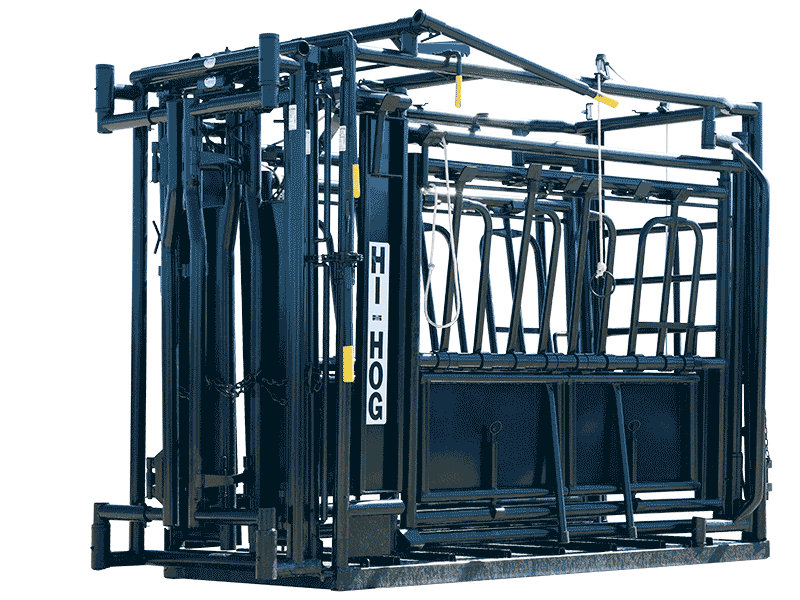

HI-HOG'S #1550 MANUAL PARALLEL AXIS SQUEEZE CHUTE WITH THE STANDARD SELF CATCH HEADGATE AND OPTIONAL #1536 HEAD HOLDER



A Hi-Hog Cattle Squeeze Chute used to safely secure cattle for veterinarian procedures.

SAFE, SECURE, COMPLETE ACCESS AND YEAR AFTER YEAR RELIABLE OPERATION

The Parallel Axis Squeeze chute comes with Three Headgate options.

  1. For those with DE-HORNED or polled livestock, the Parallel Axis Squeeze Chute with self-catch headgate (1550).
  2. Paired with the self-catch headgate with an integrated neck extender (1551)
  3. For those with HORNED cattle Hi-Hog offers the chute with a manual headgate (1571).

 *NOTE: The #1536 Head Holder is not for the #1551 or #1571 Squeeze Chute Option.*NOTE: The #1571 Squeeze Chute Requires a #1535 Head Holder

Item # Description Weight (lbs.)
1550 PA Squeeze Chute with Self-Catch Headgate 1702
1551 PA Squeeze Chute with Self-Catch Headgate & Neck Extender 1875
1571 PA Squeeze Chute with Manual Headgate with Brackets for mounting #1535 Head Holder 1840
1536 Attachable Head Holder for #1550 Squeeze Chute *Please designate Left or Right side of animal for mounting 122
1535 Attachable Head Holder for #1556 Hydraulic Squeeze Chute or #1571 PA Squeeze Chute with Manual Headgate. *Please designate Left or Right Side of animal for mounting. 108
A cattle squeeze chute used for the safe handling of cattle requiring vererinary care

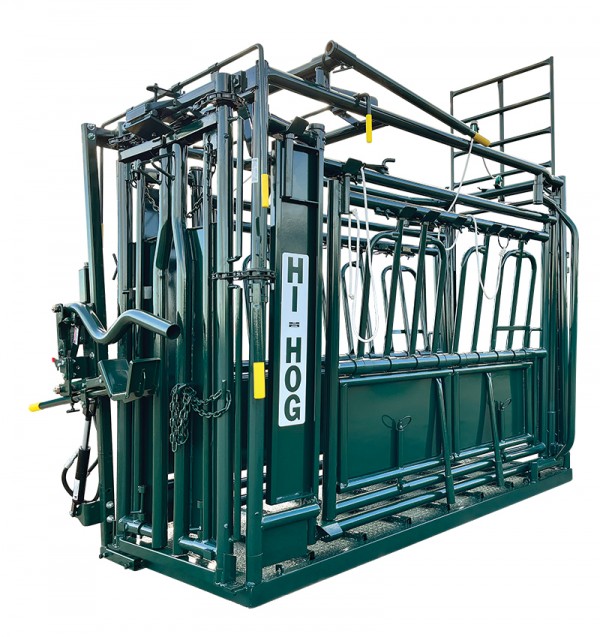

#1571 SQUEEZE CHUTE WITH #107 MANUAL HEADGATE and OPTIONAL #1554 STERNUM BAR

Hi-Hog PA Squeeze Chute provides unmatched animal access THE MANUAL PA SQUEEZE CHUTE PROVIDES UN-MATCHED ACCESS TO THE ENTIRE COW:

  • All of the body access gates come with simple gravity slam latches that can be quickly and easily operated, even while wearing mitts.
    • To close, simply shut the gate and the latch engages automatically
    • To open, simply lift the gravity latch and the access gate is released
    • The foot access gates are secured with spring loaded plunger latches
  • The squeeze operator can quickly open, and securely close both side exits, from either side of the chute
  • The Hoof Access Panels swing up and have a Sliding Lock for the ranchers protection
  • The Shoulder Access panel is sheeted with a flip latch to protect a cow's front hooves

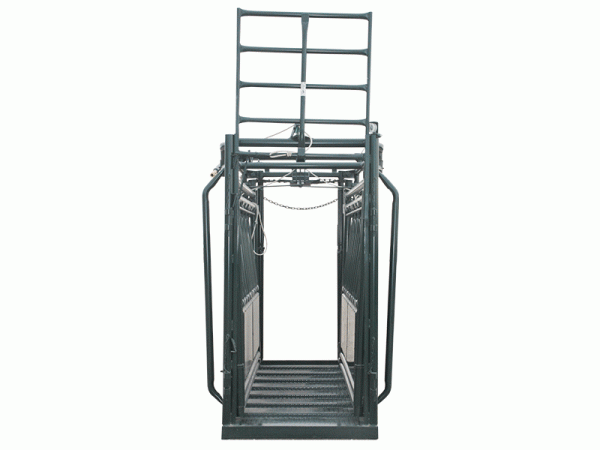

  • The weight of the lift-up tailgate is offset by a counter-weight to ensure it is light enough to be easily lifted but heavy enough to drop and latch on its own. The tail gate is controlled by a long rope which provides you with an opportunity to freely work the flight zone of your livestock for more efficient cattle movement.

Efficient cattle handling

Hi-Hog’s parallel axis cattle squeeze chute with self catch headgate is designed to  process your livestock as quickly and safely as possible. This is because Hi-Hog’s cattle squeeze chute is uniquely designed to catch the cow without an operator standing beside the squeeze chute. Once the Headgate is set (with the simple Limiting Chain), the operator is free to move and work the cow in the alley, rather than stand at the front, in the animal's flight zone.

When the cow enters a Hi-Hog squeeze chute there is nobody standing in a position that will cause your animals to hesitate. Instead, the operator can be working the cow’s flight zone to efficiently move their cattle from a the alley into the squeeze chute.

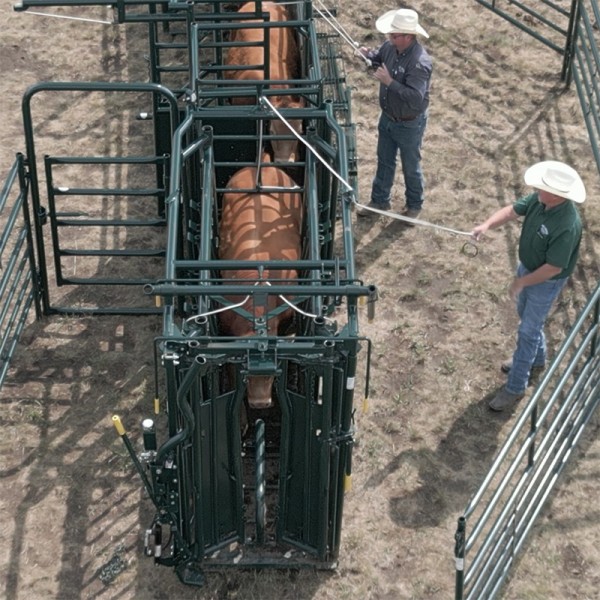

A rancher using a Hi-Hog Cattle Squeeze Chute to safely restrain a cow prior to veterinary care.

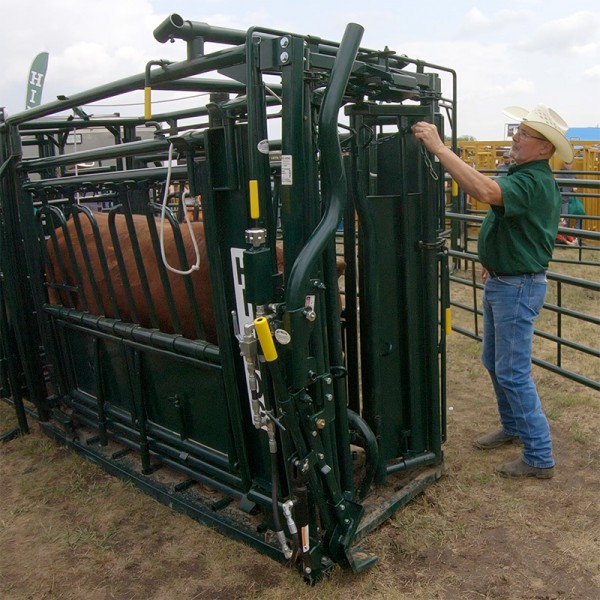

SIMPLY SETTING THE LIMITING CHAIN FOR THE HEAD AND NECK WIDTH

The forward motion of the cow will allow it's head and neck to pass through the opening in the Headgate and it's shoulders will Positive Lock the Headgate closed.

The overhead locking is individual for forward and reverse Headgate motion, ensuring the Heagate will Not skip under pressure.

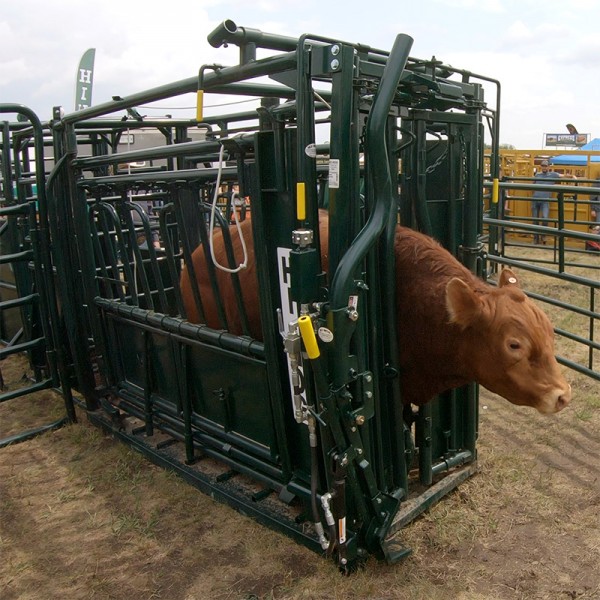

A cow is safely secured in a Hi-Hog Cattle Squeeze Chute in preparation for veterinary care.

THE HEADGATE IS POSITIVE LOCKED BY THE FORWARD MOTION OF THE COW

Hi Hog Manual Cattle Squeeze Chute

Before you begin, quickly set the self-catch headgate width to the size of the animals you will be processing. With the stanchion width set, you are ready to efficiently work your animals in the lead-up alley:

  1. Set the self-catch headgate quickly with the simple but reliable limiter chain (How to set the Hi-Hog self-catch headgate).
  2. Adjust the sides of the chute to match the width of the next animal
  3. Lift the tail gate with the extended control rope and walk past the head and shoulder of the cow in the alley. As you move past the animals shoulder and into the animal’s flight zone, the cow will move forward into the squeeze chute on its own.
  4. Your cow, on its own, triggers the headgate and catches itself.
  5. Treat and release your animal

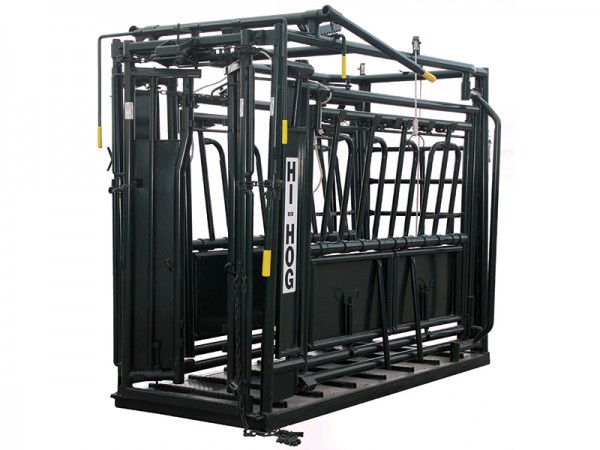

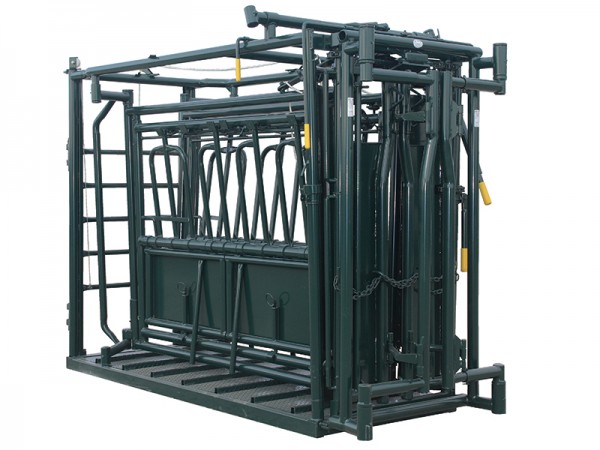

       #1550 Hi-Hog Parallel Access Manual Squeeze Chute



Additionally, by providing unmatched animal accessibility and easy controls, you can process your livestock faster and safer.

Hi-Hog parallel axis squeeze chute with neck extender#1551 MANUAL CATTLE SQUEEZE CHUTE WITH ATTACHED NECK EXTENDER

Hi-Hog cattle squeeze chute with neck extender

THE NECK EXTENDER WORKS IN PARALLEL WITH THE HEADGATE OR QUICKLY UN-BOLTS


TIP: Check out Hi-Hog's resource articles;



Ask an expert about Hi-Hog's manual cattle squeeze chute

Low Stress Cattle Squeeze Chute

Hi-Hog’s Parallel Axis Squeeze Chute hosts a range of features focused on the safety and comfort of your livestock.

  • The sides of the chute are mounted at a slight slope to provide your livestock with support without interfering with their natural stable stance
  • Both sides of the squeeze draw in and forward in one smooth easy controlled motion to keep any sized animal centered and balanced (32” wide down to 11.5”)
  • The bottom half of the side panels are clad in sheet metal to
    • remove foot traps
    • minimize the opportunity for your cattle to climb the sides
    • remove pressure points (no bolt heads)
  • All sheet metal has been caulked with silicon to reduce chute noise and vibration.
  • The head gates are mounted to the squeeze body with spring cushioned fasteners to absorb shoulder impact
  • The inside verticals of the headgate run parallel. This reduces the opportunity of your livestock from choking should the animal go down while locked in the head gate
  • The self-catch headgate can be swung fully into the chute, or fully out of the chute. So it does not matter if your animal is pushing or pulling on the headgate when you release it. You know you can release it easily and provide them with a clear, unobstructed exit with no risk of hip-lock.
  • The manual headgate opens to the full width of the cattle chute for a clear, unobstructed exit.
  • The heavy duty steel checker plate squeeze floor comes with a custom high grip powder coat finish and large 1.25” square traction bars for confident livestock footing.

Ask an expert about Hi-Hog's manual cattle squeeze chute

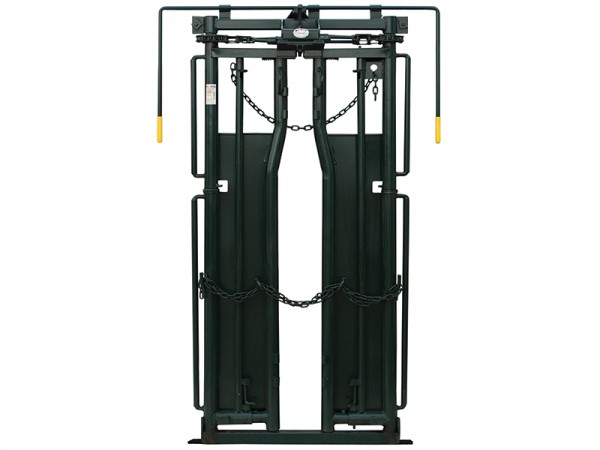

Hi Hog Manual Cattle Squeeze Chute self catch headgate

HI-HOG'S #100 MANUAL PA SQUEEZE CHUTE HEADGATE



Outstanding Animal Access

Hi-Hog offers you simple, unmatched access to your livestock, no matter how big or small your animals may be.

  • All Hi-Hog squeeze chutes include a large side exit on both sides of the chute.
  • Both of the side exit gates include four drop-down body access panels and two lift-up foot access panels.
  • Between the side exit gate and the head gate (on both sides of the chute) you will find a large shoulder access gate (W 9.25” x H 56.5”).
  • If you prefer the squeeze chute with integrated neck extender you gain an additional, 8.5” wide, secure access window for neck injections.
  • To provide the squeeze operator with unrestricted access the:
    • drop-down body access panels lay flat against the chute when opened.
    • lift-up foot access panels swing up and latch flat against the side of the chute when opened.

Ask an expert about Hi-Hog's manual cattle squeeze chute

A cow safely held in a cattle squeeze chute for veterinary care

EASE OF OPERATION - SET THE HEADGATE OPENING AND LET THE COW DO THE WORK

Ease of Use

Hi-Hog’s chute is very simple and easy to operate to ensure you can process your livestock as quickly as possible with a minimum of stress, for both you and your livestock.

  • All of the body access gates come with simple gravity slam latches that can be quickly and easily operated, even while wearing mitts.
    • To close, simply shut the gate and the latch engages automatically
    • To open, simply lift the gravity latch and the access gate is released
    • The foot access gates are secured with spring loaded plunger latches
  • The squeeze operator can quickly open, and securely close both side exits, from either side of the chute
  • The squeeze action could not be easier. You could easily squeeze the chute with your pinky finger if you wanted to.
  • The weight of the lift-up tailgate is offset by a counter-weight to ensure it is light enough to be easily lifted but heavy enough to drop and latch on its own. The tail gate is controlled by a long rope which provides you with an opportunity to freely work the flight zone of your livestock for more efficient cattle movement.


TIP: many ranchers will lift and hold the tail gate until an animal passes below the tail gate. When the animal is under the tail gate the rancher will rest the bottom of the tail gate on the animals hip and release the control rope. When the animal completely passes below the tail gate, the gate will drop on its own (before the next animal can enter the chute) and lock in the closed position.

  • Hi-Hog’s self-catch head gate will catch and hold your cattle without you needing to be at the head gate at all. Once the head gate is set in the self-catch position, you are completely free to move. You are free to work the alley or load the crowding tub. And because you are not standing by your chute distracting your livestock your cattle will enter the chute with much less hesitation.
  • When it’s time to release your livestock from your squeeze chute, they are likely pushing or pulling on the head gate. Don’t fight them, simply release the self-catch head gate in the same direction they wish to go.
  • For those looking for more head control, consider adding Hi-Hog's head holder. The #1536 Head Holder bolts on to the #1550 PA squeeze with self-catch Headgate.

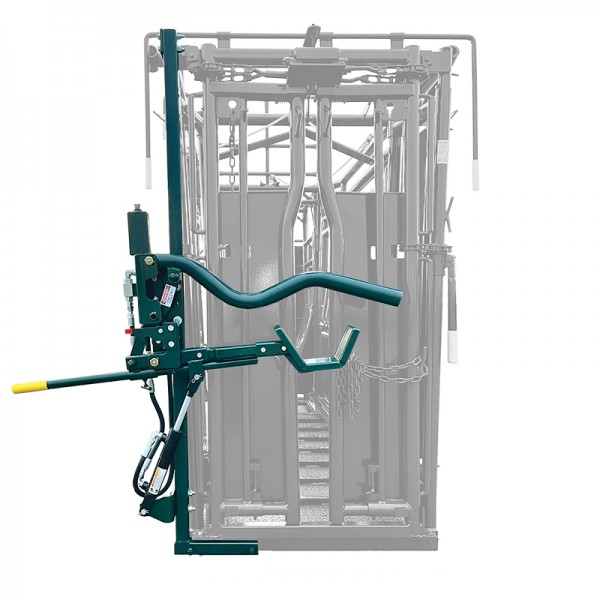

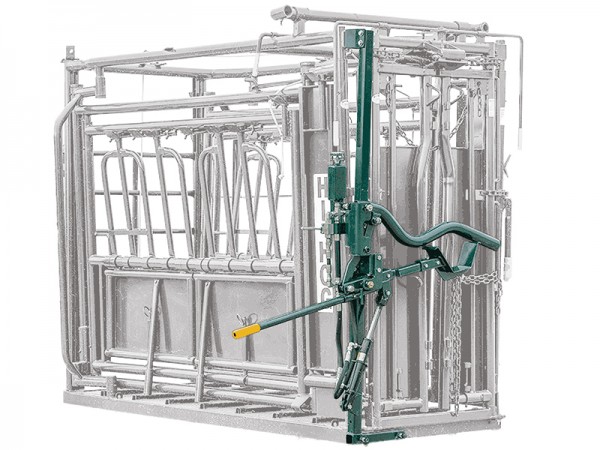

A head restaining device for cattle for safe neck injections.

#1536 HEAD HOLDER MOUNTS LEFT OR RIGHT (Animal Position)

Ask an expert about Hi-Hog's manual cattle squeeze chute

The design of this chute has been highly refined to ensure you can get your job done safely, simply and efficiently.

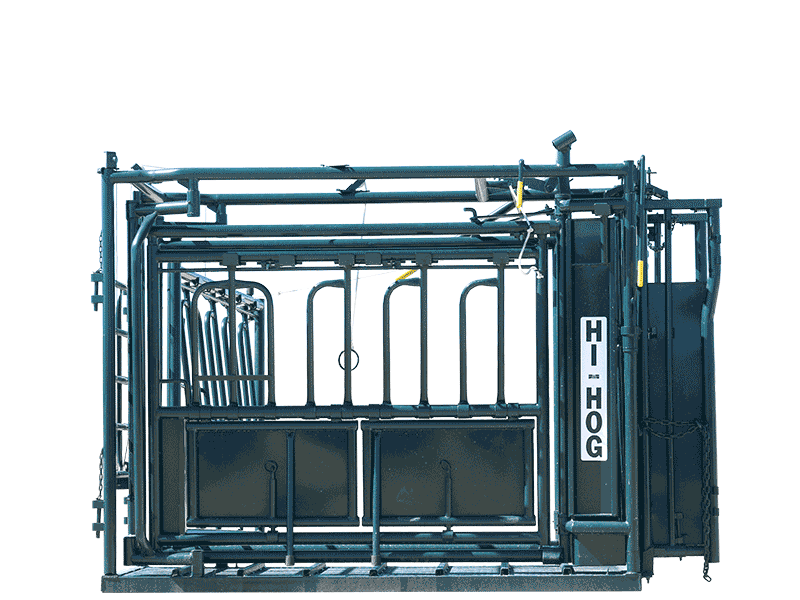

Hi-Hog Manual Cattle Squeeze Chute with Self Catch Headgate

Hi-Hog's Parallel Axis Cattle Squeeze Chute with Self-Catch head gate


Operator Safety

Hi-Hog's Squeeze Chutes include safety features that do not interfere with the Squeezes operation. Cattle can be unpredictable so we have included a number of safety features to help keep both you and your livestock safe.

  • Horned cattle can lift a gravity latch as easily as you. That’s why all of Hi-Hog’s gravity latches have a solid horn guard to protect them against accidental animal contact
  • Similarly, the spring-loaded self-catch head gate latches are also protected by horn guards to ensure your livestock won’t release themselves
  • Large livestock can exert a great deal of pressure on the side exit gates of a squeeze chute. So much pressure that they have been known to distort inferior chutes causing the latches to fail and the frames to bend. Hi-Hog, on the other hand, uses large integrated hinges on all major pivot points. Additionally, Hi-Hog includes gate guides to ensure the side exit gates cannot be distorted and popped out of their latched positions
  • Large livestock can also sometimes give a squeeze chute a good shake which can accidentally cause a gravity latch to bounce open (even with a heavy chute like Hi-Hog’s). With this in mind, Hi-Hog has added an additional slide latch to both the side release gates and the lift-up foot access gates.
  • For those who use them, Hi-Hog has included three back-up bar slots in the rear drop down body access panel
  • For your security, Hi-Hog uses two offset ratchets to provide precise and effortless squeeze control, while also ensuring one of the ratchets is always securely engaged. The dual ratchet allows for continuous width adjustments from 32” down to 11.5”
  • Hi-Hog’s reliable self-catch head gate uses separate front and rear latches to ensure your livestock cannot trigger the head gate to release when they contact the head gate and engage the rear latch.
  • The rear tail gate locks automatically in both the raised and lowered position

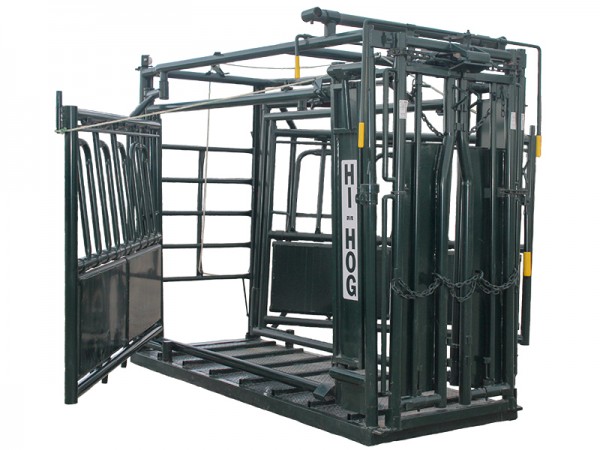

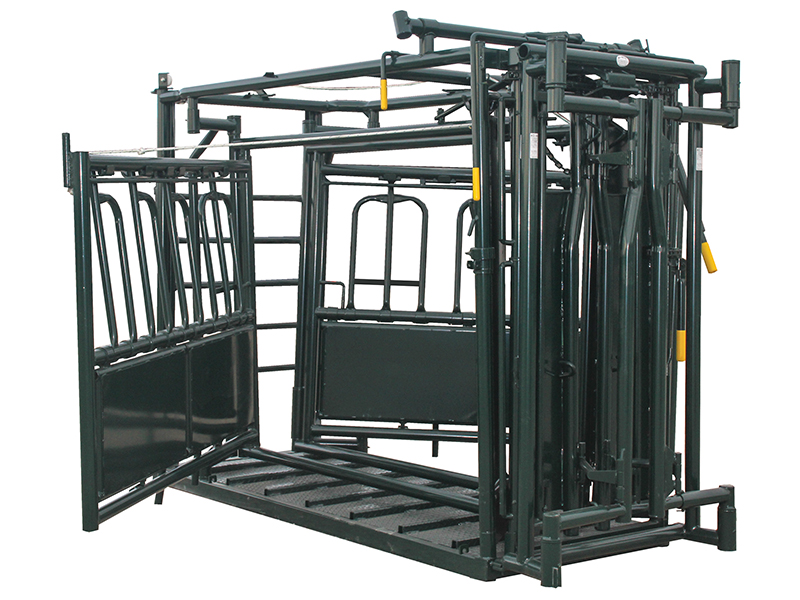

A cattle squeeze chute for the safe handling of cattle in veterinary care

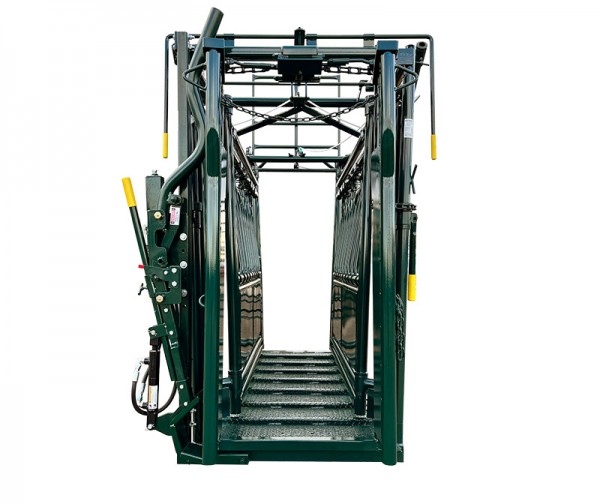

WIDE OPEN CHUTE PASSAGE WITH THE HEAD HOLDER AND HEADGATE


Self-catch Headgate and Head Holder open to the full width of the squeeze chute

Ask an expert about Hi-Hog's manual cattle squeeze chute

Flexible design

Hi-Hog’s parallel axis squeeze chute provides you with flexibility to set-up, and operate the chute, the way you want to operate it.

  • The squeeze controls can be easily moved from one side of the chute to the other, for left hand or right hand operation. Use your Hi-Hog chute on multiple pastures or share it with friends and neighbors. And if you ever want to upgrade to Hi-Hog’s hydraulic squeeze chute, you will appreciate that you will not be selling to a limited market.
  • Because both side exits can be operated from either side of the chute, you can efficiently sort out of your chute in three directions; left side exit, right side exit, or straight through the head gate. With Hi-Hog’s parallel axis chute you have complete flexibility to process and sort your livestock.
  • In most situations, Hi-Hog’s self-catch head gate can be run all day in the standard factory settings. If you are running calves or large bulls however you can quickly re-set the head gate for smaller or larger necks with the spring-loaded head gate adjustment pins. Note: If your head gate includes Hi-Hog’s neck extender be sure to match the pin positions of the neck extender to those used on the head gate.

 Ask an expert about Hi-Hog's manual cattle squeeze chute



High Quality Materials

Superior quality parts for a superior experience, year after year.

  • Heavy duty, solid welded squeeze frame. Compare dollars per pound to appreciate the build value of a Hi-Hog chute
  • Large, integrated heavy duty hinge collars that will not bend under animal pressure
  • All primary hinge points include grease fittings and are greased with premium arctic grade grease to ensure smooth operation, year after year
  • All of the main controls include high visibility, high-grip handles for quick confident operation
  • Premium grade, 3/8” diameter, all-weather, double braided control ropes
  • Heavy Duty, ¼” restraint chain
  • Custom tooled fluid Tivar™ sheaves
  • Durable polyester powder coat paint finish

Ask an expert about Hi-Hog's manual cattle squeeze chute

Future Ready

  • The squeeze floor comes with pre-drilled holes to make it easy to add a sternum bar to your chute.
  • You can easily add a Hi-Hog neck extender to your standard parallel axis squeeze chute with self-catch head gate, as it includes the mounting collars already installed.
  • The squeeze also includes built-in lifting points so you can easily make your squeeze chute portable with the addition of Hi-Hog’s cattle squeeze chute trailer.



Hi Hog Manual Cattle Squeeze Chute on Squeeze Chute Trailer

Mobile Hi-Hog squeeze chute on trailer

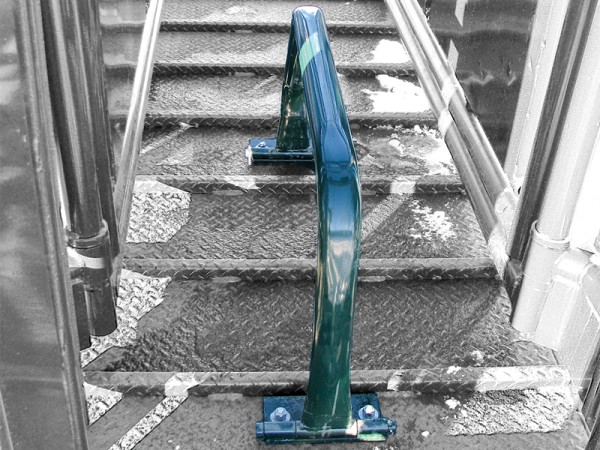

Hi-Hog Manual Cattle Squeeze Chute with sternum bar

Hi-Hog cattle squeeze chute with sternum bar

Parallel Axis Squeeze Chute complete with Neck Extender

Hi-Hog’s neck extender is linked directly to the self-catch head gate which allows the neck extender to be activated by the animal’s shoulders at the same time the animal contacts the self-catch head gate. This minimizes the risk of stressing or injuring livestock while allowing the animal to catch itself without a handler at the head gate.

Hi Hog manual cattle squeeze chute with neck extender

Hi-Hog cattle squeeze chute with self-catch head gate and neck extender


When the self-catch head gate is pushed into the chute to catch the next animal, the vertical bars of the neck extender are also pivoted back to lie safely beside the vertical bars of the head gate.


When the animal contacts the head gate with its shoulders, its head will already be past the neck extender bars. As the animal pushes the head gate forward with its shoulders, the neck extender will, through the linkages, extend away from the head gate to create a large, 8.5” wide, safe zone for needle injections. When the head gate locks, so too does the neck extender.


Note: When setting the width of the neck extender ensure that it is set to the same settings as the self-catch head gate.


Note: The self-catch head gate will not swing fully into the chute when the neck extender is attached. If required the neck extender can be quickly detached from the head gate, by simply popping the pins out of the linkage collars, which will allow the head gate to swing fully into the chute.

Ask an expert about Hi-Hog's manual cattle squeeze chute

Specifications

Parallel Axis Squeeze Chute

  • Item Number: 1550
  • Outside Length: 108"
  • Inside Length: 96"
  • Outside Height: 85"
  • Inside Vertical Clearance: 72 1/2"
  • Base Width: 40"
  • Outside Width including handles: 58"
  • Inside Width - squeeze at full width: 32"
  • Inside Width - squeeze at narrow width: 12 1/2"
  • Weight: 1,702 lbs

Parallel Axis Squeeze Chute with Neck Extender

  • Item Number: 1551
  • Outside Length: 120"
  • Inside Length: 96"
  • Outside Height: 85"
  • Inside Vertical Clearance: 72 1/2"
  • Base Width: 40"
  • Outside Width including handles: 58"
  • Inside Width - squeeze at full width: 32"
  • Inside Width - squeeze at narrow width: 12 1/2"
  • Weight: 1,875 lbs

PARALLEL AXIS SQUEEZE CHUTE WITH #107 MANUAL HEADGATE



  • Item Number: 1571
  • Outside Length: 108"

  •

    Inside Length: 96"
  • Outside Height: 85"

  • Inside Vertical Clearance: 72 1/2"
  • Base Width: 40"

  • Outside Width including handles: 105"
  • Inside Width - squeeze at full width: 32"

  • Inside Width - squeeze at narrow width: 12 1/2"
  • Weight: 1,840 lbs.
  • 2024 Model  comes with #1535 Head Holder Brackets Mounted

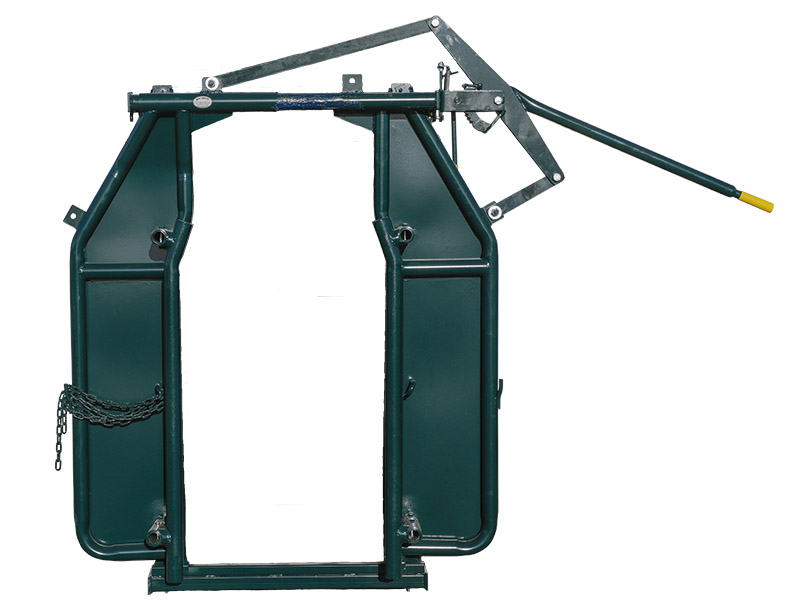

A headgate for capturing cattle

MOUNTING BRACKETS FOR THE #1525 HEAD HOLDER ARE STANDARD ON 2024 MANUAL HEADGATES

Customer Reviews:

I am over 60 years old and I wouldn’t be without my Hi-Hog parallel axis squeeze chute.

Safety is paramount and the Hi-Hog squeeze is the only squeeze I feel comfortable using. The adjustments on most squeeze chutes are so cumbersome you never use them; however, the Hi-Hog squeeze adjusts easily, even with my arthritic hands.

It is exceptionally user friendly for both me and my animals. I don’t have to fight to get my big pregnant cows into the extra high, extra wide chute for their pre-calving vaccinations.

I’m not sure who loves this chute more; me, my cattle, or my vet! In my opinion, you simply cannot get better value for the money


Elizabeth May, May Meadows Farms, Hawkstone, ON



Anyone who has ever helped me work cattle has been impressed with my Hi-Hog squeeze chute. I can handle my biggest bulls with ease and also head gate my baby calves for ear tagging. You’ve got plenty of access for any procedure.

I’ve had my Hi-Hog squeeze for several years now and the only time I’ve ever been tempted by another squeeze was when I saw the latest Hi-Hog squeeze.


Leon Steffen Burdette, KS

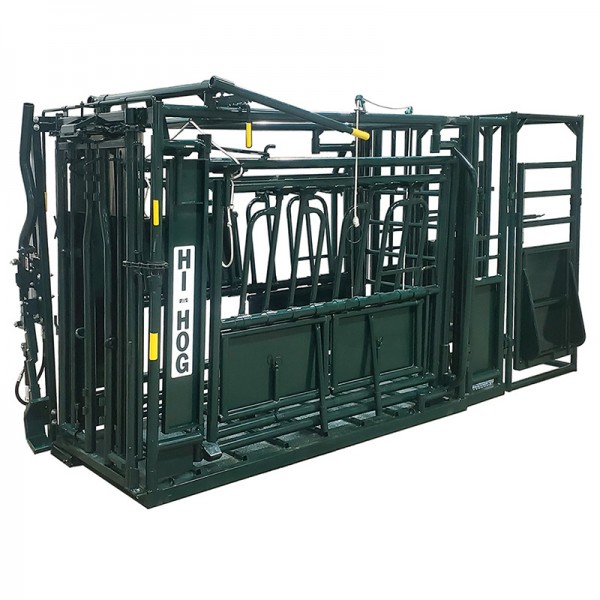

We’ve had the Hi-Hog beef cattle head gate and chute with preg-check cage (manual squeeze chute and palpation cage) for the past 12 years. It is the best system, by far, for handling our Red & Black Angus beef cattle and calves.

We use it for everything from vaccines and worming to A.I. Breeding and Preg-Checks. For calves it adjusts easily and quickly. The doors work quickly and adjust easily. It can be maintained with minimal effort and is built to last.

Our vet really appreciates the preg-check cage (palpation cage). This system is a time saver and safe for the cows and their people. Best investment we made!


Marie VanDeMark & Jeff Myers, Ice Brook Farm, Ithaca, NY

Ask an expert about Hi-Hog's manual cattle squeeze chute

Find your Hi-Hog Dealer



Why Should a Rancher Buy a Manual Parallel Axis Cattle Squeeze Chute From Hi-Hog?

A Manual Parallel Axis Cattle Squeeze Chute is a key piece of equipment for any rancher involved in handling cattle. Hi-Hog is known for the quality and durability of its products, with 50 years of manufacturing experience, we make equipment that can withstand the rigors of daily use. Our Manual Parallel Axis Cattle Squeeze Chute offers several advantages that make it an excellent choice for ranchers.

Quality and Durability

Hi-Hog is known for the quality and durability of its livestock handling equipment, and the Manual Parallel Axis Cattle Squeeze Chute is no exception. This chute is built to withstand the challenge of daily use on the ranch, ensuring that it will provide reliable service for many years to come, with the absolute minimum of upkeep. Ranchers can trust Hi-Hog's reputation for quality and durability when purchasing this chute.

Ease of Use

Despite being a manual chute, the Parallel Axis Cattle Squeeze Chute from Hi-Hog is designed with ease of use in mind. The parallel axis design allows for smooth and efficient operation, making it easy for ranchers to handle cattle of all sizes. The chute is also equipped with Hi-Hog's Self-Catching Manual Headgate that make it simple to operate even for a single person.

Safety Features

Hi-Hog's Manual Parallel Axis Cattle Squeeze Chute is designed with safety in mind. The chute features sturdy construction with secure latches on all it’s doors and access panels to ensure that cattle are safely contained during handling. Additionally, the chute is designed to minimize stress on the animals, with sound dampeners throughout, reducing the risk of injury and stress to both cattle and handlers.

A Hi-Hog Cattle Squeeze Chute design for the safe confinement of cattle for veterinarian care.

#1550 MANUAL SQUEEZE CHUTE WITH #1536 RIGHT MOUNTED HEAD HOLDER #1537-20 - 20" REAR SQUEEZE CHUTE EXTENSION and #1560 ADJUSTABLE PALPATION CAGE

Versatility

The Manual Parallel Axis Cattle Squeeze Chute from Hi-Hog is a versatile piece of equipment that can be used for a variety of purposes. Whether ranchers need to perform routine tasks such as vaccinations and ear tagging or more complex procedures such as pregnancy checking and surgery, the chute is up to the task. Its adjustable features and unlimited access allow for different cattle sizes and handling requirements.

Cost-Effectiveness

Despite its high quality and features, the Manual Parallel Axis Cattle Squeeze Chute from Hi-Hog is a cost-effective option for ranchers. Compared to other chutes on the market, Hi-Hog's chute offers excellent value for money, pound per dollar, making it a wise investment for ranchers looking to improve their handling facilities without breaking the bank.

Alternate Terms:

  1. Cattle Squeeze Chute: cattle crush, cattle crate
  2. Head Gate: head bale, head stanchion
  3. Neck Extender: neck restraint, head restraint, neck stretcher, head holder
  4. Cattle Handling: animal husbandry, cattle processing, cattle facilities



The videos below show an old 2009 version of Hi-Hog's PA squeeze chute
