Hi-Hog offers a wide range of alley components to provide unmatched flexibility in creating a cattle handling system that will meet your ranches individual needs. This overview will introduce you to the individual alley types. For a full description of any of the alley types visit the dedicated web page description.

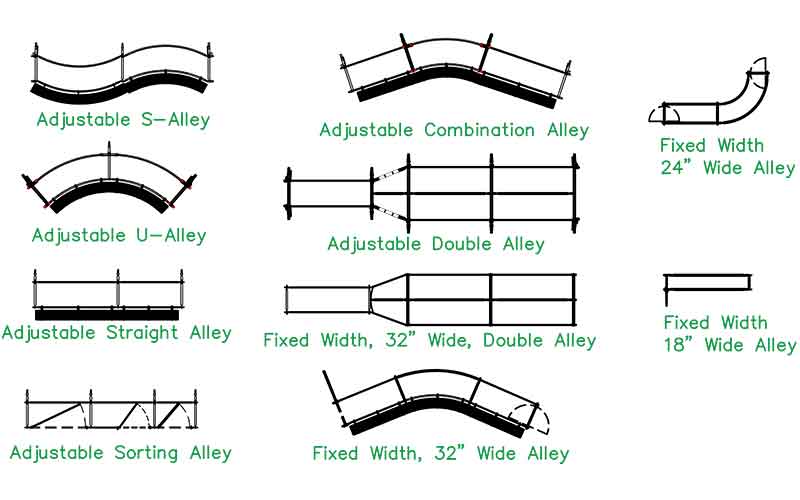

Hi-Hog's basic alley styles are:
- Adjustable width S-Alley
- Adjustable width U-Alley
- Adjustable width Straight Alley
- Adjustable width sorting Alley
- Adjustable width Combination Alley
- Double Alleys
- 32" wide, fixed width Cattle Alley
- 24" wide, fixed width Steer Alley
- 18" wide, fixed width Calf Alley

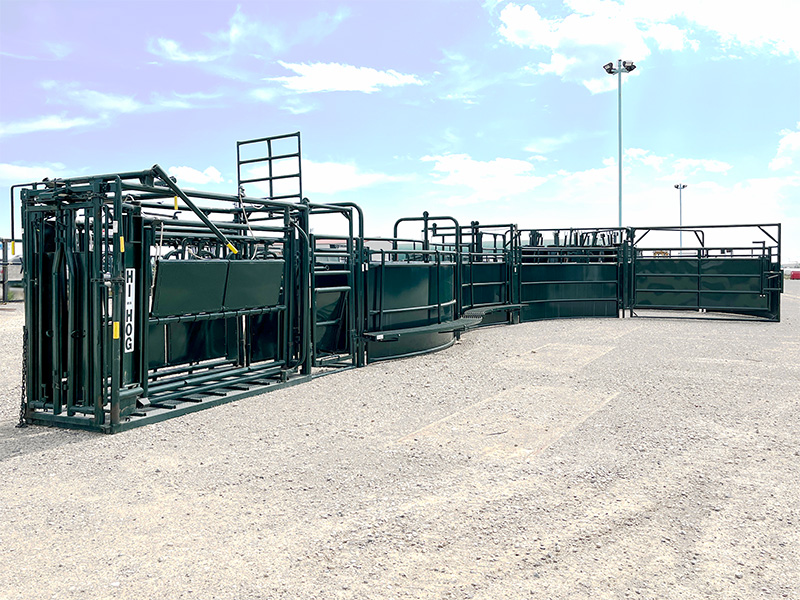

This is Hi-Hog's most popular cattle working alley. The alley spreaders are laid out in a straight line while the alley panels are curved. The first alley section is approximately 11' long. Additional alley sections will extend the alley length by 10'. This alley can be set up on uneven ground.
The adjustable U-Alley spreaders are set up in a curve with a diameter of roughly 19.5 feet. For best results the U-alley should be set up on a level surface.
The adjustable S-Alley spreaders are set up in a straight line and our straight alley panels are pinned to the S-Alley spreaders. This alley can be set up on uneven ground.
The adjustable sorting alley creates a straight alley section that provides a side exit for diverting animals out of the alley or into another alley. This alley can be set up on uneven ground.
The Adjustable U-Alley to S-Alley spreaders allow both the adjustable Straight alley and S-Alley to be combined with an adjustable U-Alley. This gives you excellent flexibility to create custom alleys that fit your individual requirements, all with standard stock products. All U-Alley sections should be set up on a level surface.
Hi-Hog offers both an adjustable and fixed width, double alley solution. These spreaders use the same connectors as with all our other alley spreaders to allow you to transition from a double alley to any of our single file alleys.
Hi-Hog offers a number of non-adjustable alley spreaders that can be combined with any of our alley panels to create a non-adjustable alley.
The 24" wide, fixed width alley spreaders are most commonly combined with Hi-Hog's standard stock 5' high panels to create a steer alley in Hi-Hog rodeo arena designs.
The calf alley is a special alley which is primarily used to feed Hi-Hog's calf tipping table. The alley spreaders and panels are designed specifically for handling calves.

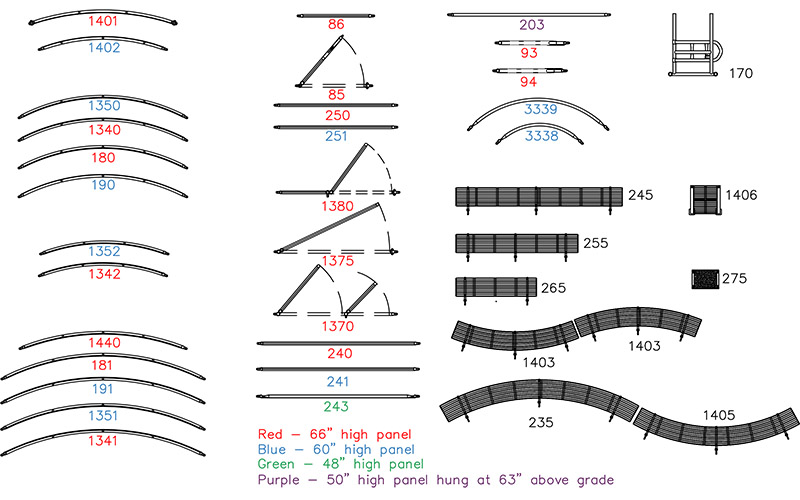

Working Alley Parts

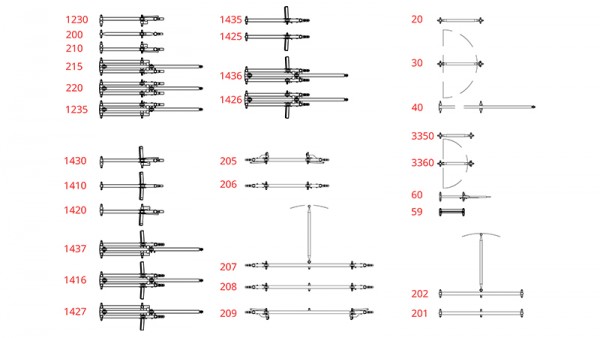

All of the above alleys are made with some combination of working alley panels, walkways, and alley spreaders.
